WDA150KAS

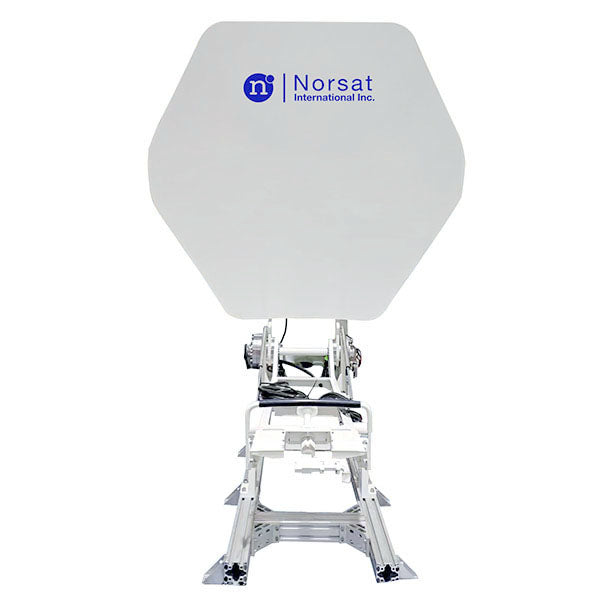

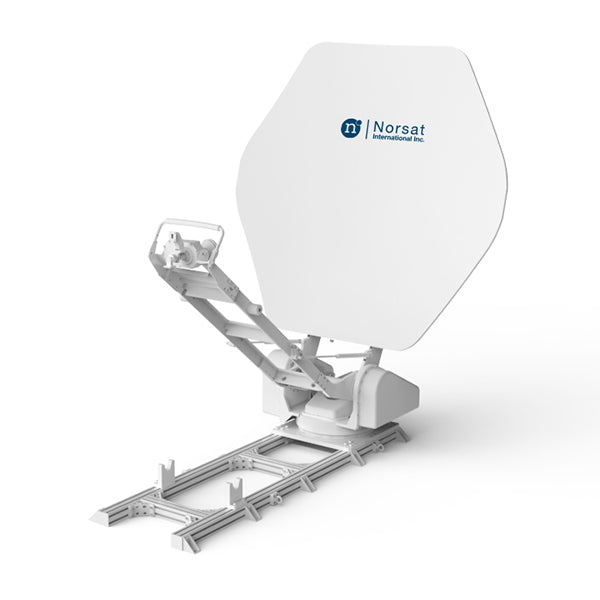

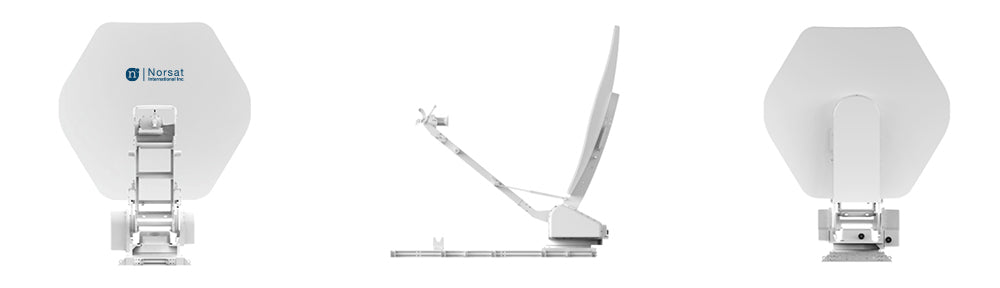

WAYFARER 1.5m Ka-Band Driveaway Antenna - Single Offset
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 1.5m |
| antenna category | Drive Away |
| band | Ka-Band |
| number of onboard LOs | Single-Band |
| reflector material | Carbon fiber |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Single Offset |
| axis ratio | ≤ 1.0 dB |
| azimuth angle | ± 200° |
| azimuth velocity | 0.1° /S ～3° /S |
| elevation angle | 10° - 85° |
| elevation veolcity | 0.1° /S ～3° /S |
| initial auto acquisition time | ≤ 3min |
| polarization | Circular |
| polarization range | / |
| sidelobe | -14 dB（first side lobe） |
| starway | Beacon +DVB to star |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | 85 dB |
| port isolation Tx-Rx | 85 dB |
| power capacity | 100 W |
| Rx frequency | 17.7 - 21.2 GHz |
| rx gain | ≥47.3+20lg(f/20)dBi |
| Rx interface | WR42 |
| Rx VSWR | ≤ 1.4: 1 |
| Tx frequency | 27.5 - 31.0 GHz |
| tx gain | ≥50.8+20lg(f/30)dBi |
| Tx interface | WR28 |
| tx rx isolation port isolation | ≥ 40 dB |
| Tx VSWR | ≤ 1.3: 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 100~240VAC, 50/60Hz, ≤800W (excluding BUC at windless condition) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| controller type | Standard 19 "1U case |
| positioning mode | GPS |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95% (20℃) |
| IP rating | IP 65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -50 °C to +70°C |
| windspeed operational | ≤20m/s |
| windspeed survival | ≤25m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| ACU size | Standard 19 "1U case |
| color | White |
| default cable (included) | Power supply, RF cable and Communication Cable |
| default cable length | 10m |
| product weight | ≤ 130 kg (excluding power amplifier, LNB, packaging and accessories, etc.) |
| RMS | 0.3dB |
