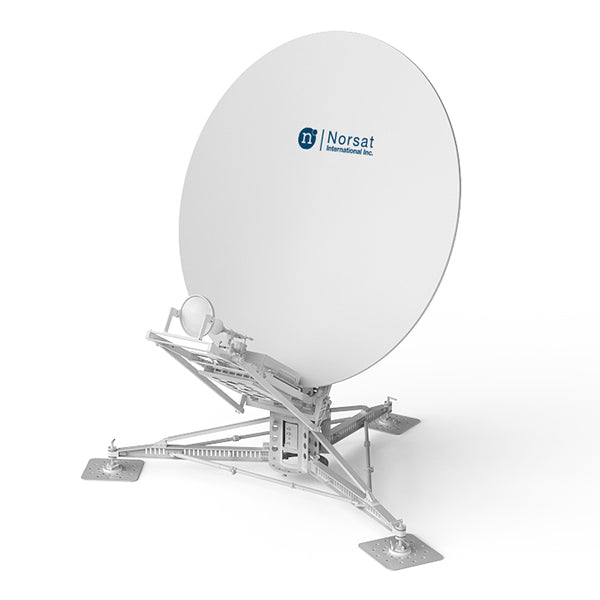

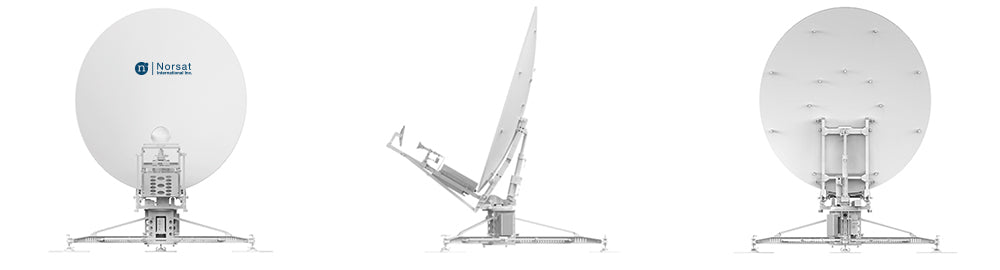

WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset

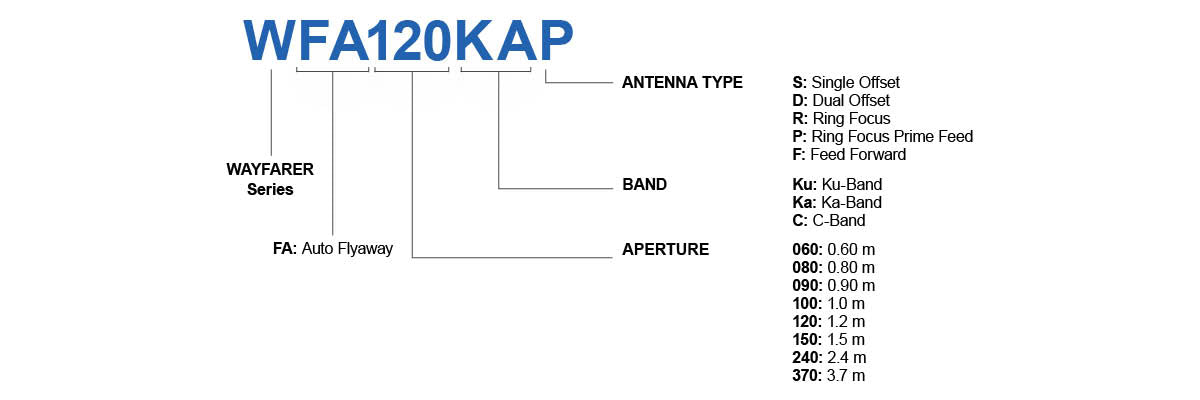

WFA240CD

WAYFARER 2.4m C-Band Auto Flyaway Antenna - Dual Offset

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
acquisition and tracking Automatic
antenna aperture 2.4m
antenna category Flyaway
band C-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Dual Offset
azimuth angle ± 200°
azimuth velocity 0.1° /S ～3° /S
cross polarization isolation ≥30 dB
elevation angle 5° - 85°
elevation veolcity 0.1° /S ～1° /S
initial auto acquisition time ≤ 3 min
polarization Linear
polarization range ± 95°
polarization velocity 0.1°/s~3 °/s
sidelobe First sidelobe ≤ -14 dB
RF SPECIFICATIONS
port isolation Rx-Tx 85 dB
port isolation Tx-Rx 40 dB
power capacity 100 W
Rx frequency 3.625 - 4.20 GHz
rx gain ≥ 37.3dBi+20lg(f/3.9GHz)dBi
Rx interface WR229
Rx VSWR ≤ 1.5：1
Tx frequency 5.85 - 6.425 GHz
tx gain ≥ 41.2dBi+20lg(f/6.3GHz)dBi
Tx interface WR137
Tx VSWR ≤ 1.5：1
ELECTRICAL SPECIFICATIONS
power supply 220VAC 50Hz, ≤ 150W (excluding BUC, windless condition)
INTERFACE SPECIFICATIONS
positioning mode Beacon/DVB carrier
ENVIRONMENTAL SPECIFICATIONS
humidity 95% (20℃)
IP rating IP 65
temperature operational -40°C to +60°C
temperature storage -50 °C to +70°C
windspeed operational ≤ 11m/s
windspeed survival ≤ 18m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Power Supply and RF cable
default cable length 10m
product weight ≤ 240 kg (excluding BUC, LNB, packaging and accessories)
RMS 0.3dB
