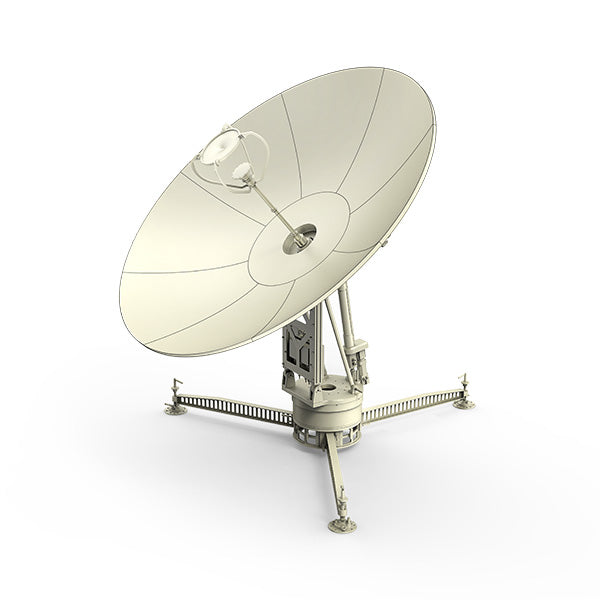

WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus
WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus

WFA240CR

WAYFARER 2.4m C-Band Auto Flyaway Antenna - Ring Focus

Flyaway Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 2.4m
antenna category Auto Flyaway
band C-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Ring Focus
azimuth angle ±220°
azimuth velocity 0.1°/s～3°/s
blockage recovery time ≤1min
cross polarization isolation ≥30 dB
elevation angle 0° - 90°
elevation veolcity 0.1°/s～1°/s
initial auto acquisition time ≤3min
polarization Linear
polarization range ±90°
polarization velocity 0.1°/s～3°/s
sidelobe ≤-14dB
RF SPECIFICATIONS
port isolation Rx-Tx ≥85dB
port isolation Tx-Rx ≥40dB
power capacity ≤500W
Rx frequency 3.40 - 4.20 GHz
rx gain 37+20lg(f/3.8)
Rx interface WR229
Rx VSWR ≤ 1.50 : 1
Tx frequency 5.85 - 6.725 GHz
tx gain 41+20lg(f/6.3)
Tx interface WR137
Tx VSWR ≤ 1.50 : 1
ELECTRICAL SPECIFICATIONS
power supply 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 95%（20°C）
IP rating IP65
temperature operational -40°C to +60°C
temperature storage -55℃ to +70℃
windspeed operational 13m/s
windspeed survival 20m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Power supply, network cable, RF Cable
default cable length 5 m
number of cases 4
packed by wood crate and aluminium shipping case
product height 5800 mm
product length 2700 mm
product weight 160 kg
product width 2700 mm
