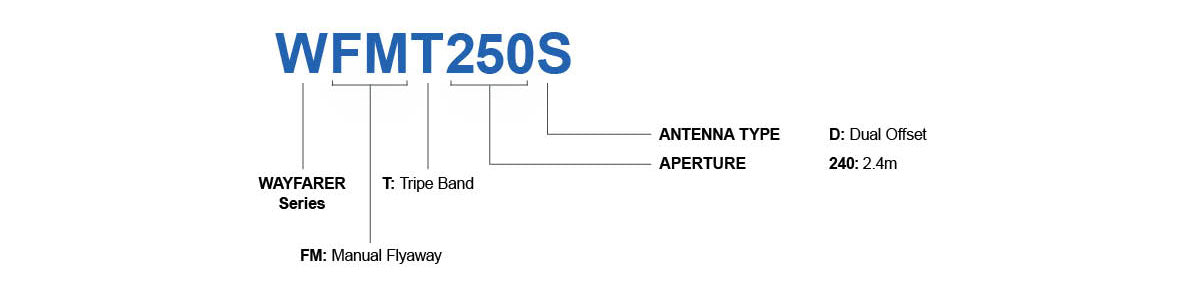

| KEY SPECIFICATIONS | |
|---|---|
| acquisition and tracking | Manual |
| antenna aperture | 2.4m |
| antenna category | Flyaway |
| band | C-Band / X-Band / Ku-Band |
| number of onboard LOs | Triple-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Dual Offset |
| cross polarization isolation | ≥30 dB |
| motion range AZ | ± 200° |
| motion range EL | 10° - 90° |
| motion range POL | ± 90° |
| polarization | Linear |
| sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | 85 dB |
| port isolation Tx-Rx | 40 dB |
| power capacity | 100 W |
| Rx frequency | 10.70 - 12.75 GHz |
| rx gain | ≥ 47.1dBi+20lg(f/12.5GHz)dBi |
| Rx interface | WR75 |
| Rx VSWR | ≤ 1.5:1 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | ≥ 48.5dBi+20lg(f/14.25GHz)dBi |
| Tx interface | WR75 |
| Tx VSWR | ≤ 1.5:1 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95% (20℃) |
| IP rating | IP65 |
| temperature operational | -40℃ - +60℃ |
| temperature storage | -50℃ - +70℃ |
| windspeed operational | ≤ 11m/s |
| windspeed survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable (included) | 10m |
| product weight | ≤ 220 kg (excluding BUC, LNB, packaging and accessories) |
