WFA240KAR

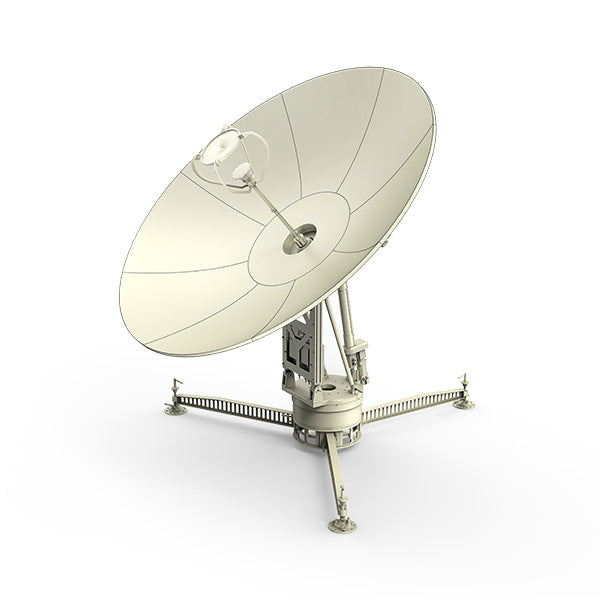

WAYFARER 2.4m Ka-Band Auto Flyaway Antenna - Ring Focus

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
antenna aperture 2.4m
antenna category Auto Flyaway
band Ka-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Ring Focus
axis ratio ≤ 1.0 dB
azimuth angle ±220°
azimuth velocity 0.1°/s～3°/s
blockage recovery time ≤1min
elevation angle 0° - 90°
elevation veolcity 0.1°/s～1°/s
initial auto acquisition time ≤3min
polarization Circular
polarization velocity 0.1°/s～3°/s
sidelobe ≤-14dB
RF SPECIFICATIONS
port isolation Rx-Tx ≥85dB
port isolation Tx-Rx ≥40dB
power capacity ≤500W
Rx frequency 17.70 - 21.20 GHz
rx gain 51.2+20lg(f/20)
Rx interface WR42
Rx VSWR ≤ 1.5 : 1
Tx frequency 29.00 - 31.00 GHz
tx gain 54.8+20lg(f/30)
Tx interface WR28
Tx VSWR ≤ 1.5 : 1
ELECTRICAL SPECIFICATIONS
power supply 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 95%（20°C）
IP rating IP65
temperature operational -40°C to +60°C
temperature storage -50°C to +70°C
windspeed operational 13m/s
windspeed survival 20m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Power supply, network cable, RF Cable
default cable length 5 m
number of cases 4
packed by wood crate and aluminium shipping case
product height 5800 mm
product length 2700 mm
product weight 145kg
product width 2700 mm
