WFA240XRX

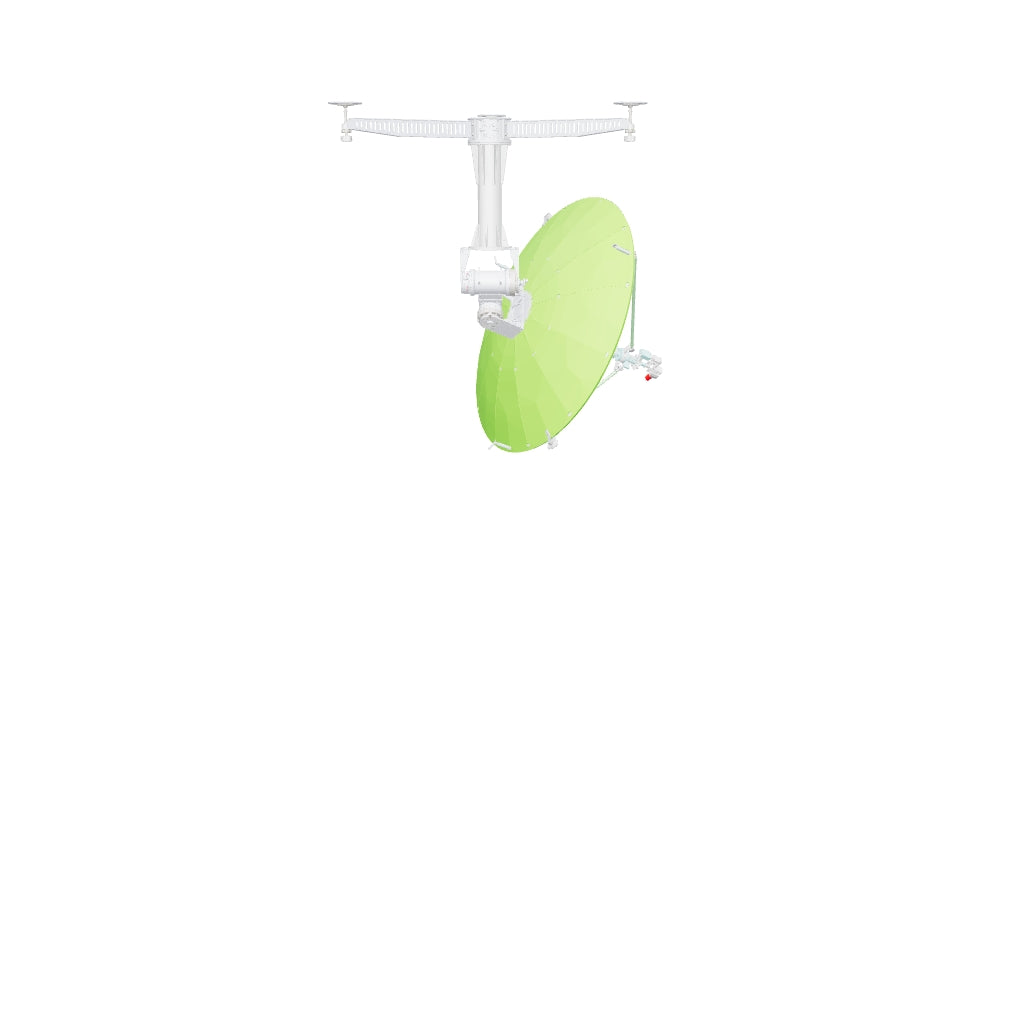

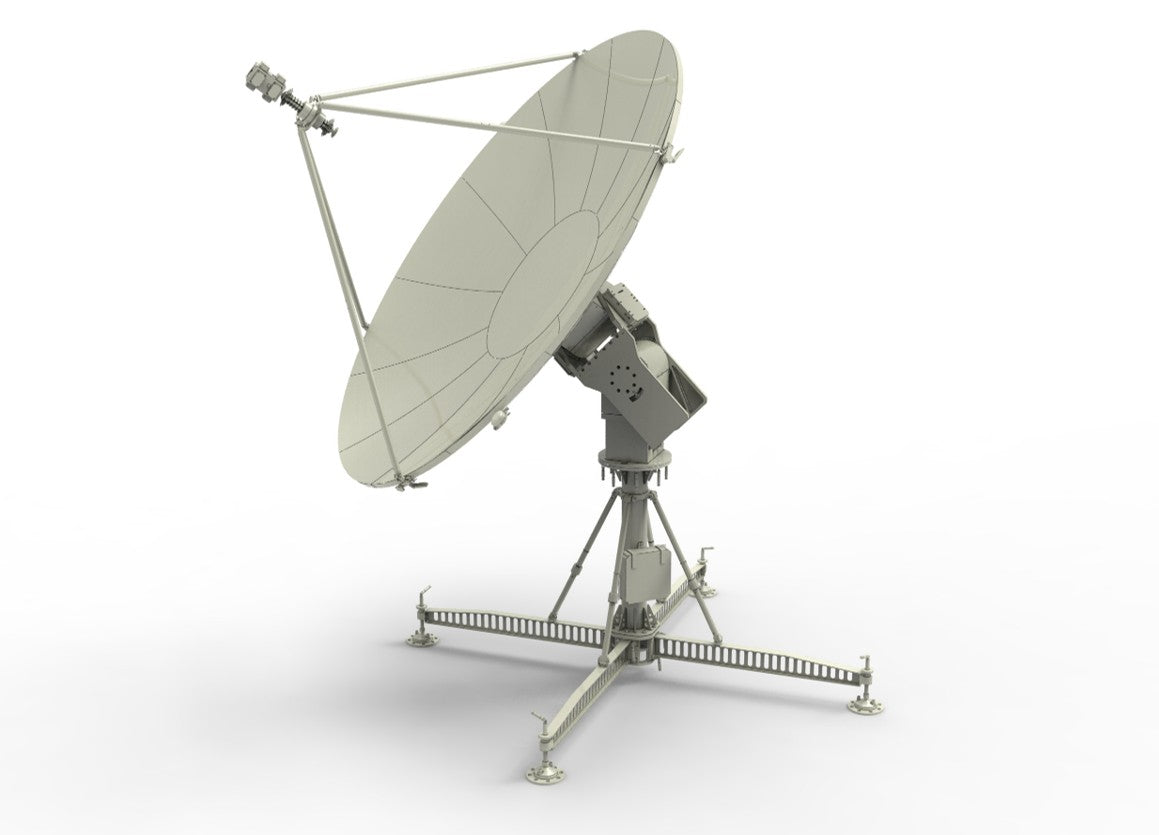

WAYFARER 2.4m X-Band X-Y Low Orbit Satellite Transportable Manual Flyaway Antenna - Ring Focus
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 2.4m |
| antenna category | Auto Flyaway |
| band | X-Band |
| number of onboard LOs | Single-Band |
| structure type | X-Y tracking |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Ring Focus |
| axis ratio | ≤ 1.0 dB |
| azimuth angle | ±90° |
| azimuth velocity | 0.1°/s～5°/s |
| blockage recovery time | ≤1min |
| elevation angle | ±90° |
| elevation veolcity | 0.1°/s～5°/s |
| initial auto acquisition time | ≤3min |
| motion range X-axis | ±90° |
| motion range Y-axis | ±90° |
| polarization | Circular |
| polarization velocity | 0.1°/s～3°/s |
| sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | ≥85dB |
| port isolation Tx-Rx | ≥40dB |
| power capacity | ≤500 W |
| Rx frequency | 7.25 - 7.75 GHz |
| rx gain | 42.8+20lg(f/7.5)dBi |
| Rx interface | WR112 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx frequency | 7.90 - 8.40 GHz |
| tx gain | 43.5+20lg(f/8.15)dBi |
| Tx interface | WR112 |
| Tx VSWR | ≤ 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95%（20°C） |
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50 °C to +70°C |
| windspeed operational | 13m/s |
| windspeed survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable (included) | Power supply, network cable, RF Cable |
| default cable length | RF cable 10m, others 5m |
| number of cases | 4 |
| packed by | wood crate and aluminium shipping case |
| product height | 2450 mm |
| product length | 2700 mm |
| product weight | 145 kg |
| product width | 2700 mm |
