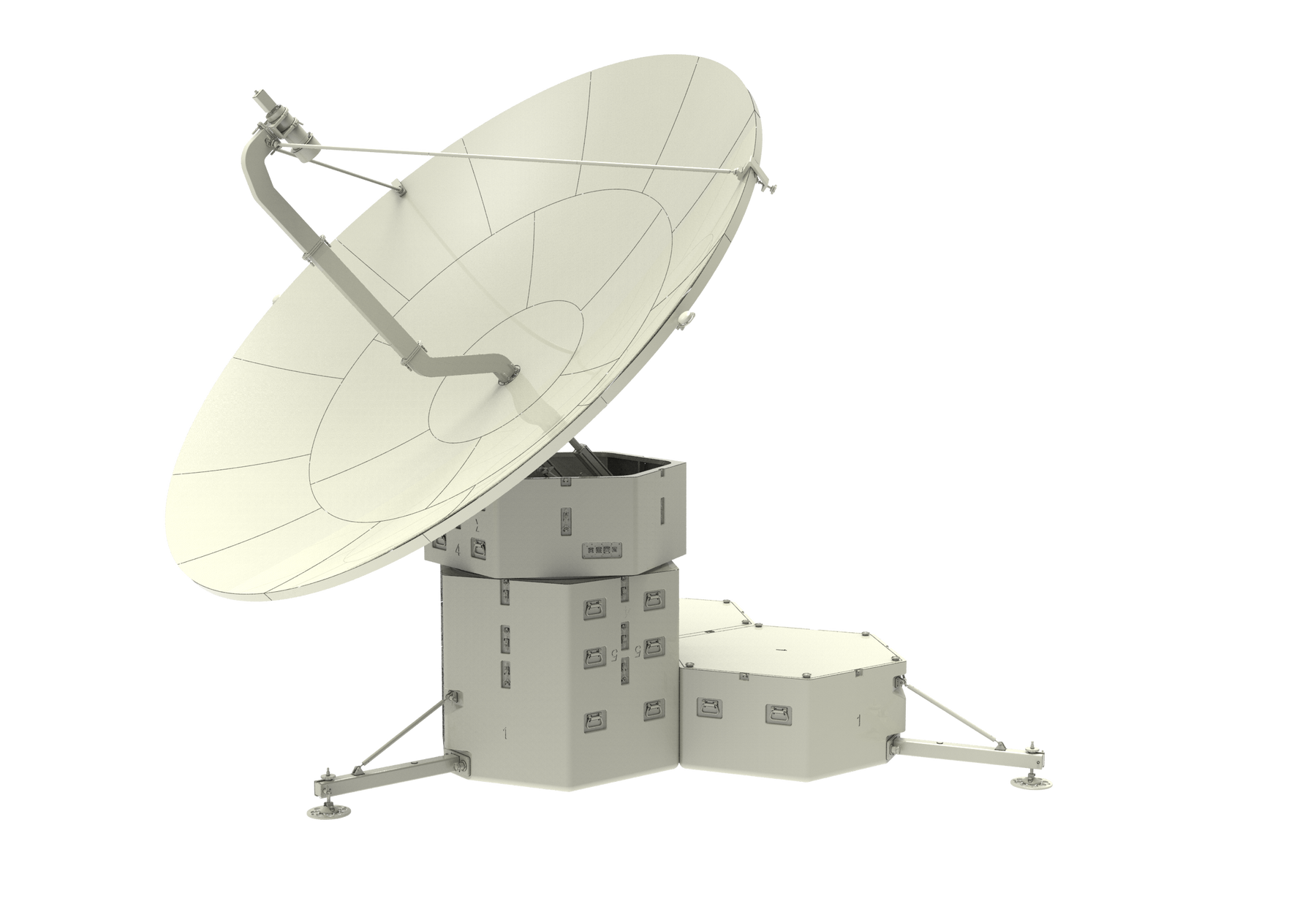

WAYFARER 3.7m Ku-Band Box Automatically Transportable Antenna - Feed Forward
WAYFARER 3.7m Ku-Band Box Automatically Transportable Antenna - Feed Forward
WAYFARER 3.7m Ku-Band Box Automatically Transportable Antenna - Feed Forward
WAYFARER 3.7m Ku-Band Box Automatically Transportable Antenna - Feed Forward

WFA370KUF

WAYFARER 3.7m Ku-Band Box Automatically Transportable Antenna - Feed Forward

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
antenna aperture 3.7m
antenna category Auto Flyaway
band Ku-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Feed Forward
azimuth angle EL＞36° AZ: ±180°；EL≤36° AZ: ±60°
azimuth velocity 0.1°/s～3°/s
blockage recovery time ≤1min
cross polarization isolation ≥30 dB
elevation angle 0° - 90°
elevation veolcity 0.1°/s～0.05°/s
initial auto acquisition time ≤3min
polarization Linear
polarization range ±90°
polarization velocity 0.1°/s～3°/s
sidelobe ≤-14dB
RF SPECIFICATIONS
port isolation Rx-Tx ≥85dB
port isolation Tx-Rx ≥40dB
power capacity ≤500W
Rx frequency 10.95 - 12.75 GHz
rx gain 50.3+20lg(f/11.85)
Rx interface WR75
Rx VSWR ≤ 1.35 : 1
Tx frequency 13.75 - 14.50 GHz
tx gain 51.8+20lg(f/14.1)
Tx interface WR75
Tx VSWR ≤ 1.35 : 1
ELECTRICAL SPECIFICATIONS
power supply 220VAC±10，50Hz±2Hz; ≤600W（No power amplifier）
ENVIRONMENTAL SPECIFICATIONS
humidity 95%（20°C）
IP rating IP65
temperature operational -40°C to +60°C
temperature storage -50°C to +70°C
windspeed operational 13m/s
windspeed survival 20m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Power supply, network cable, RF Cable
default cable length 10 m
number of cases 6
packed by wood crate and aluminium shipping case
product height 4500 mm
product length 5500 mm
product weight 610kg
product width 4200 mm
