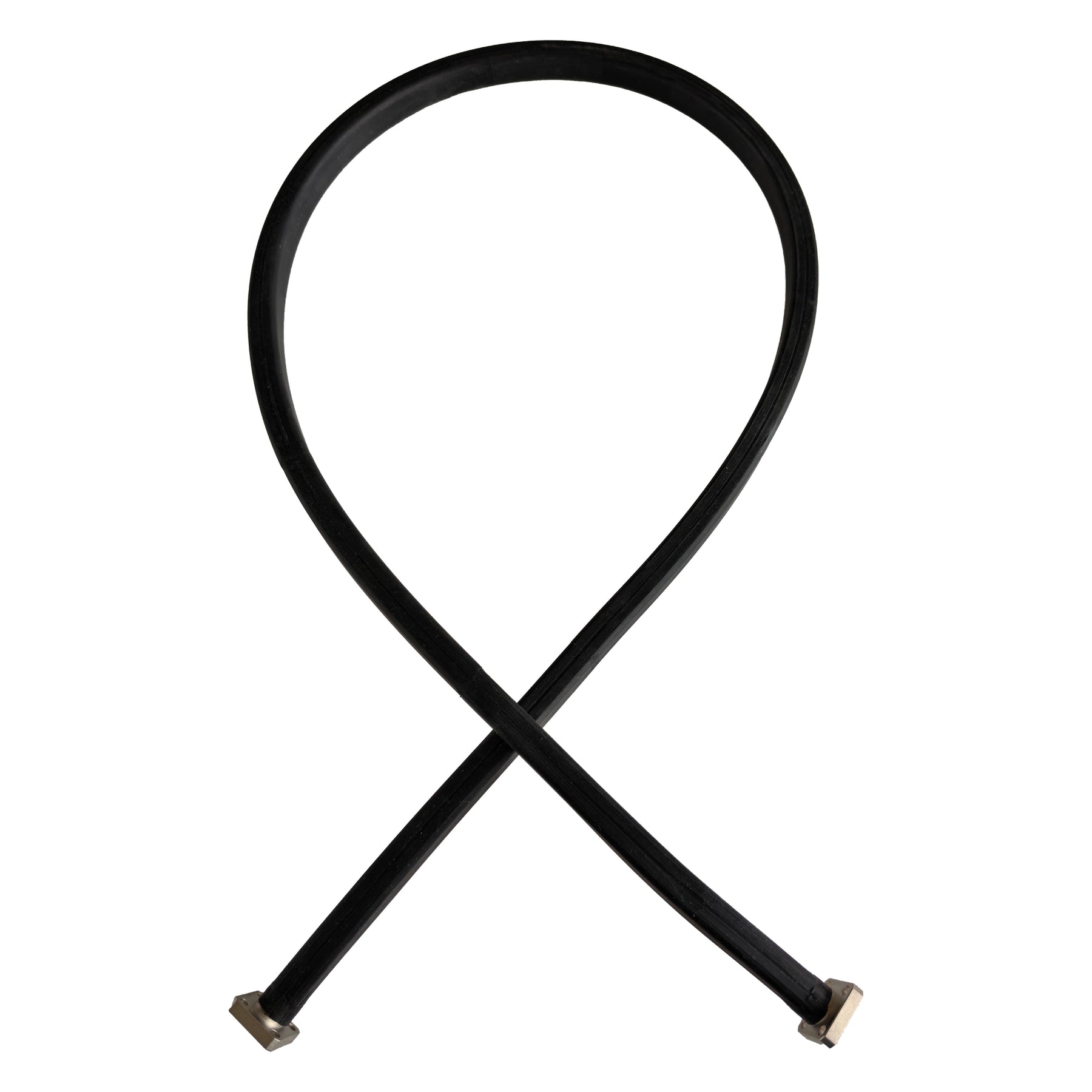

Name: WR-28 Flexible Twistable Waveguide
Brand: Norsat International Inc.
SKU: FW028PBRPBR0150
Availability: InStock

FW028PBRPBR0150

WR-28 Flexible Twistable Waveguide

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":53165868712303,"title":"WR-28 \/ PBR\/PBR \/ 150","option1":"WR-28","option2":"PBR\/PBR","option3":"150","sku":"FW028PBRPBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/PBR \/ 150","public_title":"WR-28 \/ PBR\/PBR \/ 150","options":["WR-28","PBR\/PBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868745071,"title":"WR-28 \/ PBR\/PBR \/ 300","option1":"WR-28","option2":"PBR\/PBR","option3":"300","sku":"FW028PBRPBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/PBR \/ 300","public_title":"WR-28 \/ PBR\/PBR \/ 300","options":["WR-28","PBR\/PBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868777839,"title":"WR-28 \/ PBR\/PBR \/ 600","option1":"WR-28","option2":"PBR\/PBR","option3":"600","sku":"FW028PBRPBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/PBR \/ 600","public_title":"WR-28 \/ PBR\/PBR \/ 600","options":["WR-28","PBR\/PBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868810607,"title":"WR-28 \/ PBR\/PBR \/ 900","option1":"WR-28","option2":"PBR\/PBR","option3":"900","sku":"FW028PBRPBR900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/PBR \/ 900","public_title":"WR-28 \/ PBR\/PBR \/ 900","options":["WR-28","PBR\/PBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868843375,"title":"WR-28 \/ PBR\/UBR \/ 150","option1":"WR-28","option2":"PBR\/UBR","option3":"150","sku":"FW028PBRUBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/UBR \/ 150","public_title":"WR-28 \/ PBR\/UBR \/ 150","options":["WR-28","PBR\/UBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868876143,"title":"WR-28 \/ PBR\/UBR \/ 300","option1":"WR-28","option2":"PBR\/UBR","option3":"300","sku":"FW028PBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/UBR \/ 300","public_title":"WR-28 \/ PBR\/UBR \/ 300","options":["WR-28","PBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868908911,"title":"WR-28 \/ PBR\/UBR \/ 600","option1":"WR-28","option2":"PBR\/UBR","option3":"600","sku":"FW028PBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/UBR \/ 600","public_title":"WR-28 \/ PBR\/UBR \/ 600","options":["WR-28","PBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868941679,"title":"WR-28 \/ PBR\/UBR \/ 900","option1":"WR-28","option2":"PBR\/UBR","option3":"900","sku":"FW028PBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ PBR\/UBR \/ 900","public_title":"WR-28 \/ PBR\/UBR \/ 900","options":["WR-28","PBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165868974447,"title":"WR-28 \/ UBR\/UBR \/ 150","option1":"WR-28","option2":"UBR\/UBR","option3":"150","sku":"FW028UBRUBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ UBR\/UBR \/ 150","public_title":"WR-28 \/ UBR\/UBR \/ 150","options":["WR-28","UBR\/UBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869007215,"title":"WR-28 \/ UBR\/UBR \/ 300","option1":"WR-28","option2":"UBR\/UBR","option3":"300","sku":"FW028UBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ UBR\/UBR \/ 300","public_title":"WR-28 \/ UBR\/UBR \/ 300","options":["WR-28","UBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869039983,"title":"WR-28 \/ UBR\/UBR \/ 600","option1":"WR-28","option2":"UBR\/UBR","option3":"600","sku":"FW028UBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ UBR\/UBR \/ 600","public_title":"WR-28 \/ UBR\/UBR \/ 600","options":["WR-28","UBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869072751,"title":"WR-28 \/ UBR\/UBR \/ 900","option1":"WR-28","option2":"UBR\/UBR","option3":"900","sku":"FW028UBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-28 Flexible Twistable Waveguide - WR-28 \/ UBR\/UBR \/ 900","public_title":"WR-28 \/ UBR\/UBR \/ 900","options":["WR-28","UBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
flange finish	Nickel Palted
flange material	Brass
frequency max	40 GHz
frequency min	26.5 GHz
IL db/m	2.00 dB/m
IL Typ(db)	0.3 dB
max torsion angle dynamic	230° / meter
max torsion angle static	920° / meter
min bending radius dynamic E-plane	3.07" (78 mm)
min bending radius dynamic H-plane	6.22" (158 mm)
min bending radius static E-plane	0.79" (20 mm)
min bending radius static H-plane	1.57" (40 mm)
power handling CW(W)	75 W
power handling peak(W)	22 kW
RL Typ(db)	20.83 dB
waveguide finish	Silver Plated
waveguide material	Brass

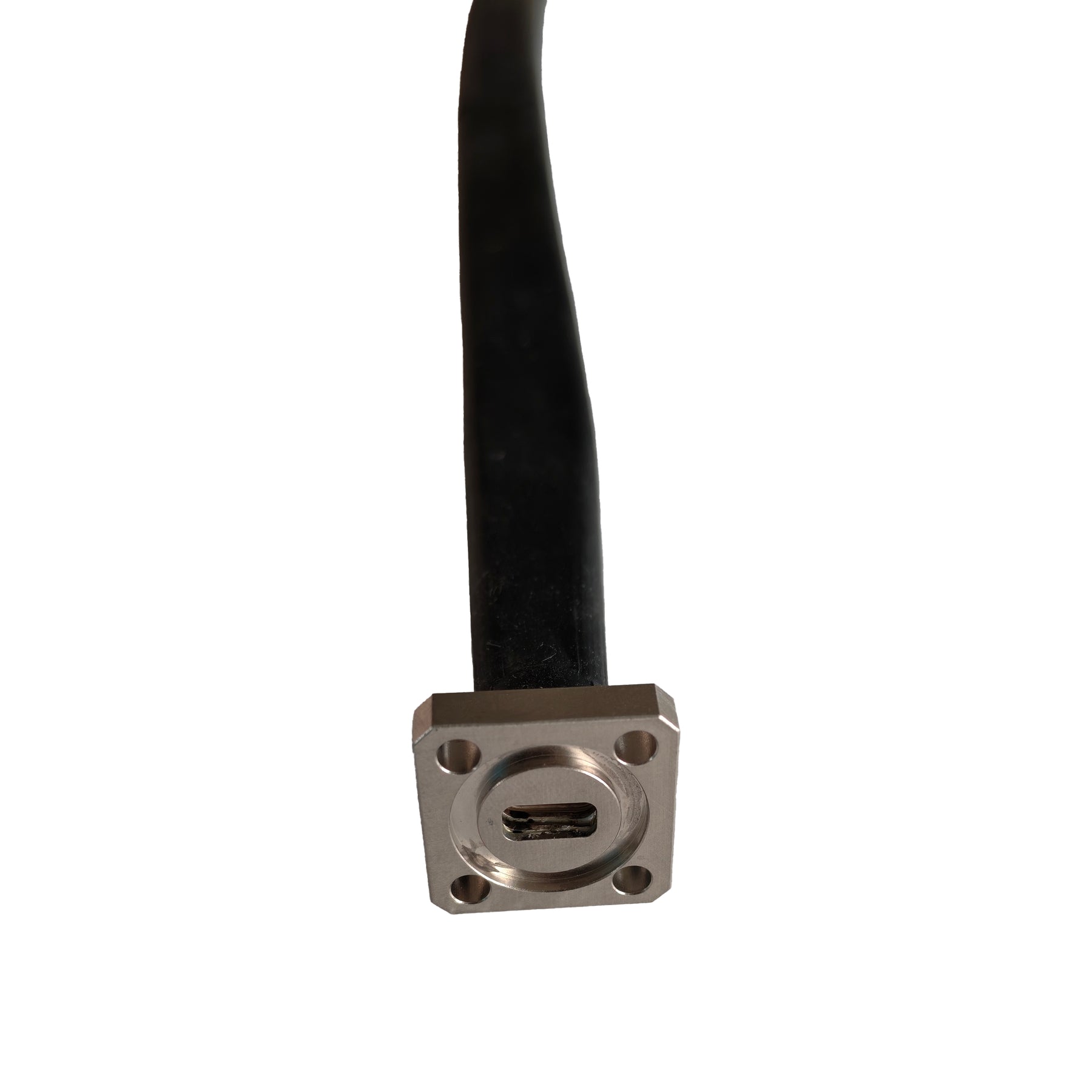

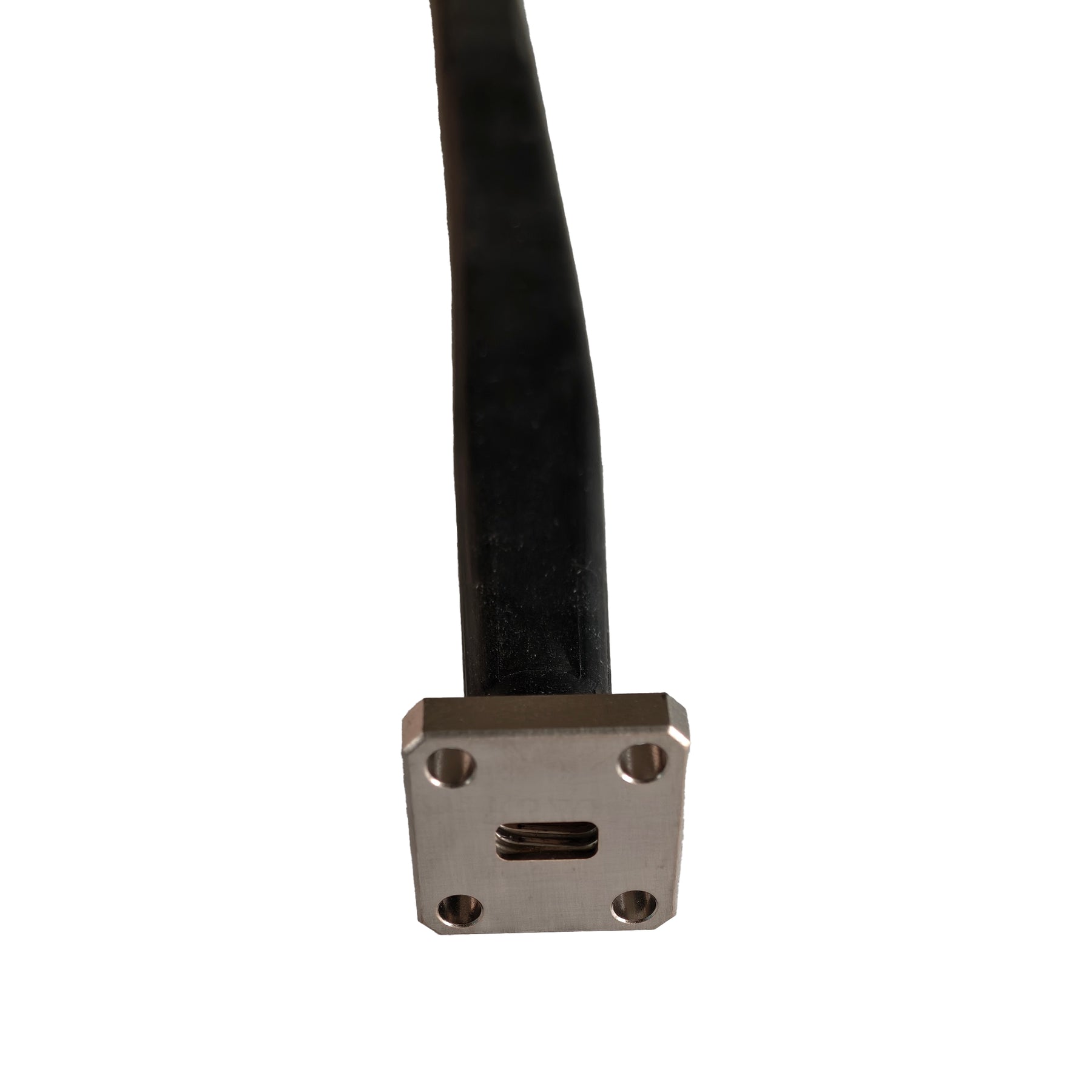

waveguide port1 flange	PBR320 Grooved
waveguide port1 product family	WR-28
waveguide port2 flange	PBR320 Grooved
waveguide port2 product family	WR-28
Product Revision	A

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40℃ - 85℃

PHYSICAL SPECIFICATIONS
carton weight	1.5 kg
flange size	PBR/PBR
jacket material	Vulcanized Silicone Rubber
length	150mm
max torsion angle	920°/m
min bend radius	20mm/E 40mm/H
product height	19.1 mm
product length	150 mm
product length tolerance	±3%
product weight	0.09kg
product width	19.1 mm
waveguide size	BJ320/WR28/WG22/R320

INFORMATION
HS Code	85177990
Country of Origin	Made in China
Ex Works	Richmond, BC, Canada
ECCN Number	Not Applicable
Warranty	1 Year
Unit Package Dimensions	-
Unit Package Weight	2.483 kg
Total Aluminium Content	Not Applicable
Aluminum Country of Smelt and Cast	Not Applicable
Total Aluminium Value	-
