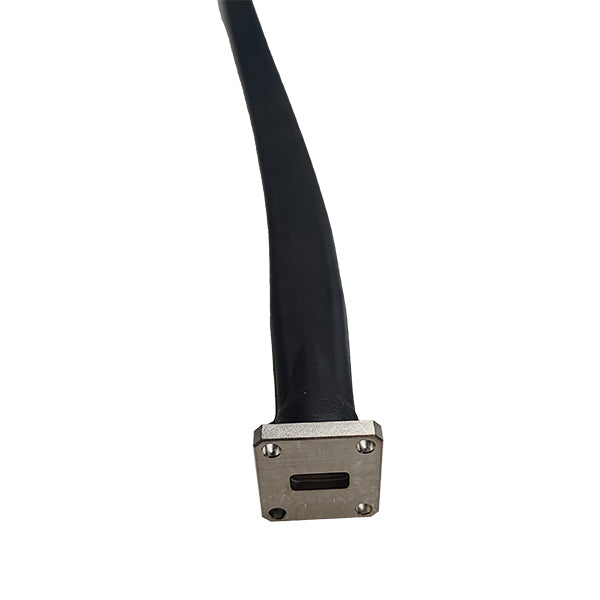

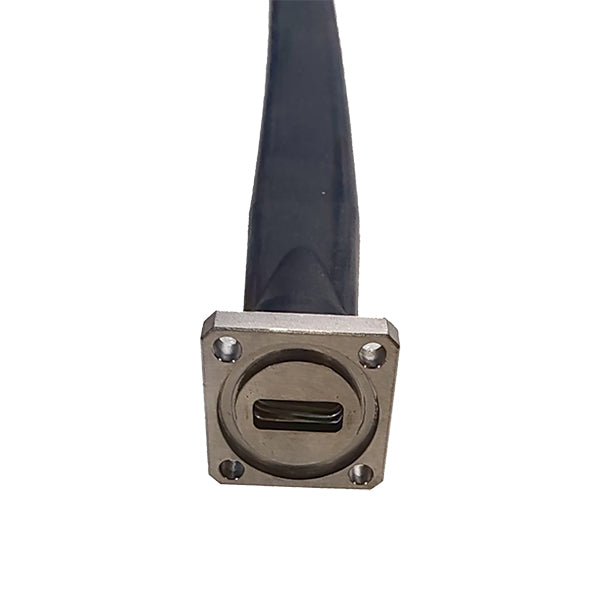

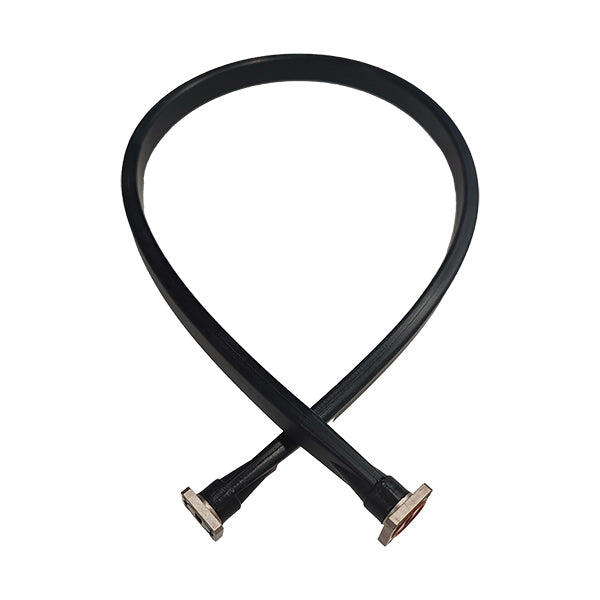

Name: WR-42 Flexible Twistable Waveguide
Brand: Norsat International Inc.
SKU: FW042PBRPBR0150
Availability: InStock

FW042PBRPBR0150

WR-42 Flexible Twistable Waveguide

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":53165869105519,"title":"WR-42 \/ PBR\/PBR \/ 150","option1":"WR-42","option2":"PBR\/PBR","option3":"150","sku":"FW042PBRPBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/PBR \/ 150","public_title":"WR-42 \/ PBR\/PBR \/ 150","options":["WR-42","PBR\/PBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869138287,"title":"WR-42 \/ PBR\/PBR \/ 300","option1":"WR-42","option2":"PBR\/PBR","option3":"300","sku":"FW042PBRPBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/PBR \/ 300","public_title":"WR-42 \/ PBR\/PBR \/ 300","options":["WR-42","PBR\/PBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869171055,"title":"WR-42 \/ PBR\/PBR \/ 600","option1":"WR-42","option2":"PBR\/PBR","option3":"600","sku":"FW042PBRPBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/PBR \/ 600","public_title":"WR-42 \/ PBR\/PBR \/ 600","options":["WR-42","PBR\/PBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869203823,"title":"WR-42 \/ PBR\/PBR \/ 900","option1":"WR-42","option2":"PBR\/PBR","option3":"900","sku":"FW042PBRPBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/PBR \/ 900","public_title":"WR-42 \/ PBR\/PBR \/ 900","options":["WR-42","PBR\/PBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869236591,"title":"WR-42 \/ PBR\/UBR \/ 150","option1":"WR-42","option2":"PBR\/UBR","option3":"150","sku":"FW042PBRUBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/UBR \/ 150","public_title":"WR-42 \/ PBR\/UBR \/ 150","options":["WR-42","PBR\/UBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869269359,"title":"WR-42 \/ PBR\/UBR \/ 300","option1":"WR-42","option2":"PBR\/UBR","option3":"300","sku":"FW042PBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/UBR \/ 300","public_title":"WR-42 \/ PBR\/UBR \/ 300","options":["WR-42","PBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869302127,"title":"WR-42 \/ PBR\/UBR \/ 600","option1":"WR-42","option2":"PBR\/UBR","option3":"600","sku":"FW042PBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/UBR \/ 600","public_title":"WR-42 \/ PBR\/UBR \/ 600","options":["WR-42","PBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869334895,"title":"WR-42 \/ PBR\/UBR \/ 900","option1":"WR-42","option2":"PBR\/UBR","option3":"900","sku":"FW042PBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ PBR\/UBR \/ 900","public_title":"WR-42 \/ PBR\/UBR \/ 900","options":["WR-42","PBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869367663,"title":"WR-42 \/ UBR\/UBR \/ 150","option1":"WR-42","option2":"UBR\/UBR","option3":"150","sku":"FW042UBRUBR0150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ UBR\/UBR \/ 150","public_title":"WR-42 \/ UBR\/UBR \/ 150","options":["WR-42","UBR\/UBR","150"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869400431,"title":"WR-42 \/ UBR\/UBR \/ 300","option1":"WR-42","option2":"UBR\/UBR","option3":"300","sku":"FW042UBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ UBR\/UBR \/ 300","public_title":"WR-42 \/ UBR\/UBR \/ 300","options":["WR-42","UBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869433199,"title":"WR-42 \/ UBR\/UBR \/ 600","option1":"WR-42","option2":"UBR\/UBR","option3":"600","sku":"FW042UBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ UBR\/UBR \/ 600","public_title":"WR-42 \/ UBR\/UBR \/ 600","options":["WR-42","UBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869465967,"title":"WR-42 \/ UBR\/UBR \/ 900","option1":"WR-42","option2":"UBR\/UBR","option3":"900","sku":"FW042UBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-42 Flexible Twistable Waveguide - WR-42 \/ UBR\/UBR \/ 900","public_title":"WR-42 \/ UBR\/UBR \/ 900","options":["WR-42","UBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
flange finish	Nickel Palted
flange material	Brass
frequency max	26.5 GHz
frequency min	17.7GHz
IL db/m	1.20 dB/m
IL Typ(db)	0.36 dB
max torsion angle dynamic	157° / meter
max torsion angle static	630° / meter
min bending radius dynamic E-plane	4.7" (120 mm)
min bending radius dynamic H-plane	9.4" (240 mm)
min bending radius static E-plane	1.2" (30 mm)
min bending radius static H-plane	2.4" (60 mm)
power handling CW(W)	100 W
power handling peak(W)	45 kW
RL Typ(db)	20.83 dB
waveguide finish	Silver Plated
waveguide material	Brass
waveguide port1 flange	PBR220 Grooved
waveguide port1 product family	WR-42
waveguide port2 flange	PBR220 Grooved
waveguide port2 product family	WR-42
Product Revision	A

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40℃ - 85℃

PHYSICAL SPECIFICATIONS
carton weight	1.5 kg
flange size	PBR/PBR
jacket material	Vulcanized Silicone Rubber
length	150mm
max torsion angle	630°/m
min bend radius	30mm/E 60mm/H
product height	22.4 mm
product length	150 mm
product length tolerance	±3%
product weight	0.11kg
product width	22.4 mm
waveguide size	BJ220/WR42/WG20/R220

INFORMATION
HS Code	85177990
Country of Origin	Made in China
Ex Works	Richmond, BC, Canada
ECCN Number	Not Applicable
Warranty	1 Year
Unit Package Dimensions	-
Unit Package Weight	2.583 kg
Total Aluminium Content	Not Applicable
Aluminum Country of Smelt and Cast	Not Applicable
Total Aluminium Value	-
