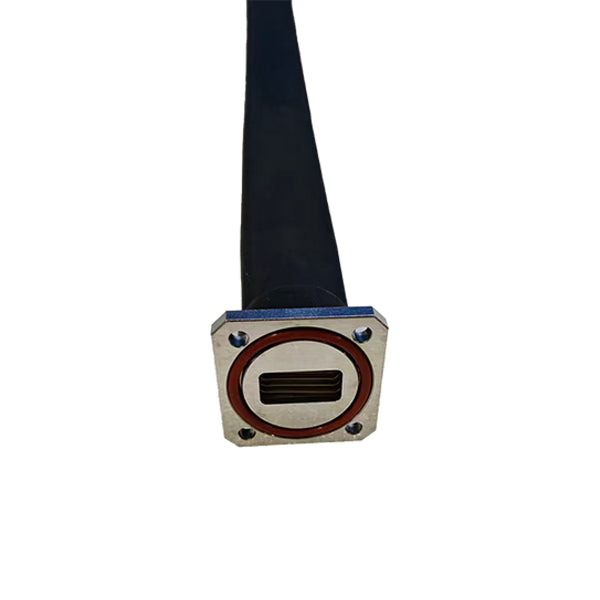

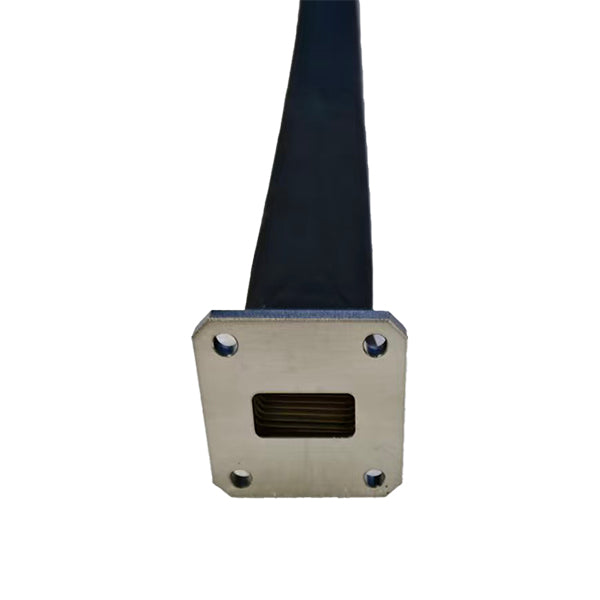

Name: WR-75 Flexible Twistable Waveguide
Brand: Norsat International Inc.
SKU: FW075PBRPBR0300
Availability: InStock

FW075PBRPBR0300

WR-75 Flexible Twistable Waveguide

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":53165869793647,"title":"WR-75 \/ PBR\/PBR \/ 300","option1":"WR-75","option2":"PBR\/PBR","option3":"300","sku":"FW075PBRPBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/PBR \/ 300","public_title":"WR-75 \/ PBR\/PBR \/ 300","options":["WR-75","PBR\/PBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869826415,"title":"WR-75 \/ PBR\/PBR \/ 500","option1":"WR-75","option2":"PBR\/PBR","option3":"500","sku":"FW075PBRPBR0500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/PBR \/ 500","public_title":"WR-75 \/ PBR\/PBR \/ 500","options":["WR-75","PBR\/PBR","500"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869859183,"title":"WR-75 \/ PBR\/PBR \/ 600","option1":"WR-75","option2":"PBR\/PBR","option3":"600","sku":"FW075PBRPBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/PBR \/ 600","public_title":"WR-75 \/ PBR\/PBR \/ 600","options":["WR-75","PBR\/PBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869891951,"title":"WR-75 \/ PBR\/PBR \/ 900","option1":"WR-75","option2":"PBR\/PBR","option3":"900","sku":"FW075PBRPBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/PBR \/ 900","public_title":"WR-75 \/ PBR\/PBR \/ 900","options":["WR-75","PBR\/PBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869924719,"title":"WR-75 \/ PBR\/UBR \/ 300","option1":"WR-75","option2":"PBR\/UBR","option3":"300","sku":"FW075PBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/UBR \/ 300","public_title":"WR-75 \/ PBR\/UBR \/ 300","options":["WR-75","PBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869957487,"title":"WR-75 \/ PBR\/UBR \/ 600","option1":"WR-75","option2":"PBR\/UBR","option3":"600","sku":"FW075PBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/UBR \/ 600","public_title":"WR-75 \/ PBR\/UBR \/ 600","options":["WR-75","PBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165869990255,"title":"WR-75 \/ PBR\/UBR \/ 900","option1":"WR-75","option2":"PBR\/UBR","option3":"900","sku":"FW075PBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ PBR\/UBR \/ 900","public_title":"WR-75 \/ PBR\/UBR \/ 900","options":["WR-75","PBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165870023023,"title":"WR-75 \/ UBR\/UBR \/ 300","option1":"WR-75","option2":"UBR\/UBR","option3":"300","sku":"FW075UBRUBR0300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ UBR\/UBR \/ 300","public_title":"WR-75 \/ UBR\/UBR \/ 300","options":["WR-75","UBR\/UBR","300"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165870055791,"title":"WR-75 \/ UBR\/UBR \/ 600","option1":"WR-75","option2":"UBR\/UBR","option3":"600","sku":"FW075UBRUBR0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ UBR\/UBR \/ 600","public_title":"WR-75 \/ UBR\/UBR \/ 600","options":["WR-75","UBR\/UBR","600"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53165870088559,"title":"WR-75 \/ UBR\/UBR \/ 900","option1":"WR-75","option2":"UBR\/UBR","option3":"900","sku":"FW075UBRUBR0900","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WR-75 Flexible Twistable Waveguide - WR-75 \/ UBR\/UBR \/ 900","public_title":"WR-75 \/ UBR\/UBR \/ 900","options":["WR-75","UBR\/UBR","900"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
flange finish	Nickel Palted
flange material	Brass
frequency max	15 GHz
frequency min	10 GHz
IL db/m	0.65 dB/m
IL Typ(db)	0.20 dB
max torsion angle dynamic	92° / meter
max torsion angle static	365° / meter
min bending radius dynamic E-plane	8.5" (216 mm)
min bending radius dynamic H-plane	17" (432 mm)
min bending radius static E-plane	2.1" (54 mm)
min bending radius static H-plane	4.3" (108 mm)
power handling CW(W)	750 W
power handling peak(W)	180 kW
RL Typ(db)	23.13 dB
waveguide finish	Silver Plated
waveguide material	Brass
waveguide port1	WR-75
waveguide port1 flange	PBR120 Grooved
waveguide port2	WR-75
waveguide port2 flange	PBR120 Grooved
Product Revision	A

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40℃ - 85℃

PHYSICAL SPECIFICATIONS
carton weight	1.5 kg
flange size	PBR/PBR
jacket material	Vulcanized Silicone Rubber
length	300mm
max torsion angle	330°/m
min bend radius	64mm/E 115mm/H
product height	38.1 mm
product length	300 mm
product length tolerance	±3%
product weight	0.24kg
product width	38.1 mm
waveguide size	BJ120/WR75/WG17/R120

INFORMATION
HS Code	85177990
Country of Origin	Made in China
Ex Works	Richmond, BC, Canada
ECCN Number	Not Applicable
Warranty	1 Year
Unit Package Dimensions	-
Unit Package Weight	3.233 kg
Total Aluminium Content	Not Applicable
Aluminum Country of Smelt and Cast	Not Applicable
Total Aluminium Value	-
