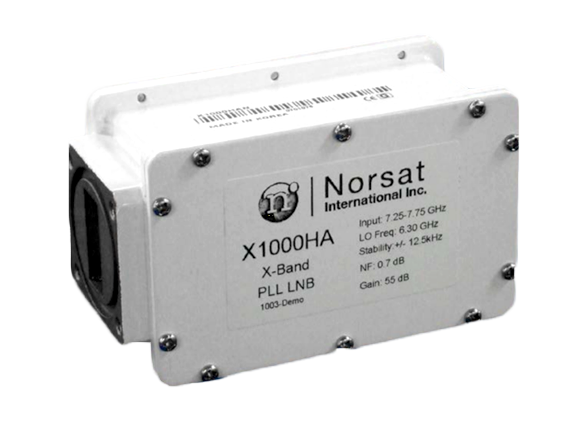

| KEY SPECIFICATIONS |
| band |
X-Band |
| input frequency band 1 |
7.25 - 7.75 GHz |
| LO frequency 1 |
6.30 GHz |
| LO stability |
±12.5 kHz |
| LO type |
PLL |
| noise figure max |
0.8 dB |
| noise figure typ |
0.7 dB |
| of onboard los |
Single-Band |
| output frequency band 1 |
950 - 1450 MHz |
| RF SPECIFICATIONS |
| conversion gain max |
62 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| conversion gain max |
62 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| input VSWR |
2.0 : 1 |
| output VSWR |
2.0 : 1 |
| ELECTRICAL SPECIFICATIONS |
| current drain |
230 mA |
| power requirements |
+12 to +24V DC |

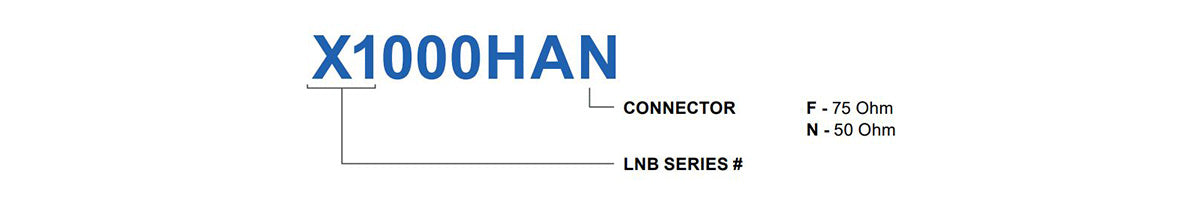

| INTERFACE SPECIFICATIONS |
| IF connector |
F-75 Ohm |
| RF input connector |
WR112 |
| ENVIRONMENTAL SPECIFICATIONS |
| humidity |
0 - 95% |
| temperature operational |
-40 to +60°C |

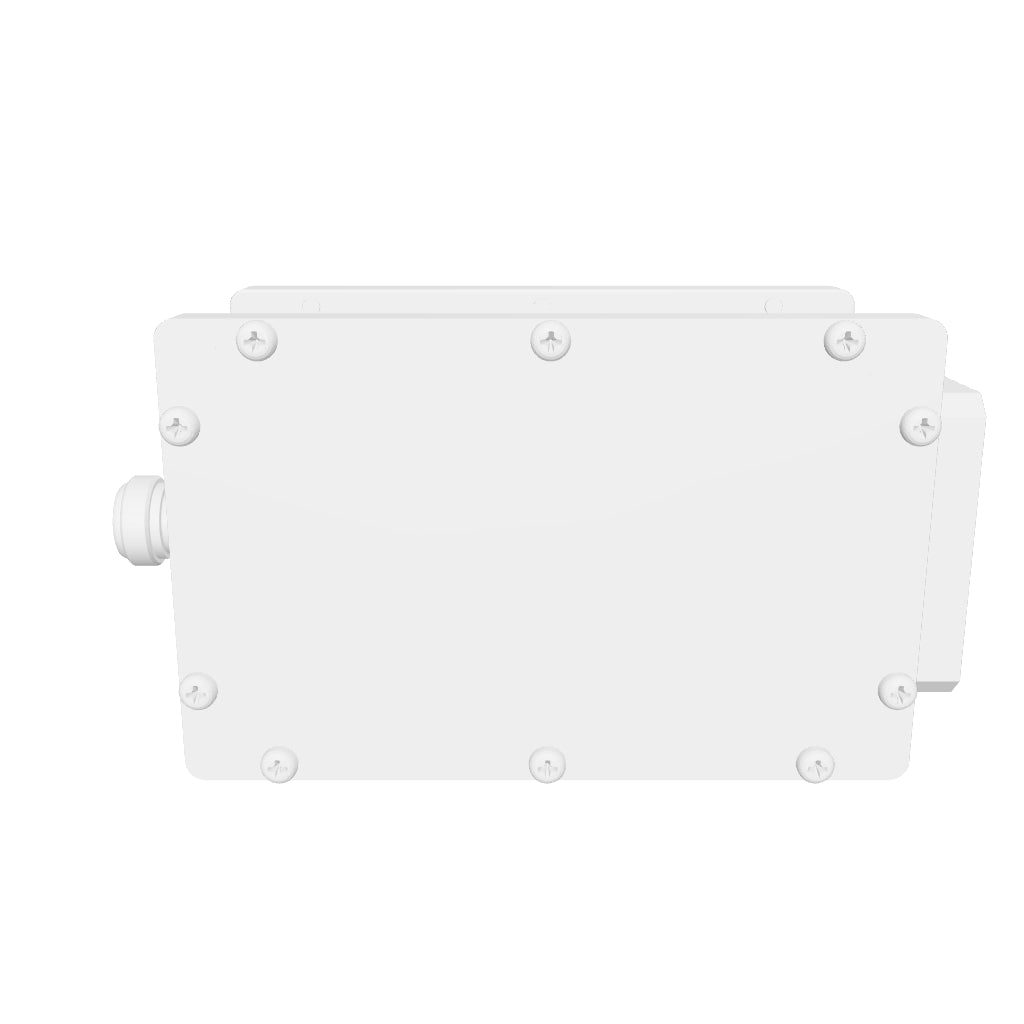

| PHYSICAL SPECIFICATIONS |

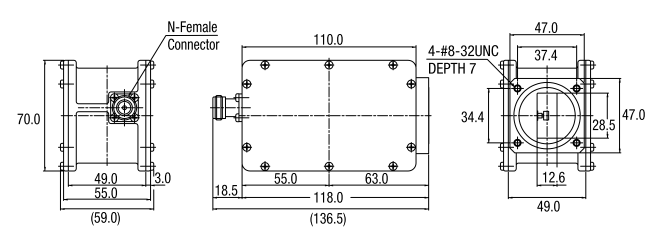

| dimensions (LxWxH) |
137 x 70 x 59 mm |
| Weight |
600g |
| KEY SPECIFICATIONS |
| band |
X-Band |
| input frequency band 1 |
7.25 - 7.75 GHz |
| LO frequency 1 |
6.30 GHz |
| LO stability |
±12.5 kHz |
| LO type |
PLL |
| noise figure max |
0.8 dB |
| noise figure typ |
0.7 dB |
| of onboard los |
Single-Band |
| output frequency band 1 |
950 - 1450 MHz |
| RF SPECIFICATIONS |
| conversion gain max |
62 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| conversion gain max |
62 dB |
| conversion gain min |
50 dB |
| conversion gain typ |
55 dB |
| input VSWR |
2.0 : 1 |
| output VSWR |
2.0 : 1 |
| ELECTRICAL SPECIFICATIONS |
| current drain |
230 mA |
| power requirements |
+12 to +24V DC |
| INTERFACE SPECIFICATIONS |
| IF connector |
N-50 Ohm |
| RF input connector |
WR112 |
| ENVIRONMENTAL SPECIFICATIONS |
| humidity |
0 - 95% |
| temperature operational |
-40 to +60°C |
| PHYSICAL SPECIFICATIONS |
| dimensions (LxWxH) |
137 x 70 x 59 mm |
| Weight |
600g |
| INFORMATION |
| Product Revision |
B |
| HS Code |
8517690000 |
| Country of Origin |
Made in Korea |
| Ex Works |
Richmond, BC, Canada |
| ECCN Number |
EAR99 |
| Unit Package Dimensions |
- |
| Unit Package Weight |
- |
Open here
X1000HA-Spec-Sheet.pdf
3DModel-X1000HA.STEP
