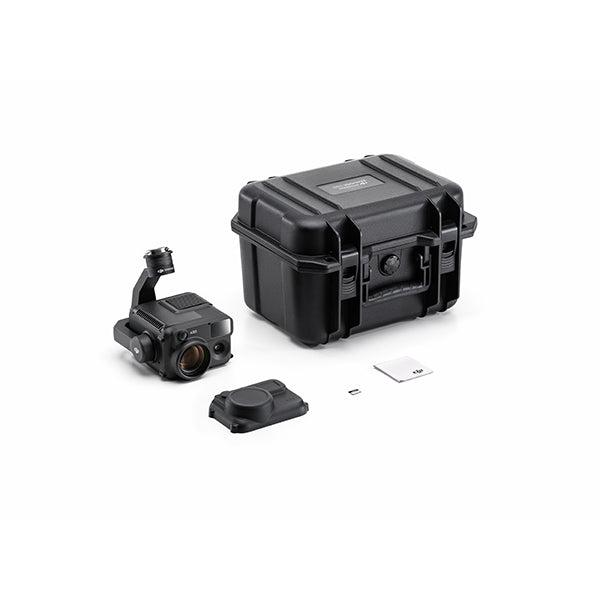

In the box:

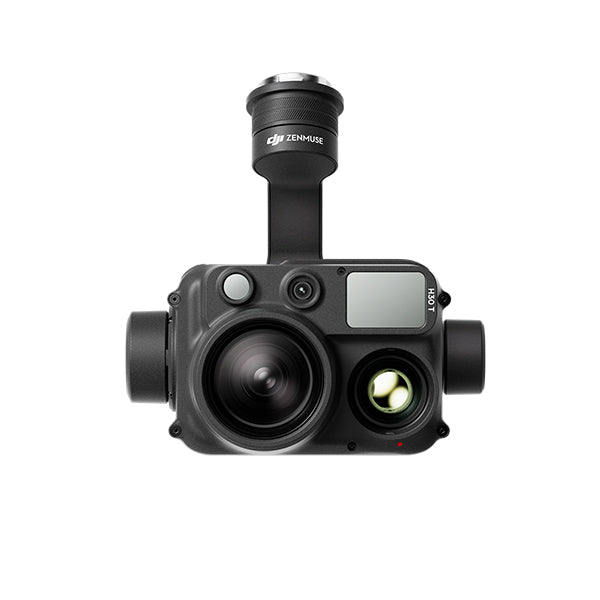

1x DJI Zenmuse H30 Gimbal Camera
1x Hard Storage Case
1x Lens Cleaning Cloth

PAYLOAD

KEY SPECIFICATIONS
hybrid optical zoom 34×
max zoom 400×
power 26 W
supported aircraft Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus)
supported mode Link Zoom, Click to Aim, High-Res Grid Photo, Night Scene, Timestamp, Smart Capture, Video Pre-Recording, UHR Infrared Image
Product Revision A
INTERFACE SPECIFICATIONS
recommended microSD cards Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC; Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
supported file system exFAT
supported microSD cards U3/Class10/V30 or above is required, or use a memory card from the recommended list.
ENVIRONMENTAL SPECIFICATIONS
IP rating IP54
storage temperature -20° to 60° C (-4° to 140° F)
temperature operational -20° to 50° C (-4° to 122° F)
PHYSICAL SPECIFICATIONS
product height 165 mm
product length 170 mm
product weight 920±5 g
product width 145 mm

CAMERAS

GENERAL SPECS
cameras Wide Camera, Zoom Camera
WIDE CAMERA SPECS
AE lock Supported
bit rate strategy CBR, VBR
electronic shutter speed 1/8000-2 s
exposure compensation ±3.0 (1/3 increments)
exposure mode Manual, Auto
focus mode MF, AFC, AFS
ISO range night 100-409600
ISO range single 100-25600
lens aperture f/1.7
lens DFOV 82.1°
lens focal length Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
max photo size 8064×6048, 4032×3024
metering mode Spot Metering, Average Metering
photo format JPG
sensor 1/1.3-inch CMOS, Effective Pixels: 48 MP
video codec H.264, H.265
video format MP4
video resolution night 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
video resolution single 3840×2160@30fps, 1920×1080@30fps
video subtitles Supported
ZOOM CAMERA SPECS
AE lock Supported
bit rate strategy CBR, VBR
DFOV 66.7°-2.9°
electronic shutter speed 1/8000-2 s
exposure Manual, Auto
exposure compensation ±3.0 (1/3 increments)
focus mode MF, AFC, AFS
ISO range night 100-819200
ISO range single 100-25600
lens aperture f/1.6-f/5.2
lens focal length Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
max photo size 7328×5496, 3664×2748
metering mode Spot Metering, Average Metering
photo format JPG
sensor 1/1.8-inch CMOS, Effective Pixels: 40 MP
video codec H.264, H.265
video format MP4
video resolution night 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
video resolution single 3840×2160@30fps, 1920×1080@30fps
video subtitles Supported

GIMBAL

GIMBAL SPECS
angular accuracy flight ±0.004°
angular accuracy hover ±0.002°
controllable range pan ±320°
controllable range tilt -120° to +60°
mechanical range pan ±328°
mechanical range roll ±60°
mechanical range tilt -132.5° to +73°
operation mode Follow / Free / Re-center
stabilization 3-axis (tilt, roll, pan)

LIGHTS

LIGHT NIR SPECS
FOV 4.6±0.6° (Round)
illumination range @100 m: Approx. 8m diameter circle
safety regulation level Class 1
wavelength 850 nm

LASER RANGEFINDER

LASER RANGEFINDER SPECS
accessible emission limit (AEL) 260 nJ
laser spot size @1000m approx. 450×4500 mm
laser spot size @100m approx. 50×450 mm
max laser pulse emission power 52 W (Within 5 Nanoseconds)
measurement accuracy ‌> 500 m ±1.0 m
measurement accuracy ≤ 500 m ±(0.2 m+measurement distance×0.15%)
measurement range 3-3000 m; Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*
reference aperture 18 mm
safety regulation level Class 1
wavelength 905 nm

SOFTWARE

SOFTWARE SPECS
infrared analysis DJI Thermal Analysis Tool 3
mapping DJI Terra, DJI FlightHub 2
