OPT184ER

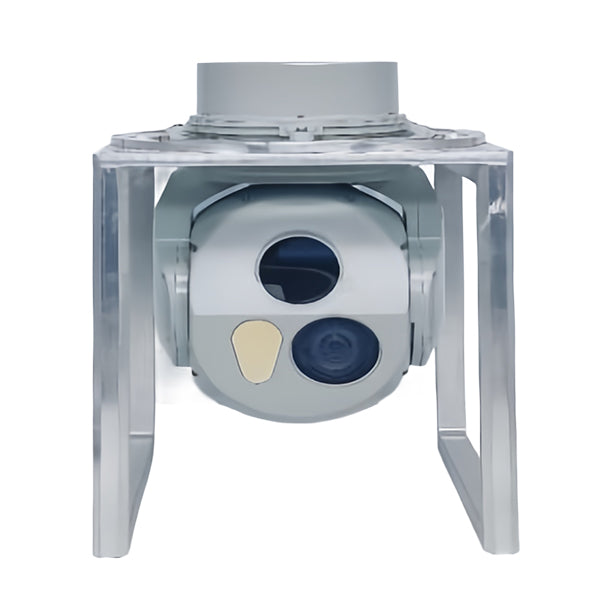

OPTIVIA Electro-Optical Pod Φ184
Electro-Optical PODs
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
Optional Upgrade Devices:
LRFB5000DD or LRFB7300DC or LRFB9500GC
| KEY SPECIFICATIONS | |
|---|---|
| optional upgrade devices | LRFB5000DD or LRFB7300DC or LRFB9500GC |
| recording time | 4h |
| stabilization accuracy | ＜0.2mrad (RMS) |
| standard preinstalled components | Visible Light Television; Laser Rangefinder; Thermal Infrared Camera |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| IR detection range | ≥3km |
| IR detection target-background temperature difference | 5K (∆T) |
| IR detector type | (VOx) Uncooled infrared microbolometer camera |
| IR fov | 8.7° x 6.5° |
| IR identification range | ≥1km |
| IR resolution | 640×512 |
| IR temperature color panel status | Ironbow, Rainbow, Black Hot/White Hot, Lava,Arctic, High Contrast Mono |
| IR temperature measurement range | -20°C to +550°C |
| IR wavelength range | 8 - 12μm |
| laser rangefinder accuracy | 5m |
| laser rangefinder operating wavelength | 1540nm |
| laser rangefinder ranging range | 30 - 6000m |
| visible light detection detection tracking target size | 4m × 6m |
| visible light detection maximum relative humidity | 70% |
| visible light detection minimum visibility | ≥23 km |
| visible light detection range | ≥6km |
| visible light fov | 2.5° x 1.41° to 58.9° x 33.13° |
| visible light identification range | ≥4km |
| visible light resolution | 1920×1080 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg 50W; Peak 150W |
| power supply | DC 28V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| control method | PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output) |
| external interface communication interface | 1×RS422, 1×RS232 |
| external interface video interface | 1×Digital IP, 1×HD-SDI |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +55°C |
| temperature storage | -40°C to +65 °C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 272.9 mm |
| product length | 184 mm |
| product weight | 3.5 kg |
| product width | 184 mm |
| rotation range azimuth | 360° continuous rotation |
| rotation range elevation | -110° to +10° |
| volume | Φ: 184 × H: 272.9 mm |
