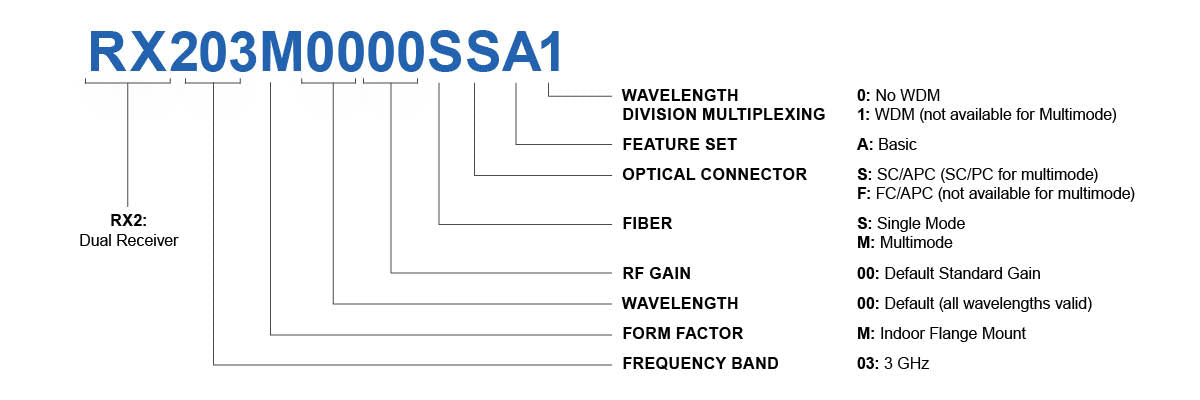

RX203M0000SSA0

RF over Fiber 3GHz - Dual Receiver Single Mode

Receiver

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Dual fiber receiver modules require a power supply - sold separately.
Fiber receiver path RF gain, NF, IIP3, SFDR depend on transmitter at other end of link (LNA, no LNA)

KEY SPECIFICATIONS
form factor Indoor Flange Mount
frequency band 30 - 3000 MHz
function Dual Receiver
Product Revision A
RF SPECIFICATIONS
frequency response flatness max 4 dBpp
frequency response flatness typ 3 dBpp
IIP3 Depends on fiber transmitter at other end of link (LNA, no LNA)
lower rolloff 30 MHz
noise figure Depends on fiber transmitter at other end of link (LNA, no LNA)
output impedance 50 Ohms
output VSWR typ < 2.0 : 1
RF gain Depends on fiber transmitter at other end of link (LNA, no LNA)
SFDR Depends on fiber transmitter at other end of link (LNA, no LNA)
ELECTRICAL SPECIFICATIONS
supply current < 360 mA
supply voltage 9V < Vcc < 30V
INTERFACE SPECIFICATIONS
optical connectors SC/APC bulkheads
RF connectors 50 Ohm SMA(f)
ENVIRONMENTAL SPECIFICATIONS
operating case temperature -40°C to +75°C
storage temperature -40°C to +85°C
PHYSICAL SPECIFICATIONS
product height 32 mm
product length 78 mm
product weight 0.315 kg
product width 128 mm
