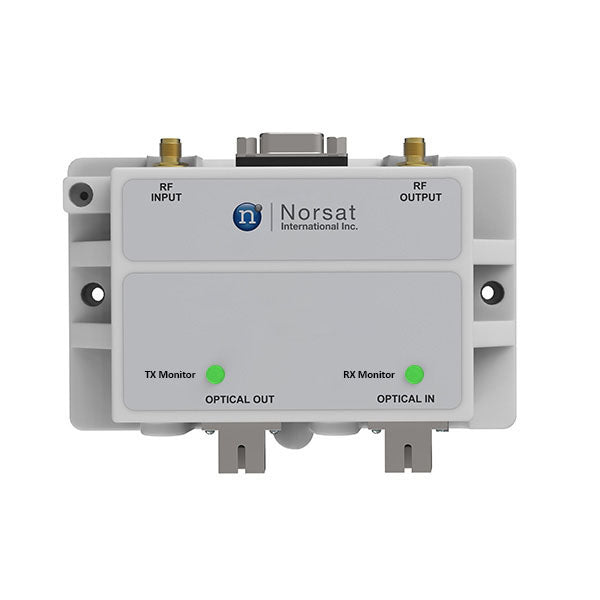

Name: RF over Fiber 3GHz - Transceiver Single Mode 1310nm
Brand: Norsat International Inc.
SKU: TRX03M3100SSA0
Price: 3170.00 USD
Availability: InStock

RF over Fiber 3GHz - Transceiver Single Mode 1310nm

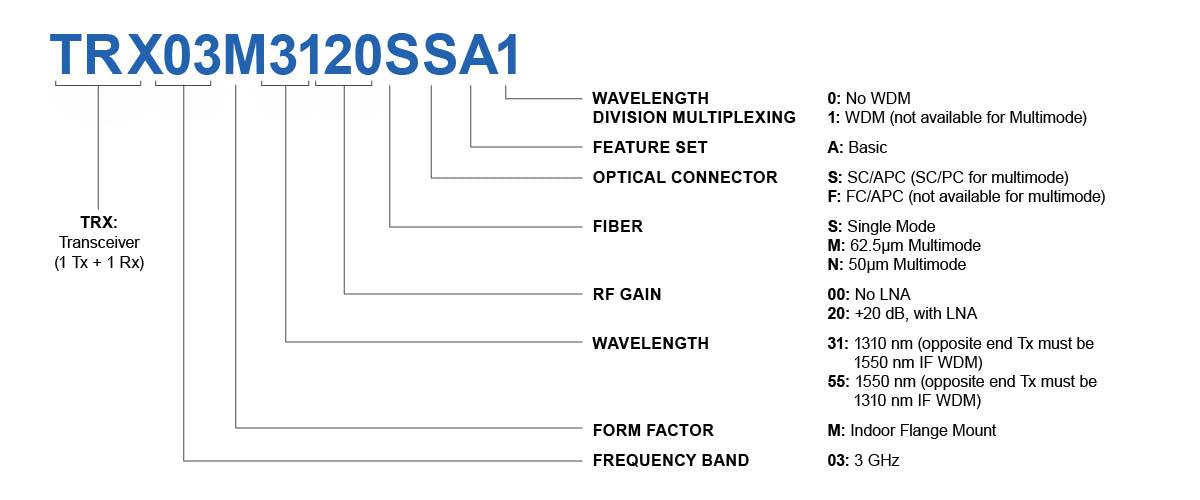

TRX03M3100SSA0

RF over Fiber 3GHz - Transceiver Single Mode 1310nm

Transceiver

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":51993884787055,"title":"SC\/APC \/ No \/ No","option1":"SC\/APC","option2":"No","option3":"No","sku":"TRX03M3100SSA0","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818586479,"product_id":14715462320495,"position":2,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:17:47-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067","variant_ids":[51993884787055,51993884819823,51993884918127,51993884950895]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - SC\/APC \/ No \/ No","public_title":"SC\/APC \/ No \/ No","options":["SC\/APC","No","No"],"price":317000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774048111,"position":4,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884819823,"title":"SC\/APC \/ Yes \/ No","option1":"SC\/APC","option2":"Yes","option3":"No","sku":"TRX03M3120SSA0","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818586479,"product_id":14715462320495,"position":2,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:17:47-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067","variant_ids":[51993884787055,51993884819823,51993884918127,51993884950895]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - SC\/APC \/ Yes \/ No","public_title":"SC\/APC \/ Yes \/ No","options":["SC\/APC","Yes","No"],"price":378000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774048111,"position":4,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884852591,"title":"SC\/APC \/ No \/ Yes","option1":"SC\/APC","option2":"No","option3":"Yes","sku":"TRX03M3100SSA1","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818553711,"product_id":14715462320495,"position":3,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:18:50-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130","variant_ids":[51993884852591,51993884885359,51993884983663,51993885016431]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - SC\/APC \/ No \/ Yes","public_title":"SC\/APC \/ No \/ Yes","options":["SC\/APC","No","Yes"],"price":354000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774015343,"position":5,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884885359,"title":"SC\/APC \/ Yes \/ Yes","option1":"SC\/APC","option2":"Yes","option3":"Yes","sku":"TRX03M3120SSA1","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818553711,"product_id":14715462320495,"position":3,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:18:50-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130","variant_ids":[51993884852591,51993884885359,51993884983663,51993885016431]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - SC\/APC \/ Yes \/ Yes","public_title":"SC\/APC \/ Yes \/ Yes","options":["SC\/APC","Yes","Yes"],"price":415000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774015343,"position":5,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884918127,"title":"FC\/APC \/ No \/ No","option1":"FC\/APC","option2":"No","option3":"No","sku":"TRX03M3100SFA0","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818586479,"product_id":14715462320495,"position":2,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:17:47-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067","variant_ids":[51993884787055,51993884819823,51993884918127,51993884950895]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - FC\/APC \/ No \/ No","public_title":"FC\/APC \/ No \/ No","options":["FC\/APC","No","No"],"price":312000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774048111,"position":4,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884950895,"title":"FC\/APC \/ Yes \/ No","option1":"FC\/APC","option2":"Yes","option3":"No","sku":"TRX03M3120SFA0","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818586479,"product_id":14715462320495,"position":2,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:17:47-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067","variant_ids":[51993884787055,51993884819823,51993884918127,51993884950895]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - FC\/APC \/ Yes \/ No","public_title":"FC\/APC \/ Yes \/ No","options":["FC\/APC","Yes","No"],"price":373000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774048111,"position":4,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884983663,"title":"FC\/APC \/ No \/ Yes","option1":"FC\/APC","option2":"No","option3":"Yes","sku":"TRX03M3100SFA1","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818553711,"product_id":14715462320495,"position":3,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:18:50-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130","variant_ids":[51993884852591,51993884885359,51993884983663,51993885016431]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - FC\/APC \/ No \/ Yes","public_title":"FC\/APC \/ No \/ Yes","options":["FC\/APC","No","Yes"],"price":354000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774015343,"position":5,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993885016431,"title":"FC\/APC \/ Yes \/ Yes","option1":"FC\/APC","option2":"Yes","option3":"Yes","sku":"TRX03M3120SFA1","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818553711,"product_id":14715462320495,"position":3,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:18:50-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130","variant_ids":[51993884852591,51993884885359,51993884983663,51993885016431]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - FC\/APC \/ Yes \/ Yes","public_title":"FC\/APC \/ Yes \/ Yes","options":["FC\/APC","Yes","Yes"],"price":415000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774015343,"position":5,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-WDM-diagram.png?v=1749079130"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":51993884787055,"title":"SC\/APC \/ No \/ No","option1":"SC\/APC","option2":"No","option3":"No","sku":"TRX03M3100SSA0","requires_shipping":true,"taxable":true,"featured_image":{"id":60227818586479,"product_id":14715462320495,"position":2,"created_at":"2025-06-02T12:20:10-07:00","updated_at":"2025-06-04T16:17:47-07:00","alt":null,"width":1262,"height":810,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067","variant_ids":[51993884787055,51993884819823,51993884918127,51993884950895]},"available":true,"name":"RF over Fiber 3GHz - Transceiver Single Mode 1310nm - SC\/APC \/ No \/ No","public_title":"SC\/APC \/ No \/ No","options":["SC\/APC","No","No"],"price":317000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":51916774048111,"position":4,"preview_image":{"aspect_ratio":1.558,"height":810,"width":1262,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/TX2-RX2-TRX-noWDM-diagram.png?v=1749079067"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Fiber transceiver modules require a power supply - sold separately.
Transmitter wavelength is 1310 nm, receiver wavelength may be any.
Fiber receiver path RF gain, NF, IIP3, SFDR depend on transmitter at other end of link (LNA, no LNA).

KEY SPECIFICATIONS
form factor	Indoor Flange Mount
frequency band	30 - 3000 MHz
function	Transceiver (Tx+Rx)
Product Revision	A

RF SPECIFICATIONS
frequency response flatness max	4 dBpp
frequency response flatness typ	3 dBpp
IIP3	> +28 dBm (fiber transmitter path)
input impedance	50 Ohms
input VSWR typ	< 2.0 : 1
lower rolloff	30 MHz
noise figure	41 dB (typical) (fiber transmitter path)
output impedance	50 Ohms
output VSWR typ	< 2.0 : 1
RF gain	-2 dB < G < +2 dB (fiber transmitter path)
RF input damage level	+18 dBm (60 mW)
SFDR	110 dB/Hz2/3 (typical) (fiber transmitter path)

ELECTRICAL SPECIFICATIONS
supply current	< 320 mA
supply voltage	9V < Vcc < 30V

INTERFACE SPECIFICATIONS
optical connectors	SC/APC bulkheads
RF connectors	50 Ohm SMA(f)

ENVIRONMENTAL SPECIFICATIONS
operating case temperature	-40°C to +75°C
storage temperature	-40°C to +85°C

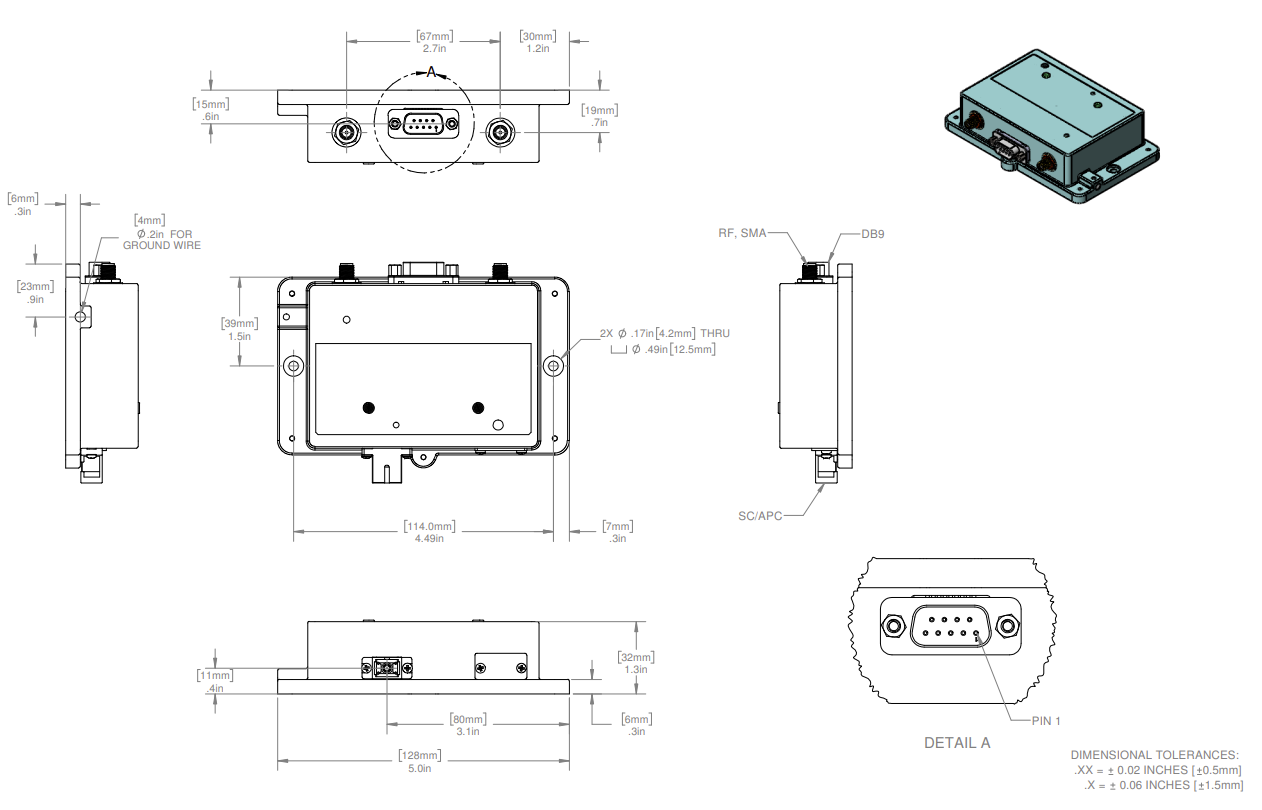

PHYSICAL SPECIFICATIONS
product height	32 mm
product length	78 mm
product weight	0.315 kg
product width	128 mm

INFORMATION
HS Code	8517620030
Country of Origin	Made in United States of America
Ex Works	Richmond, BC, Canada
ECCN Number	5A991
Warranty	1 year
Unit Package Dimensions	180 x 180 x 180 mm
Unit Package Weight	0.45 kg
Aluminium Content	0 Kg
Aluminium COO	-
Aluminium Total Value	$ 0

INTERFACE SPECIFICATIONS
optical connectors	FC/APC bulkheads
RF connectors	50 Ohm SMA(f)
