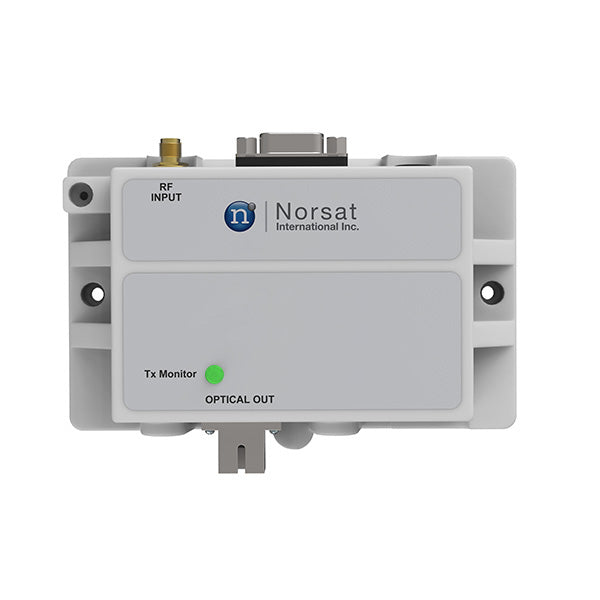

Name: RF over Fiber 3GHz - Transmitter 50um Multimode
Brand: Norsat International Inc.

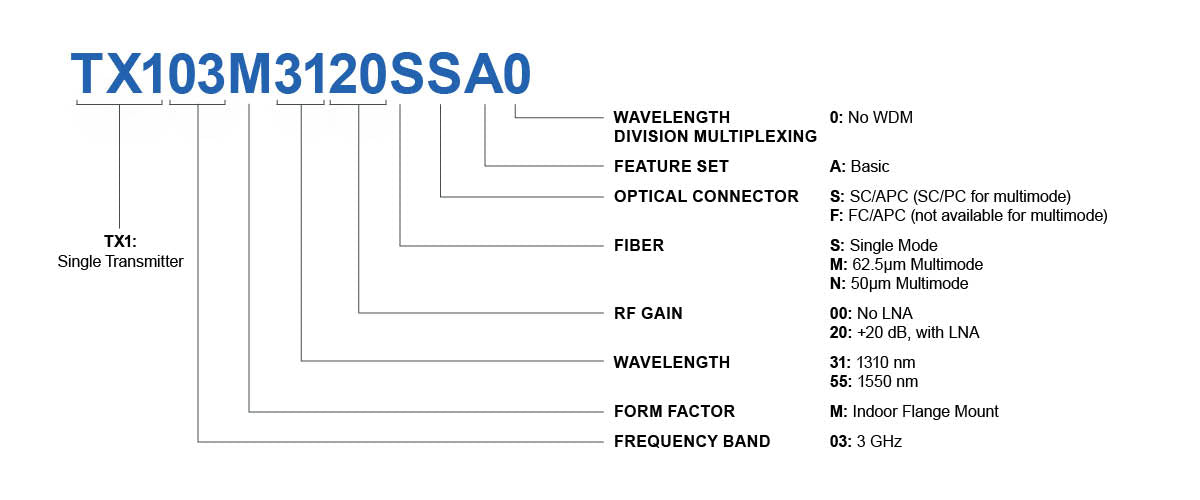

SKU: TX103M3100NSA0
Price: 3240.00 USD
Availability: InStock

RF over Fiber 3GHz - Transmitter 50um Multimode

TX103M3100NSA0

RF over Fiber 3GHz - Transmitter 50um Multimode

Transmitter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51993884295535,"title":"1310 nm \/ SC\/PC \/ No","option1":"1310 nm","option2":"SC\/PC","option3":"No","sku":"TX103M3100NSA0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF over Fiber 3GHz - Transmitter 50um Multimode - 1310 nm \/ SC\/PC \/ No","public_title":"1310 nm \/ SC\/PC \/ No","options":["1310 nm","SC\/PC","No"],"price":324000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884328303,"title":"1310 nm \/ SC\/PC \/ Yes","option1":"1310 nm","option2":"SC\/PC","option3":"Yes","sku":"TX103M3120NSA0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF over Fiber 3GHz - Transmitter 50um Multimode - 1310 nm \/ SC\/PC \/ Yes","public_title":"1310 nm \/ SC\/PC \/ Yes","options":["1310 nm","SC\/PC","Yes"],"price":382000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884361071,"title":"1550 nm \/ SC\/PC \/ No","option1":"1550 nm","option2":"SC\/PC","option3":"No","sku":"TX103M5500NSA0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF over Fiber 3GHz - Transmitter 50um Multimode - 1550 nm \/ SC\/PC \/ No","public_title":"1550 nm \/ SC\/PC \/ No","options":["1550 nm","SC\/PC","No"],"price":342000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51993884393839,"title":"1550 nm \/ SC\/PC \/ Yes","option1":"1550 nm","option2":"SC\/PC","option3":"Yes","sku":"TX103M5520NSA0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF over Fiber 3GHz - Transmitter 50um Multimode - 1550 nm \/ SC\/PC \/ Yes","public_title":"1550 nm \/ SC\/PC \/ Yes","options":["1550 nm","SC\/PC","Yes"],"price":400000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Fiber transmitter modules require a power supply - sold separately.
Optical connector is SC/PC. Interface to 62.5 µm OM1.

KEY SPECIFICATIONS
form factor	Indoor Flange Mount
frequency band	30 - 3000 MHz
function	Single Transmitter
Product Revision	A

RF SPECIFICATIONS
frequency response flatness max	4 dBpp
frequency response flatness typ	3 dBpp
IIP3	> +28 dBm
input impedance	50 Ohms
input VSWR typ	< 2.0 : 1
lower rolloff	30 MHz
noise figure	41 dB (typical)
RF gain	-2 dB < G < +2 dB
RF input damage level	+18 dBm (60 mW)
SFDR	110 dB/Hz2/3 (typical)

ELECTRICAL SPECIFICATIONS
supply current	< 80 mA
supply voltage	9V < Vcc < 30V

INTERFACE SPECIFICATIONS
optical connectors	SC/PC bulkhead
RF connectors	50 Ohm SMA(f)

ENVIRONMENTAL SPECIFICATIONS
operating case temperature	-40°C to +75°C
storage temperature	-40°C to +85°C

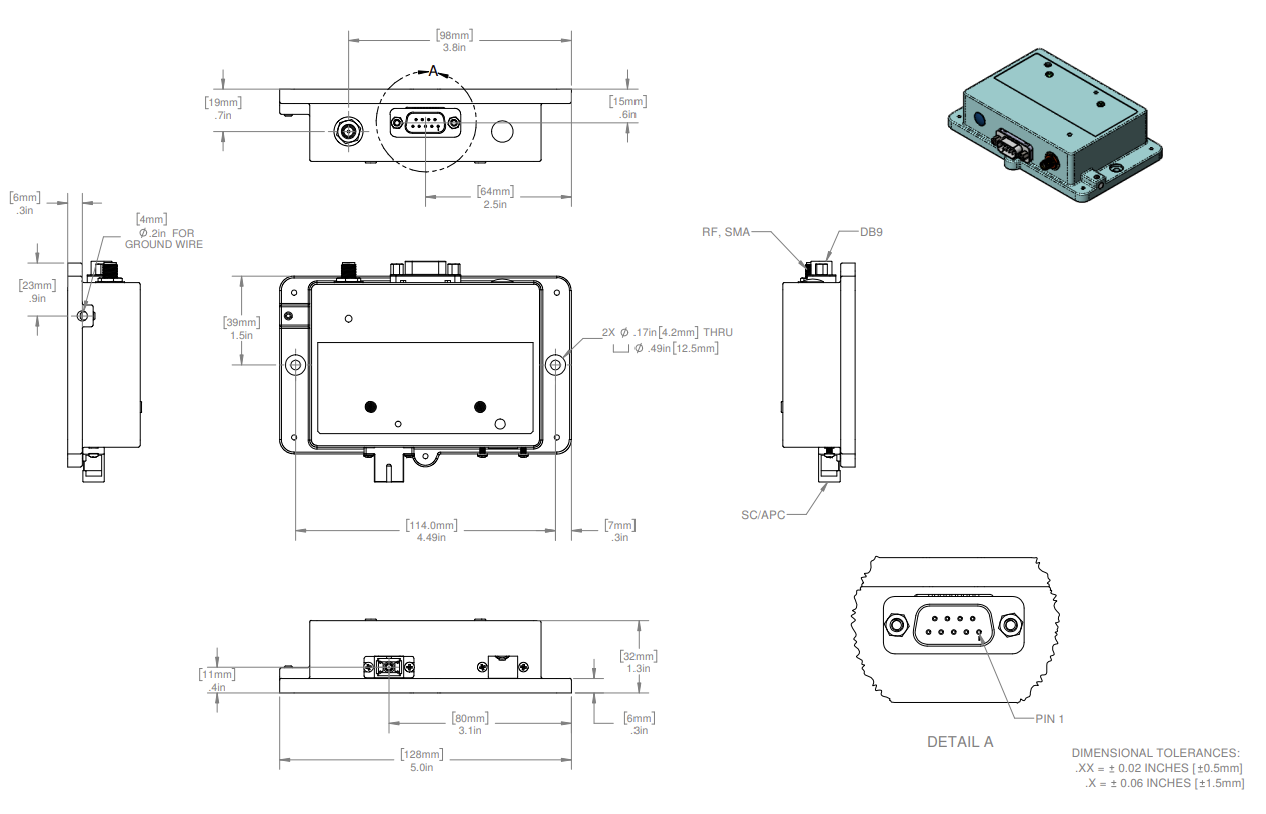

PHYSICAL SPECIFICATIONS
product height	32 mm
product length	78 mm
product weight	0.315 kg
product width	128 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517620030
Country of Origin	Made in United States of America
Ex Works	Richmond, BC, Canada
ECCN Number	5A991
Warranty	1 year
Unit Package Dimensions	180 x 180 x 180 mm
Unit Package Weight	0.45 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0

ENVIRONMENTAL SPECIFICATIONS
operating case temperature	-20°C to +75°C
storage temperature	-40°C to +85°C
