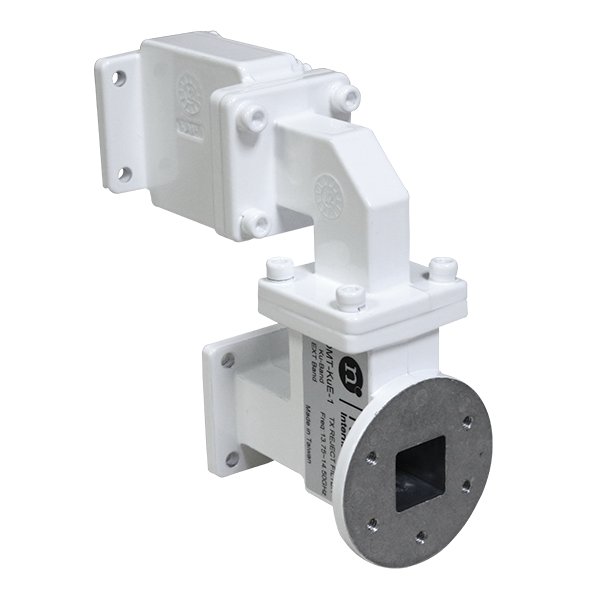

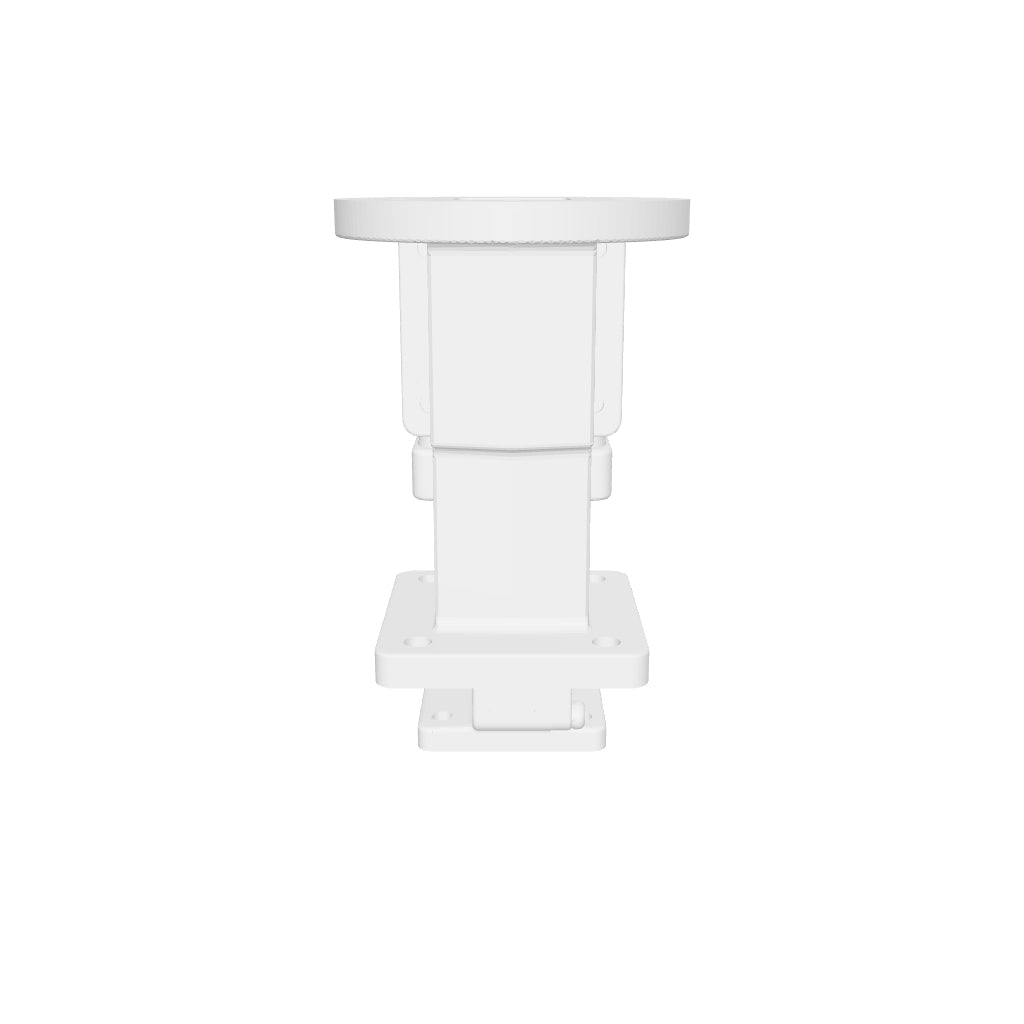

An integrated three port assembly, combining an OMT with a transmit reject filter and elbow. It is small, lightweight and easy to install. The OMT is designed for linear orthogonal polarization. The combined OMT and filter assembly provides very high isolation and is suitable for a large variety of applications in VSAT ground terminals.

The unit has a WC 75 flange at the feedhorn port and WR 75 cover flanges at the transmitter LNB ports.
KEY SPECIFICATIONS
band Ku-Band
LNB port frequency range 10.70 - 12.75 GHz
transmitter port frequency range 13.75 - 14.50 GHz
Product Revision A
RF SPECIFICATIONS
feed port to LNB port insertion loss max 0.4 dB
LNB port cross polarization min 40 dB
LNB port VSWR 1.25 : 1 max.
output VSWR 2.0 : 1 max.
transmitter port cross polarization min 40 dB
transmitter port to feed port insertion loss max 0.2 dB
transmitter port to LNB port isolation at Tx frequency min 85 dB
transmitter port VSWR 1.25 : 1 max.

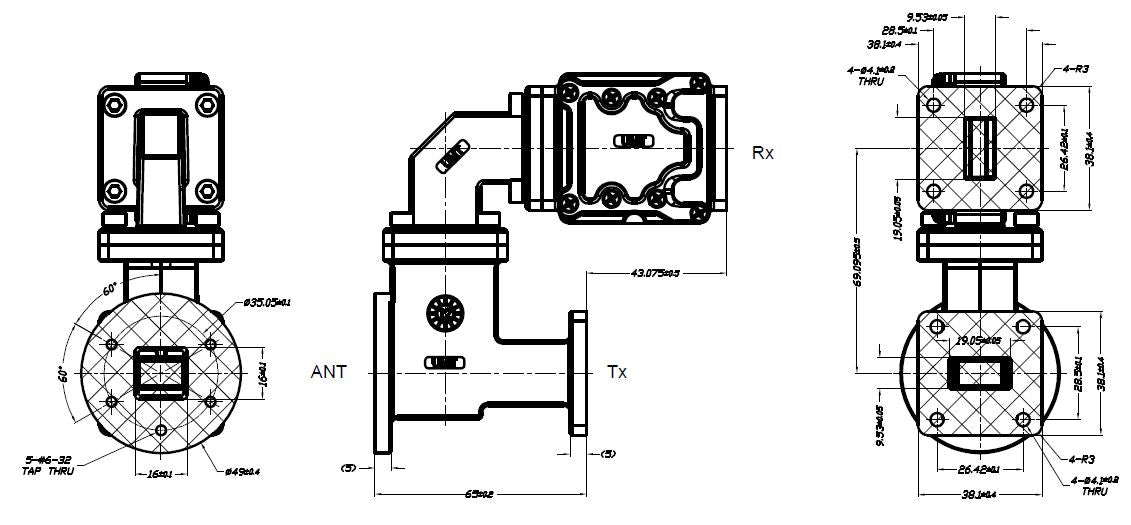

INTERFACE SPECIFICATIONS
feedhorn port waveguide WC75 with threaded holes
LNB port waveguide WR75 with through holes
transmitter port waveguide WR75 with through holes
PHYSICAL SPECIFICATIONS
product height 117 mm
product length 108 mm
product weight 0.39 kg
product width 149 mm
