ATOM 16W Ku-Band SSPA
ATOM 16W Ku-Band SSPA

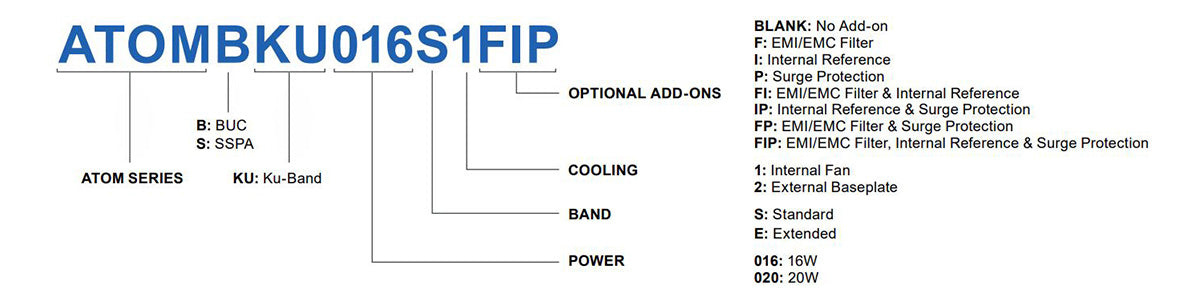

ATOMSKU016S1

ATOM 16W Ku-Band SSPA

ATOMSKU016 Series

Regular price MSRP: $12,526.83
/
Quantity Available: 0
Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band Ku-Band
band type S: Standard
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 Ku-Band: 950 - 1450 MHz
output frequency 1 Ku-Band: 14.00 - 14.50 GHz
output power rated 16W
RF SPECIFICATIONS
Gain Flatness (over 40MHz) ≤ 3.0 dB p-p
Gain Flatness (over full band) ≤ 8.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
lo frequency 1 13.05 GHz
noise power density -65 dBm/Hz in T, -65 dBm/Hz in Tx
output p1db 42 dBm min.
output power psat 43 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band p1db ≤ -55 dBc
output vswr 2.0 : 1 max.
phase noise 100khz offset -92 dBc/Hz
phase noise 10khz offset -82 dBc/Hz
phase noise 1khz offset -72 dBc/Hz
phase noise 1Mhz offset -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
input voltage + 18V to 56V DC via power connector
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption 210 W max.
INTERFACE SPECIFICATIONS
RF input connector Type N Connector (50 Ohm)
RF output connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +60°C
temperature storage -50 to +80°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)
Weight < 2.4 kg (5.30 lb)
PHYSICAL SPECIFICATIONS
cooling 1: Internal Fan

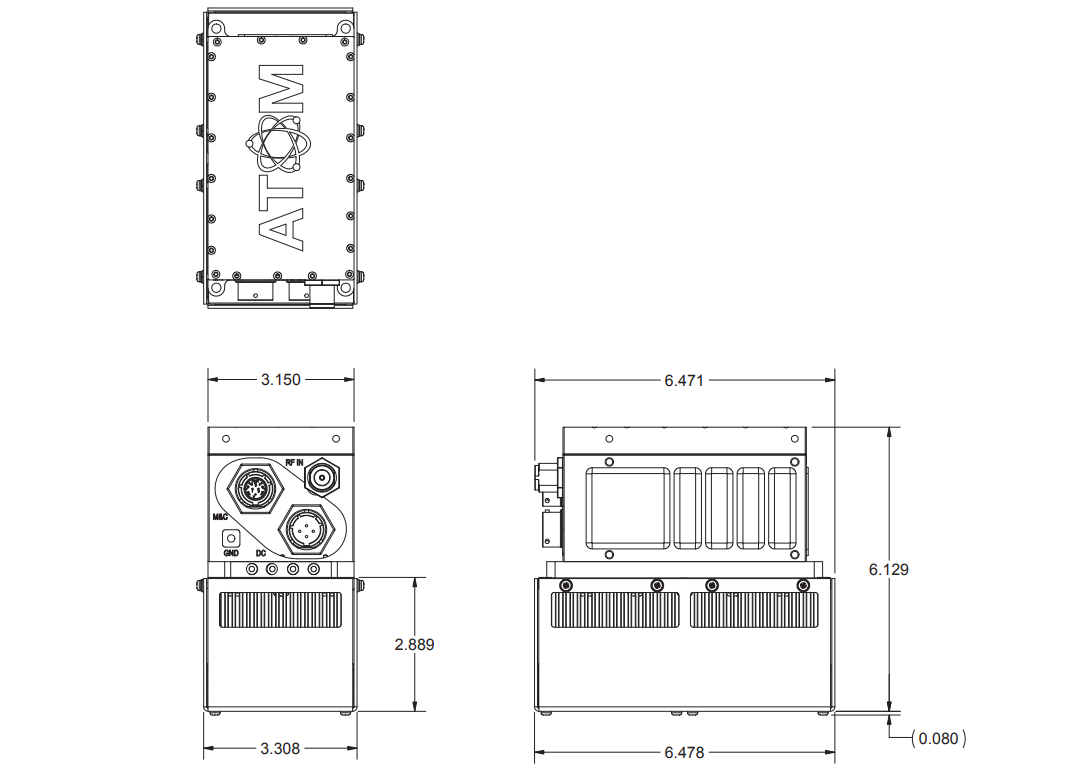

dimensions (LxWxH) 164 x 91 x 181 mm
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
