Name: ELEMENT 40W Ku-Band MINIBUC
Brand: Norsat International Inc.
SKU: ELMTBKU040-SN
Price: 21407.41 USD
Availability: InStock

ELMTBKU040-SN

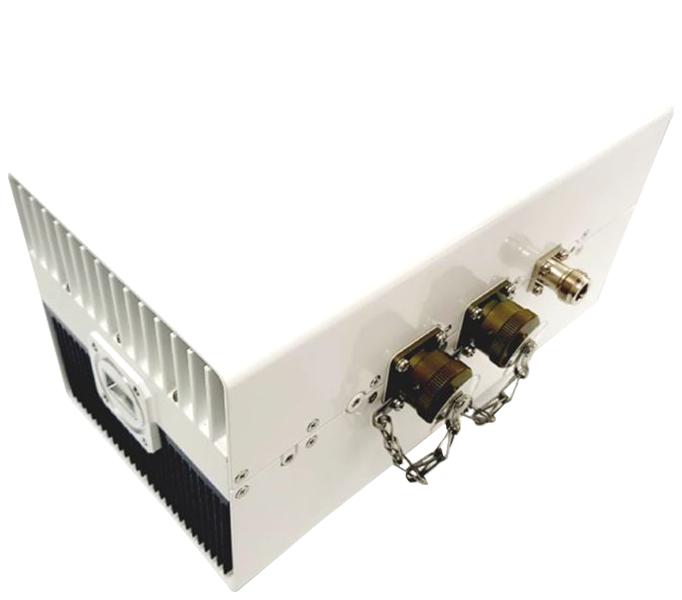

ELEMENT 40W Ku-Band MINIBUC

ELMTBKU040 Series

MSRP: $21,407.41

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":42199898423479,"title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 14.00 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector"],"price":2140741,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072684215,"title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 14.00 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector"],"price":2140741,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072716983,"title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 13.75 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072749751,"title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 13.75 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072782519,"title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-SN-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 14.00 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2239506,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072815287,"title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-SF-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 14.00 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2239506,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072848055,"title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-EN-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 13.75 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2288889,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072880823,"title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-EF-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 13.75 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2288889,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072913591,"title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-SN-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 14.00 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2239506,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072946359,"title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-SF-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 14.00 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 14.00 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2239506,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347072979127,"title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-EN-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 13.75 - 14.50 GHz","N-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2288889,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073011895,"title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-EF-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 13.75 - 14.50 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 13.75 - 14.50 GHz","F-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2288889,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073044663,"title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-AN-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 12.75 - 13.25 GHz","N-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073077431,"title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBKU040-AF-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + RS-485 \u0026 RS-232","options":["Ku-Band: 12.75 - 13.25 GHz","F-Connector","+36V to + 60V DC MS Connector + RS-485 \u0026 RS-232"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073110199,"title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 12.75 - 13.25 GHz","N-Connector","+36V to + 60V DC MS Connector"],"price":2091358,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073142967,"title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector","sku":"ELMTBKU040-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector","options":["Ku-Band: 12.75 - 13.25 GHz","F-Connector","+36V to + 60V DC MS Connector"],"price":2091358,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073175735,"title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"N-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-AN-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ N-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 12.75 - 13.25 GHz","N-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42347073208503,"title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","option1":"Ku-Band: 12.75 - 13.25 GHz","option2":"F-Connector","option3":"+36V to + 60V DC MS Connector + Ethernet","sku":"ELMTBKU040-AF-E","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 40W Ku-Band MINIBUC - Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","public_title":"Ku-Band: 12.75 - 13.25 GHz \/ F-Connector \/ +36V to + 60V DC MS Connector + Ethernet","options":["Ku-Band: 12.75 - 13.25 GHz","F-Connector","+36V to + 60V DC MS Connector + Ethernet"],"price":2190123,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
Connector	N-Connector
input frequency band 1	950 - 1450 MHz
output frequency 1	Ku-Band: 14.00 - 14.50 GHz
output power rated	40W

RF SPECIFICATIONS
Gain Flatness (over 54MHz)	1.5 dB
Gain Flatness (over full band)	4 dB
Gain Flatness (over temperature)	4 dB
input VSWR	2.0 : 1 max.
L.O. frequency 1	13.05 GHz
Linear Gain	72 dB typ.
output P1dB	46 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band P1dB	≤ -50 dBc
phase noise 100hz offset	-65 dBc/Hz
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-85 dBc/Hz
phase noise 1khz offset	-75 dBc/Hz
reference signal frequency	0 +/- 5 dBm @ 10 MHz

ELECTRICAL SPECIFICATIONS
input voltage	+36V to + 60V DC MS Connector
power connector	MS Connector

INTERFACE SPECIFICATIONS
RF input connector	WR75G

ENVIRONMENTAL SPECIFICATIONS
humidity	0-100% condensing
temperature operational	-40 to +55°C
Weight	4.0 kg (8.82 lb)

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)	245 x 125 x 125 mm

Back to BUC / SSPA

INFORMATION
HS Code	8543700000
Country of Origin	Made in Korea
ECCN Number	EAR99
Shipping Package Dimensions	290 x 270 x 250 mm (11.41 x 10.63 x 9.84 in)
Shipping Package Weight	4.5kg (9.92lb)
