Name: WAYFARER 1.8m Ku-Band Auto Flyaway Antenna
Brand: Norsat International Inc.
SKU: WFA180KU-NA
Price: 77789.00 USD
Availability: InStock

WFA180KU-NA

WAYFARER 1.8m Ku-Band Auto Flyaway Antenna

WAYFARER - Flyaway

MSRP: $77,789.00

Quantity Available: Contact Sales

Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks Lead Time: 12 - 16 Weeks

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

[{"id":41503713820855,"title":"North America (NEMA 5\/15)","option1":"North America (NEMA 5\/15)","option2":null,"option3":null,"sku":"WFA180KU-NA","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - North America (NEMA 5\/15)","public_title":"North America (NEMA 5\/15)","options":["North America (NEMA 5\/15)"],"price":7778900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41503713853623,"title":"United Kingdom (BS 1363)","option1":"United Kingdom (BS 1363)","option2":null,"option3":null,"sku":"WFA180KU-UK","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - United Kingdom (BS 1363)","public_title":"United Kingdom (BS 1363)","options":["United Kingdom (BS 1363)"],"price":7778900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41503713886391,"title":"Europe (CEE 7\/7)","option1":"Europe (CEE 7\/7)","option2":null,"option3":null,"sku":"WFA180KU-EU","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - Europe (CEE 7\/7)","public_title":"Europe (CEE 7\/7)","options":["Europe (CEE 7\/7)"],"price":7778900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41503713919159,"title":"IEC (60320 CIA)","option1":"IEC (60320 CIA)","option2":null,"option3":null,"sku":"WFA180KU-IEC","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - IEC (60320 CIA)","public_title":"IEC (60320 CIA)","options":["IEC (60320 CIA)"],"price":7778900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41503713951927,"title":"China (Type I Plug)","option1":"China (Type I Plug)","option2":null,"option3":null,"sku":"WFA180KU-CN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"WAYFARER 1.8m Ku-Band Auto Flyaway Antenna - China (Type I Plug)","public_title":"China (Type I Plug)","options":["China (Type I Plug)"],"price":7778900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"quantity_rule":{"min":1,"max":null,"increment":1}}]

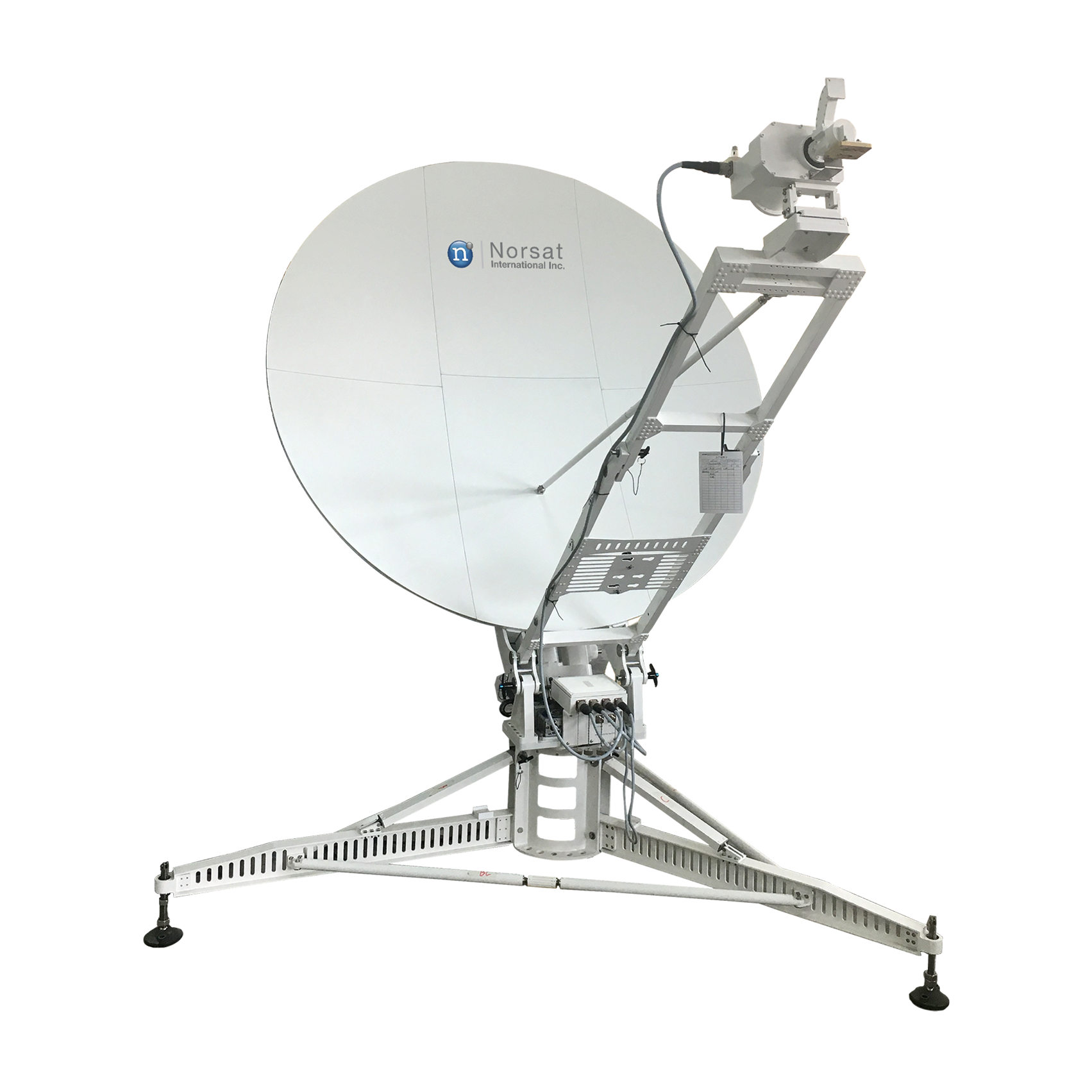

The Norsat WAYFARER™ commercial 1.8m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries.
fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.

KEY SPECIFICATIONS
acquisition and tracking	Automatic
band	Ku-Band
receive frequency	Ku Band: 10.70 - 12.75 GHz
reflector diameter	1.8 m
transmit frequency	Ku-Band: 13.75 - 14.50 GHz

ANTENNA SPECIFICATIONS
azimuth range	+/- 180°
cross polarization isolation	≥35 dB
elevation range	0 - 90°
feed configuration	Centre-feed
movement overrides	Manual (Azimuth/Elevation)
polarization	Linear +/- 90°
standard buc options	8W, 20W, 40W, 80W
standard lnb options	1000H or HS1000

RF SPECIFICATIONS
movement platform	Motorized Elevation over Azimuth
rx gain	45.3+ 20log(f/12.5)dBi
tx gain	46.3+ 20log(f/14.25)dBi

ELECTRICAL SPECIFICATIONS

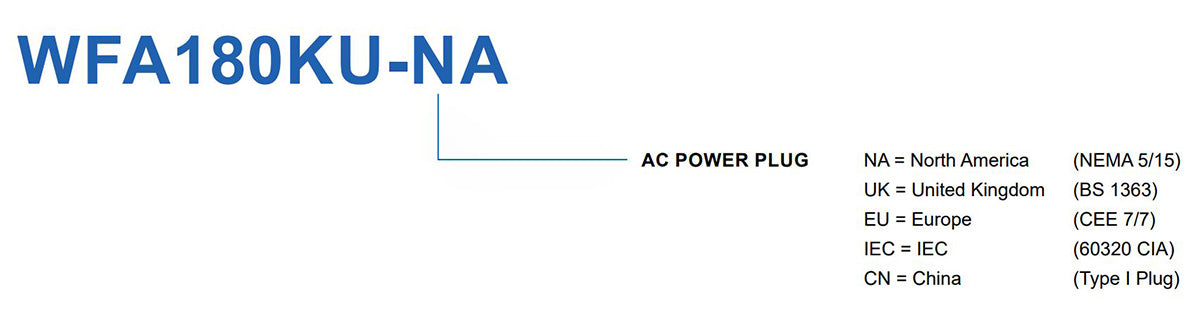

power connector	North America (NEMA 5/15)
power requirements	DC24 10A

INTERFACE SPECIFICATIONS
interfacility link cable	10 m

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 95% (20°C)
temperature operational	-30°C to +60°C (Antenna)
weatherproofing	IP65
windspeed operational	40 km/h
windspeed survival	65 km/h

PHYSICAL SPECIFICATIONS
number of cases	6 standard

KEY SPECIFICATIONS
acquisition and tracking	Automatic
band	Ku-Band
receive frequency	Ku Band: 10.70 - 12.75 GHz
reflector diameter	1.8 m
transmit frequency	Ku-Band: 13.75 - 14.50 GHz

ANTENNA SPECIFICATIONS
azimuth range	+/- 180°
cross polarization isolation	≥35 dB
elevation range	0 - 90°
feed configuration	Centre-feed
movement overrides	Manual (Azimuth/Elevation)
polarization	Linear +/- 90°
standard buc options	8W, 20W, 40W, 80W
standard lnb options	1000H or HS1000

RF SPECIFICATIONS
movement platform	Motorized Elevation over Azimuth
rx gain	45.3+ 20log(f/12.5)dBi
tx gain	46.3+ 20log(f/14.25)dBi

ELECTRICAL SPECIFICATIONS
power connector	United Kingdom (BS 1363)
power requirements	DC24 10A

INTERFACE SPECIFICATIONS
interfacility link cable	10 m

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 95% (20°C)
temperature operational	-30°C to +60°C (Antenna)
weatherproofing	IP65
windspeed operational	40 km/h
windspeed survival	65 km/h

PHYSICAL SPECIFICATIONS
number of cases	6 standard

INFORMATION
HS Code	8517700000
Country of Origin	CN
ECCN Number	EAR99
Shipping Package Dimensions	N/A
Shipping Package Weight	N/A

ELECTRICAL SPECIFICATIONS
power connector	China (Type I Plug)
power requirements	DC24 10A
