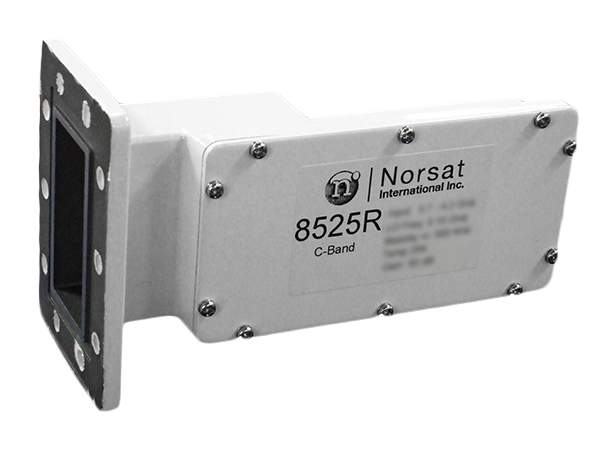

8000R C-Band Single Band PLL LNB (End of Life)
8000R C-Band Single Band PLL LNB (End of Life)
8000R C-Band Single Band PLL LNB (End of Life)
8000R C-Band Single Band PLL LNB (End of Life)
8000R C-Band Single Band PLL LNB (End of Life)

8525RF

8000R C-Band Single Band PLL LNB (End of Life)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Maximum total coverage is 5 years.



End-of-Life: Superseded by 5000 Series

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3-year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.

KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.70 - 4.20 GHz
LO frequency 1 5.15 GHz
LO stability ±500 kHz
LO type PLL
noise figure max 30K
noise figure typ 25K
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision E
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 62 dB
input VSWR 2.0 : 1 max.
output P1dB 8 dBm min.
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -65 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 130 mA
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -50 to +70°C

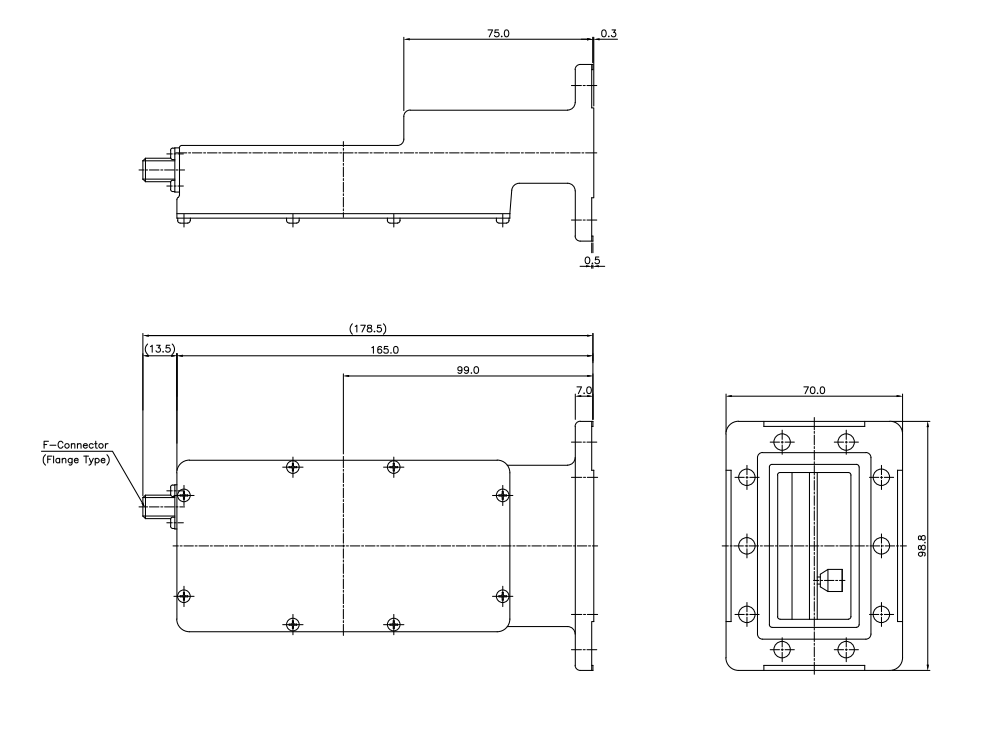

PHYSICAL SPECIFICATIONS
product height 70 mm
product length 180 mm
product weight 0.425 kg
product width 100 mm
