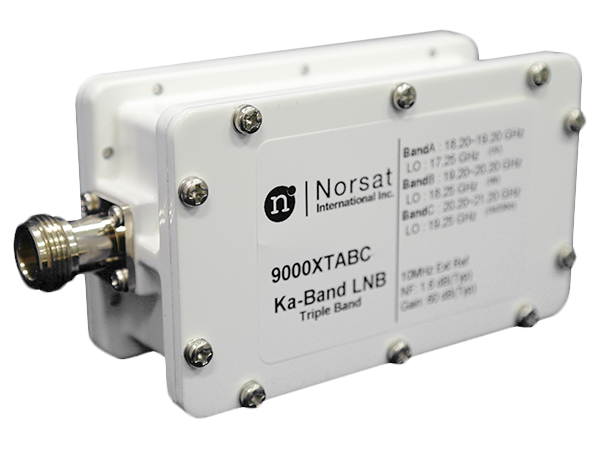

Name: 9000XT Ka-Band Triple Band EXT REF LNB
Brand: Norsat International Inc.
SKU: 9000XTABCF
Price: 2235.00 USD
Availability: InStock

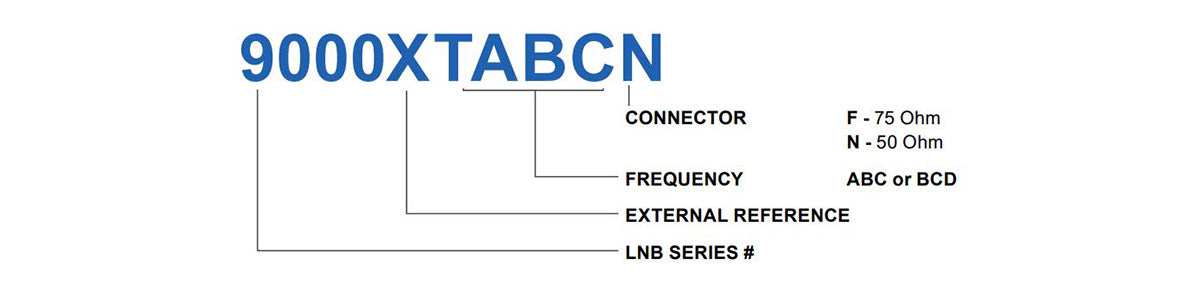

9000XTABCF

9000XT Ka-Band Triple Band EXT REF LNB

9000XT Series

MSRP: $2,235.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41060608344247,"title":"ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","option1":"ABC: 18.20 - 21.20 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000XTABCF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000XT Ka-Band Triple Band EXT REF LNB - ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","public_title":"ABC: 18.20 - 21.20 GHz \/ F: 75 Ohm","options":["ABC: 18.20 - 21.20 GHz","F: 75 Ohm"],"price":223500,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060608377015,"title":"ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","option1":"ABC: 18.20 - 21.20 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000XTABCN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000XT Ka-Band Triple Band EXT REF LNB - ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","public_title":"ABC: 18.20 - 21.20 GHz \/ N: 50 Ohm","options":["ABC: 18.20 - 21.20 GHz","N: 50 Ohm"],"price":224400,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060608409783,"title":"BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","option1":"BCD: 19.20 - 22.20 GHz","option2":"F: 75 Ohm","option3":null,"sku":"9000XTBCDF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000XT Ka-Band Triple Band EXT REF LNB - BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","public_title":"BCD: 19.20 - 22.20 GHz \/ F: 75 Ohm","options":["BCD: 19.20 - 22.20 GHz","F: 75 Ohm"],"price":223500,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41060608442551,"title":"BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","option1":"BCD: 19.20 - 22.20 GHz","option2":"N: 50 Ohm","option3":null,"sku":"9000XTBCDN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000XT Ka-Band Triple Band EXT REF LNB - BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","public_title":"BCD: 19.20 - 22.20 GHz \/ N: 50 Ohm","options":["BCD: 19.20 - 22.20 GHz","N: 50 Ohm"],"price":224400,"weight":400,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT Series.

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	18.20 - 19.20 GHz
input frequency band 2	19.20 - 20.20 GHz
input frequency band 3	20.20 - 21.20 GHz
LO frequency 1	17.25 GHz
LO frequency 2	18.25 GHz
LO frequency 3	19.25 GHz
LO stability	External Reference
LO type	External
noise figure max	1.6 dB
noise figure typ	1.3 dB
of onboard los	Triple-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

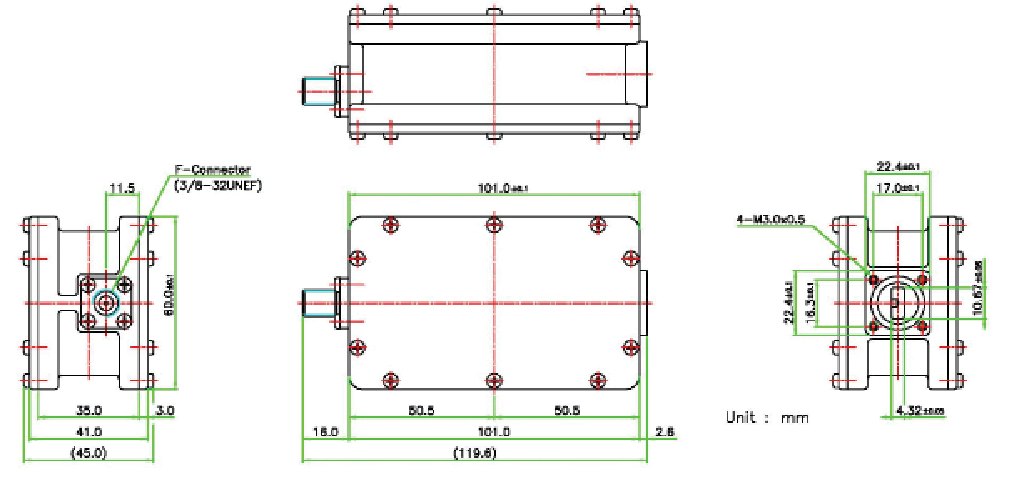

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	420 g (14.81 oz)

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	18.20 - 19.20 GHz
input frequency band 2	19.20 - 20.20 GHz
input frequency band 3	20.20 - 21.20 GHz
LO frequency 1	17.25 GHz
LO frequency 2	18.25 GHz
LO frequency 3	19.25 GHz
LO stability	External Reference
LO type	External
noise figure max	1.6 dB
noise figure typ	1.3 dB
of onboard los	Triple-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	420 g (14.81 oz)

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	19.20 - 20.20 GHz
input frequency band 2	20.20 - 21.20 GHz
input frequency band 3	21.20 - 22.20 GHz
LO frequency 1	18.25 GHz
LO frequency 2	19.25 GHz
LO frequency 3	20.25 GHz
LO stability	External Reference
LO type	External
noise figure max	1.8 dB
noise figure typ	1.5 dB
of onboard los	Triple-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	420 g (14.81 oz)

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	19.20 - 20.20 GHz
input frequency band 2	20.20 - 21.20 GHz
input frequency band 3	21.20 - 22.20 GHz
LO frequency 1	18.25 GHz
LO frequency 2	19.25 GHz
LO frequency 3	20.25 GHz
LO stability	External Reference
LO type	External
noise figure max	1.8 dB
noise figure typ	1.5 dB
of onboard los	Triple-band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
control signal 3	13V / 22kHz Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	58 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 3 dBm min.
output VSWR	2.5 : 1 max.
phase noise 100kHz offset max	Depends on External Reference
phase noise 10kHz offset max	Depends on External Reference
phase noise 1kHz offset max	Depends on External Reference

ELECTRICAL SPECIFICATIONS
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	120 x 60 x 45 mm
product weight	420 g (14.81 oz)

Back to LNB

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 77 mm
Unit Package Weight	460g
