Name: Single-Band X-Band LNA
Brand: Norsat International Inc.
SKU: LNAX22NP
Price: 3639.00 USD
Availability: InStock

LNAX22NP

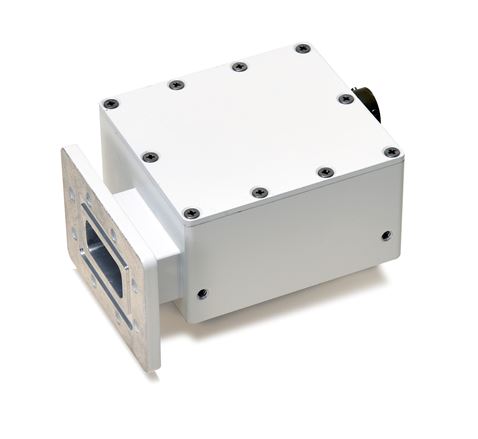

Single-Band X-Band LNA

LNA Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

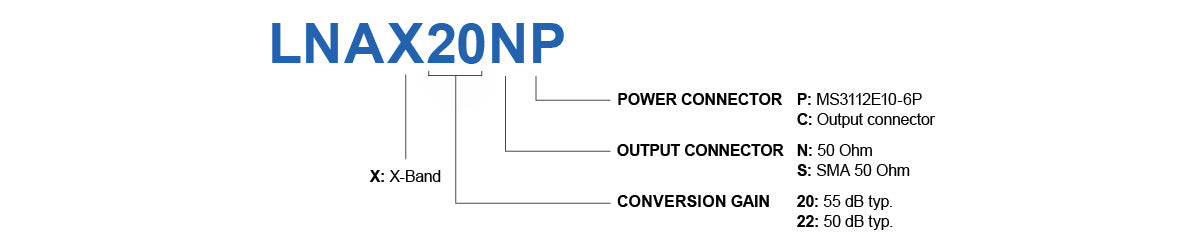

[{"id":42754380136631,"title":"22: 50 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","option1":"22: 50 dB typ.","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAX22NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 22: 50 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"22: 50 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","options":["22: 50 dB typ.","N - 50 Ohm","MS3112E10-6P"],"price":363900,"weight":645,"compare_at_price":327500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380169399,"title":"22: 50 dB typ. \/ N - 50 Ohm \/ Output connector","option1":"22: 50 dB typ.","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAX22NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 22: 50 dB typ. \/ N - 50 Ohm \/ Output connector","public_title":"22: 50 dB typ. \/ N - 50 Ohm \/ Output connector","options":["22: 50 dB typ.","N - 50 Ohm","Output connector"],"price":350000,"weight":645,"compare_at_price":315000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380202167,"title":"22: 50 dB typ. \/ SMA \/ MS3112E10-6P","option1":"22: 50 dB typ.","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAX22SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 22: 50 dB typ. \/ SMA \/ MS3112E10-6P","public_title":"22: 50 dB typ. \/ SMA \/ MS3112E10-6P","options":["22: 50 dB typ.","SMA","MS3112E10-6P"],"price":363900,"weight":645,"compare_at_price":327500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380234935,"title":"22: 50 dB typ. \/ SMA \/ Output connector","option1":"22: 50 dB typ.","option2":"SMA","option3":"Output connector","sku":"LNAX22SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 22: 50 dB typ. \/ SMA \/ Output connector","public_title":"22: 50 dB typ. \/ SMA \/ Output connector","options":["22: 50 dB typ.","SMA","Output connector"],"price":350000,"weight":645,"compare_at_price":315000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380005559,"title":"20: 55 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","option1":"20: 55 dB typ.","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAX20NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 20: 55 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"20: 55 dB typ. \/ N - 50 Ohm \/ MS3112E10-6P","options":["20: 55 dB typ.","N - 50 Ohm","MS3112E10-6P"],"price":294500,"weight":645,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380038327,"title":"20: 55 dB typ. \/ N - 50 Ohm \/ Output connector","option1":"20: 55 dB typ.","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAX20NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 20: 55 dB typ. \/ N - 50 Ohm \/ Output connector","public_title":"20: 55 dB typ. \/ N - 50 Ohm \/ Output connector","options":["20: 55 dB typ.","N - 50 Ohm","Output connector"],"price":280600,"weight":645,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380071095,"title":"20: 55 dB typ. \/ SMA \/ MS3112E10-6P","option1":"20: 55 dB typ.","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAX20SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 20: 55 dB typ. \/ SMA \/ MS3112E10-6P","public_title":"20: 55 dB typ. \/ SMA \/ MS3112E10-6P","options":["20: 55 dB typ.","SMA","MS3112E10-6P"],"price":294500,"weight":645,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380103863,"title":"20: 55 dB typ. \/ SMA \/ Output connector","option1":"20: 55 dB typ.","option2":"SMA","option3":"Output connector","sku":"LNAX20SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band X-Band LNA - 20: 55 dB typ. \/ SMA \/ Output connector","public_title":"20: 55 dB typ. \/ SMA \/ Output connector","options":["20: 55 dB typ.","SMA","Output connector"],"price":280600,"weight":645,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	X-Band
input frequency band 1	7.25 - 7.75 GHz
noise figure	0.8 dB
Product Revision	A

RF SPECIFICATIONS
conversion gain max	55 dB
conversion gain min	45 dB
conversion gain typ	50 dB
Gain Flatness	4 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.0 : 1
output P1dB	+ 10 dBm
output VSWR	2.0 : 1

ELECTRICAL SPECIFICATIONS
input power	MS3112E10-6P
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
input W/G flange	CPR 112G

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C

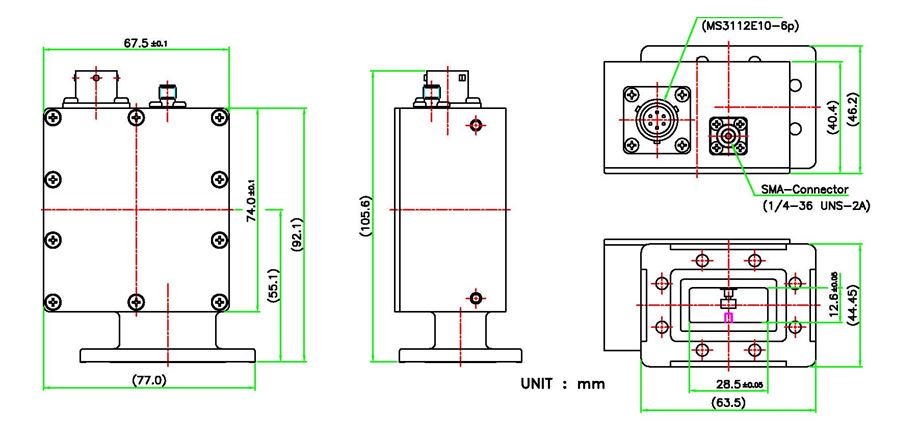

PHYSICAL SPECIFICATIONS
product height	92.1 mm
product length	46.2 mm
product weight	0.55 kg
product width	77 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	0.645 kg
Total Aluminium Content	0.460 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 1.15

RF SPECIFICATIONS
conversion gain max	60 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness	4 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.2 : 1
output P1dB	+ 5 dBm
output VSWR	2.2 : 1

PHYSICAL SPECIFICATIONS
product height	118.0 mm
product length	59 mm
product weight	0.62 kg
product width	70 mm
