Name: 7000 Triple-Band Ka-Band EXT REF PLL LNB
Brand: Norsat International Inc.
SKU: 7000XTAF
Price: 1700.00 USD
Availability: InStock

7000 Triple-Band Ka-Band EXT REF PLL LNB

7000XTAF

7000 Triple-Band Ka-Band EXT REF PLL LNB

7000 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52428155650415,"title":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","option1":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz","option2":"External Reference","option3":"F: 75 Ohm","sku":"7000XTAF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","public_title":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","options":["A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz","External Reference","F: 75 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155683183,"title":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","option1":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz","option2":"External Reference","option3":"N: 50 Ohm","sku":"7000XTAN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","public_title":"A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","options":["A: 17.70 - 18.70 GHz | 18.45 - 19.45 GHz | 19.20 - 20.20 GHz","External Reference","N: 50 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155715951,"title":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ F: 75 Ohm","option1":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz","option2":"External Reference","option3":"F: 75 Ohm","sku":"7000XTBF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ F: 75 Ohm","public_title":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ F: 75 Ohm","options":["B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz","External Reference","F: 75 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155748719,"title":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ N: 50 Ohm","option1":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz","option2":"External Reference","option3":"N: 50 Ohm","sku":"7000XTBN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ N: 50 Ohm","public_title":"B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz \/ External Reference \/ N: 50 Ohm","options":["B: 17.70 - 18.70 GHz | 18.70 - 19.70 GHz | 19.70 - 20.70 GHz","External Reference","N: 50 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155781487,"title":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ F: 75 Ohm","option1":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz","option2":"External Reference","option3":"F: 75 Ohm","sku":"7000XTCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ F: 75 Ohm","public_title":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ F: 75 Ohm","options":["C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz","External Reference","F: 75 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155814255,"title":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ N: 50 Ohm","option1":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz","option2":"External Reference","option3":"N: 50 Ohm","sku":"7000XTCN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ N: 50 Ohm","public_title":"C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz \/ External Reference \/ N: 50 Ohm","options":["C: 17.90 - 18.30 GHz | 18.30 - 19.30 GHz | 19.30 - 20.30 GHz","External Reference","N: 50 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155847023,"title":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ F: 75 Ohm","option1":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz","option2":"External Reference","option3":"F: 75 Ohm","sku":"7000XTDF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ F: 75 Ohm","public_title":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ F: 75 Ohm","options":["D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz","External Reference","F: 75 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155879791,"title":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ N: 50 Ohm","option1":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz","option2":"External Reference","option3":"N: 50 Ohm","sku":"7000XTDN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ N: 50 Ohm","public_title":"D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz \/ External Reference \/ N: 50 Ohm","options":["D: 18.20 - 19.20 GHz | 19.20 - 20.20 GHz | 20.20 - 21.20 GHz","External Reference","N: 50 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155912559,"title":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","option1":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz","option2":"External Reference","option3":"F: 75 Ohm","sku":"7000XTEF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","public_title":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ F: 75 Ohm","options":["E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz","External Reference","F: 75 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52428155945327,"title":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","option1":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz","option2":"External Reference","option3":"N: 50 Ohm","sku":"7000XTEN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"7000 Triple-Band Ka-Band EXT REF PLL LNB - E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","public_title":"E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz \/ External Reference \/ N: 50 Ohm","options":["E: 17.50 - 18.50 GHz | 18.20 - 19.20 GHz | 19.20 - 20.20 GHz","External Reference","N: 50 Ohm"],"price":170000,"weight":480,"compare_at_price":170000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

AUTO-REF: Automatically switches to Internal PLL in the absence of an EXT REF 10MHz signal

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.70 - 18.70 GHz
input frequency band 2	18.45 - 19.45 GHz
input frequency band 3	19.20 - 20.20 GHz
LO frequency 1	16.75 GHz
LO frequency 2	17.50 GHz
LO frequency 3	18.25 GHz
LO stability	Ext Ref
LO type	EXT
noise figure max	1.5 dB
noise figure typ	1.3 dB
number of onboard LOs	Triple-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
tone frequency	22 kHz ± 4 kHz
Product Revision	A

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p max.
input VSWR	2.5 : 1 max.
output P1dB	+ 5 dBm min.
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	450 mA max
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS

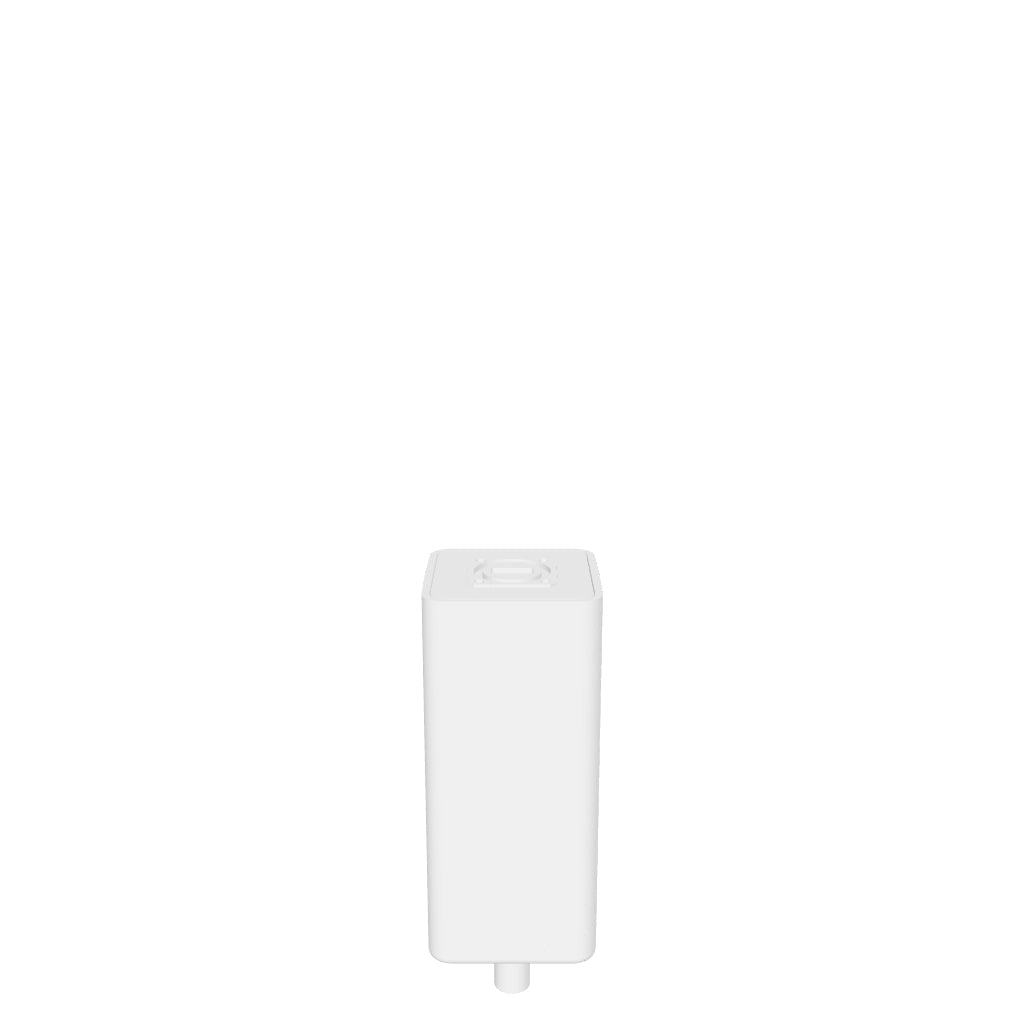

IF connector	F-Connector

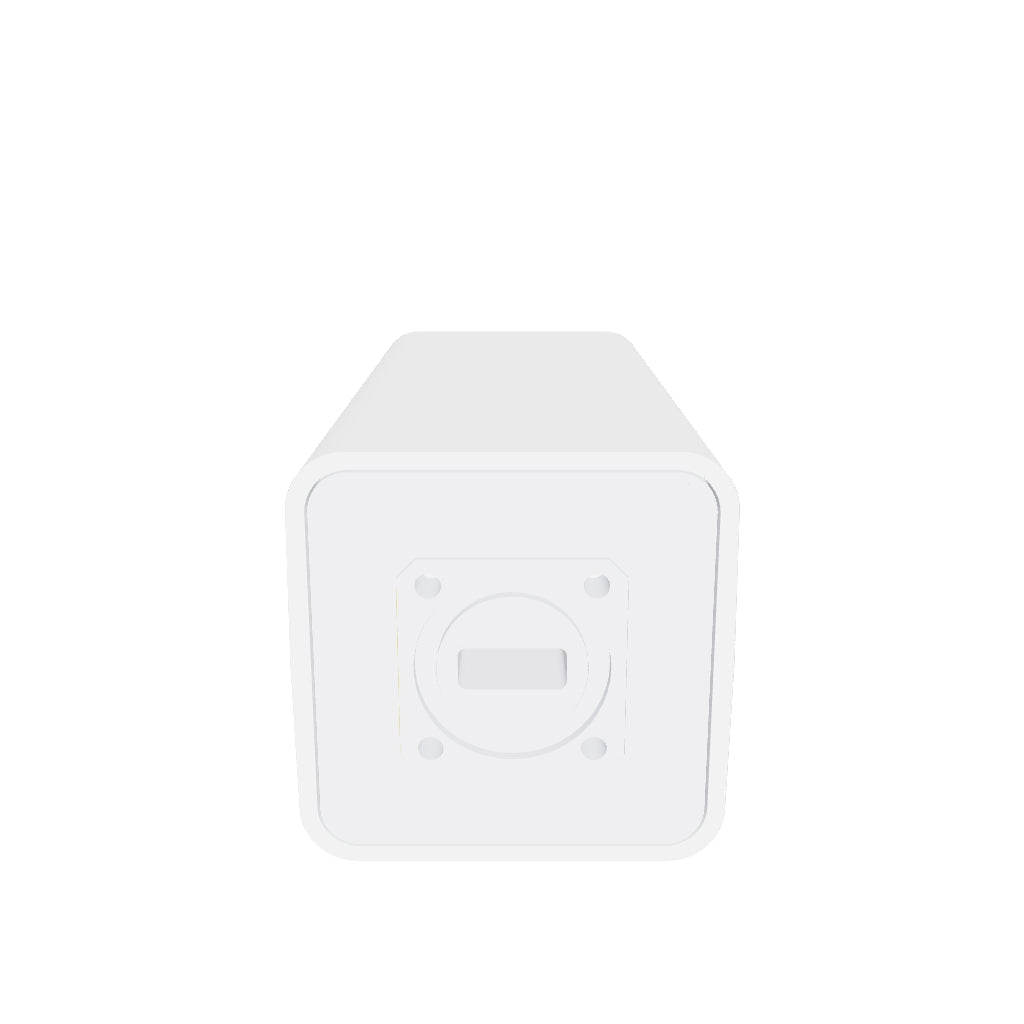

RF input connector	WR-42 Waveguide Grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 100%
IP rating	IP 66
temperature operational	-40°C to +70°C
temperature storage	-45 to +80˚C

PHYSICAL SPECIFICATIONS
product height	1.70 in
product length	4.67 in
product weight	0.4 kg
product width	1.72 in

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Customer Photos

7000 Triple-Band Ka-Band PLL LNB - Customer Photo From Richard Osborne

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

12/03/2024

Richard O.

United Kingdom

Great for small antenna

installed recently on a small receive only antenna. Performing very well. weight and size made it ideal for the small antenna.

7000 Triple-Band Ka-Band PLL LNB

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-42 Waveguide Grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	135 x 68 x 48 mm
Unit Package Weight	0.48 kg
Total Aluminium Content	0.36 kg
Aluminum Country of Smelt and Cast	CN
Total Aluminium Value	$ 0.9
