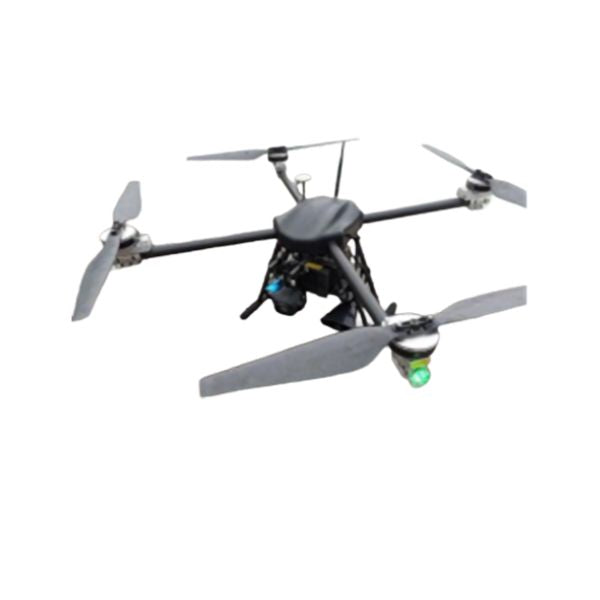

SKYLARK 4-Rotor Drone
SKYLARK 4-Rotor Drone
SKYLARK 4-Rotor Drone
SKYLARK 4-Rotor Drone

SQD133020

SKYLARK 4-Rotor Drone

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
ascending speed 5 m/s max
descending speed 2.5 m/s max
flight altitude ≥5000 m
flight mode Automatic, fixed point, attitude
flight time ≥30 minutes (0 altitude environment, 15kg load)
horizontal flight speed attitude mode 20 m/s
horizontal flight speed positioning mode 5 m/s
hovering accuracy horizontal ± 0.5 m (GPS positioning is working normally)
hovering accuracy vertical ± 0.5 m (GPS positioning is working normally)
operation time From transport state to flight state ≤5 minutes (2 persons)
rotational angular velocity 120° /s max
standard light time ≥80 minutes (no load)
task loads Multiple interfaces can be provided to mount multiple task loads at the same time
tilt angle attitude mode 30° max
tilt angle positioning mode 30° max
wind speed 6 gusts max
Product Revision A
INTERFACE SPECIFICATIONS
operation mode app ground station / remote control
satellite positioning module GPS/GLONASS or BDSS/GLONASS dual-mode GPS Beidou satellite
ENVIRONMENTAL SPECIFICATIONS
working humidity < 90%
PHYSICAL SPECIFICATIONS
blade specification Diameter x Pitch: 34 x 11 inch
material Carbon fiber material, light weight, high strength, with corrosion resistance
maximum load 20 kg
product dimensions height 450 mm
product dimensions length 1080 mm
product dimensions width 1080 mm
unfold product height 450 mm
unfold product length 1080 mm
unfold product width 1080 mm
wheelbase 1330 mm
