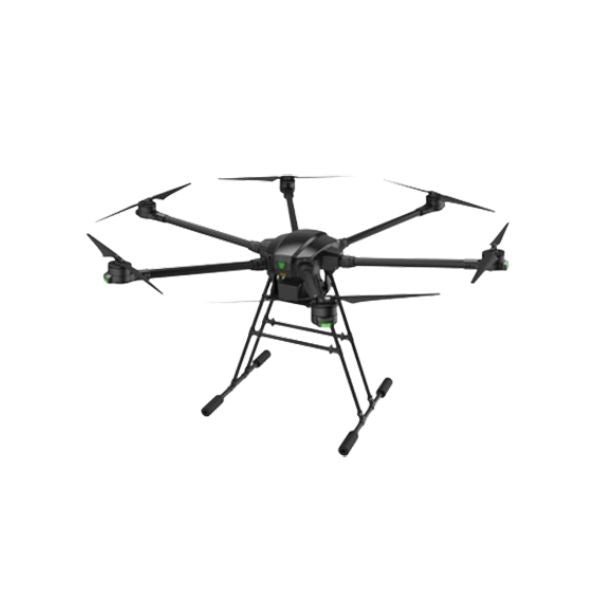

SKYLARK Tethered Drone
SKYLARK Tethered Drone
SKYLARK Tethered Drone
SKYLARK Tethered Drone

STD135005

SKYLARK Tethered Drone

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
flight altitude 150 m
horizontal flight altitude 150 m
Product Revision A
ELECTRICAL SPECIFICATIONS
adjustable power range 0 - 4000 W
lamp beads 18 pieces
lamp bead lumen 20000 lumens (per bead)
lighting power ≥600 W
light range 6000 square meters max
light weight ≥120 g/piece
power 0-4000 W adjustable
power supply ≥3.5 kW
protection function The input power supply has leakage protection function; The output power supply has overload protection, overvoltage protection and overtemperature protection. For safety, no cutting or modification of the drone battery can be done
rated power 4 kw
single brightness ≥20000 LM x 4
standby battery capacity 16000mAH Battery life (≥45 minutes)
INTERFACE SPECIFICATIONS
alarm light alert When the system has errors or parameters are out of the set range, it will beep and blink
communication distance ≥5000 m
control functions Set the task height one-key take-off, one-key return, one-key emergency stop
ground system integration The use of all-in-one, including automatic take-up system, power supply system, power management system; Simple operation, power one-key start and stop, automatic take-up mode one-key start and stop
remote control display size ≥5.5 inches; comes with HD display, electronic fence function, through the flight height and flight distance range parameters to set, set electronic fence to ensure flight safety
winch control knob Control winch take-up force, adjust the gear according to the size of the aircraft
PHYSICAL SPECIFICATIONS
cable length ≥110 m
maximum load 5 kg
power module dimensions ≤160 × 10 × 42 mm
power supply weight ≤620 g
product dimensions height 290 mm
product dimensions length 460 mm
product dimensions width 400 mm
product weight ≤17 kg (including cable)
tethered cable tensile force 100 kg max
wheelbase ≤1350 mm (six-rotor UAV)
