ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC
ATOM 40W Ku-Band BUC

ATOM-100146

ATOM 40W Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Extended Ku-Band
color FS30219
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 40W
Product Revision D
RF SPECIFICATIONS
gain flatness (40MHz) ≤ 2.0 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in Tx, -65 dBm/Hz in Rx
output power p1dB 46 dBm min.
output power psat 47 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 1000kHz offset max -102 dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 10kHz offset max -82 dBc/Hz
phase noise 1kHz offset max -72 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 305 W max.
power requirements +18 to +56V DC
INTERFACE SPECIFICATIONS
EMI EMC filter MIL-STD-461
IF connector N-Connector
M&C mute control Fully configurable (mute enable: high or low, mute default: enabled or disabled)
Low: 0.0 - 0.8V
High: 3.0 - 5.0V
m and c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins 58-533723-10P
m and c interface RS-485 & RS-232
RF output connector WR-75 waveguide grooved
surge protection MIL-STD-1275D
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
IP rating IP 65
temperature operational -40°C to +60°C
temperature storage -50°C to +80°C

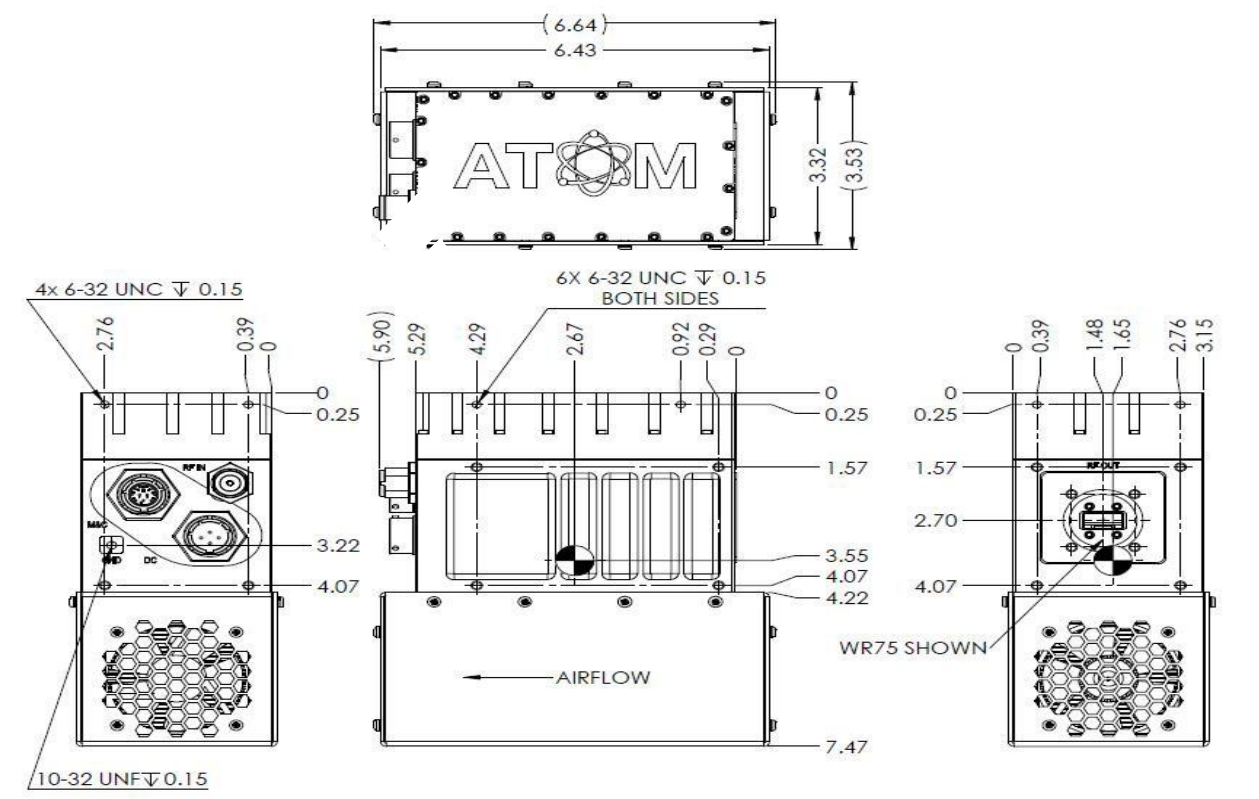

PHYSICAL SPECIFICATIONS
cooling Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
finish Polyurethane Paint (UV) per MIL-PRF-85285D
product height 193 mm
product length 169 mm
product weight 2.5 kg
product width 90 mm
ACCESSORIES
optional configuration add ons FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS480-AT1-(NA/UK/EU/IEC/CN/AU)
