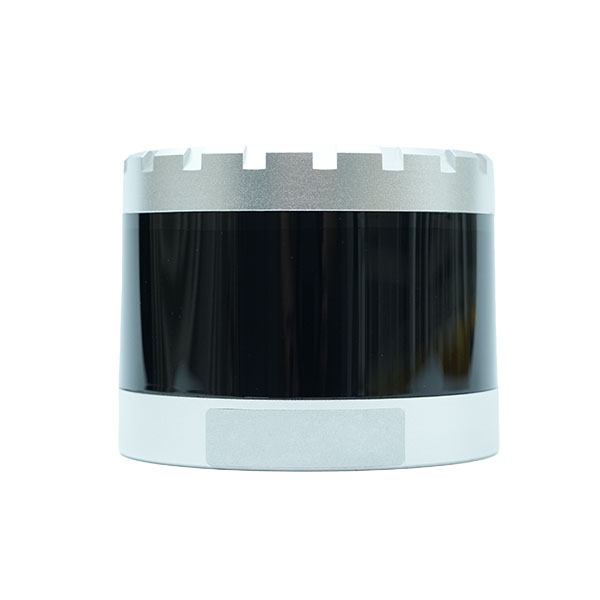

LUMENIX 16-Line Mechanical LiDAR
LUMENIX 16-Line Mechanical LiDAR
LUMENIX 16-Line Mechanical LiDAR
LUMENIX 16-Line Mechanical LiDAR
LUMENIX 16-Line Mechanical LiDAR
LUMENIX 16-Line Mechanical LiDAR

LUMRD150-03

LUMENIX 16-Line Mechanical LiDAR

LUMENIX Industrial

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Accelerate world autonomous operation development (Robotics + Autonomous driving vehicles); Equipped with high accuracy IMU (Inertial Measurement Unit) to make AMR do Inertial Positioning; Good at target navigation due to it features 0° horizontal line to detect target perfectly

KEY SPECIFICATIONS
data rates 288000 points/sec
horizontal FOV 360°
horizontal resolution 0.1°/0.2°/0.4°
laser wavelength 905nm
number of channels 16
operating range 70m@10% Reflectivity
ranging accuracy ±2cm
ranging distance 0.3 - 150m
scanning frequency 5Hz/10Hz/20Hz
vertical FOV 30°（-16°~14°）
vertical resolution 2°
Product Revision A
ELECTRICAL SPECIFICATIONS
power consumption 12W
INTERFACE SPECIFICATIONS
communication interface Ethernet
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
laser safety Class I (eye safety)
temperature operational -20°C to +60°C
temperature storage -40℃ - 85℃

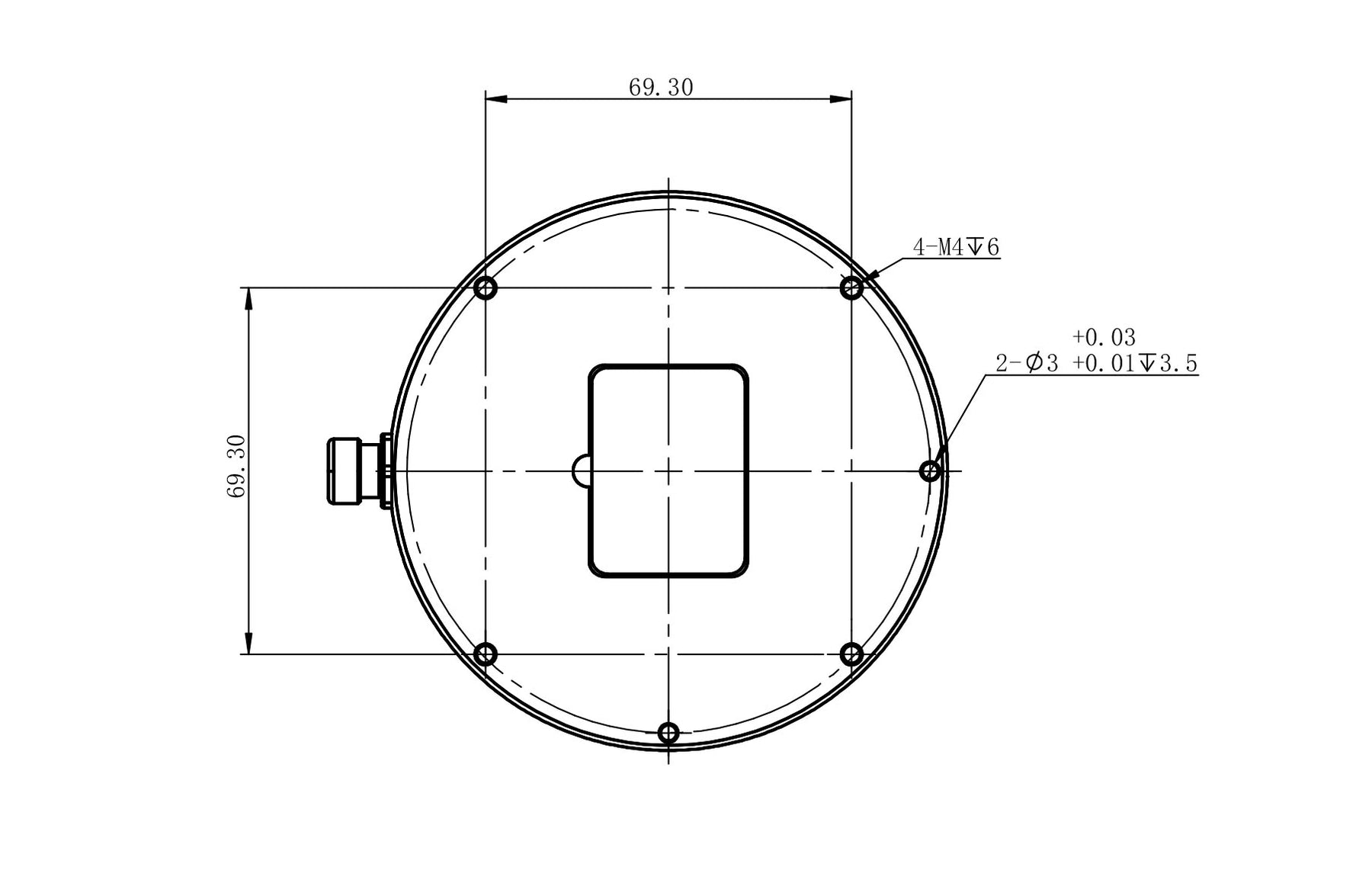

PHYSICAL SPECIFICATIONS
product height 81.5 mm
product length 105.7 mm
product weight 0.91 kg
product width 81.5 mm
