LUMRD030-03

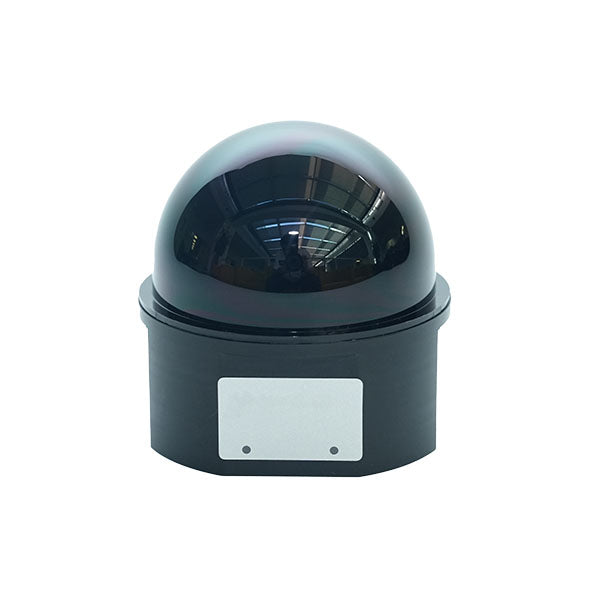

LUMENIX 32-Line Spherical LiDAR

LUMENIX Industrial

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



63.5 °× 360 ° FOV, 192K point frequency, and 30 meters @ 10% ranging distance make the robot more flexible and agile in complex environments, adapting to various application scenarios. Linear scanning method simplifies the difficulty of further algorithm development for customers, and improves the scalability and customization ability of the system.

KEY SPECIFICATIONS
data rates 192000 points/sec
horizontal FOV 360°
horizontal resolution 0.6°
laser wavelength 905nm
number of channels 32
operating range 30m@10% Reflectivity
ranging accuracy ±3cm
ranging distance 0.3m - 50m
scanning frequency 10Hz
vertical FOV 63.5°（ -12.76°~50.76°）
vertical resolution 2°
Product Revision A
ELECTRICAL SPECIFICATIONS
power consumption 6W
INTERFACE SPECIFICATIONS
communication interface Ethernet
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
laser safety Class I (eye safety)
temperature operational -20°C to +60°C
temperature storage -40℃ - 85℃

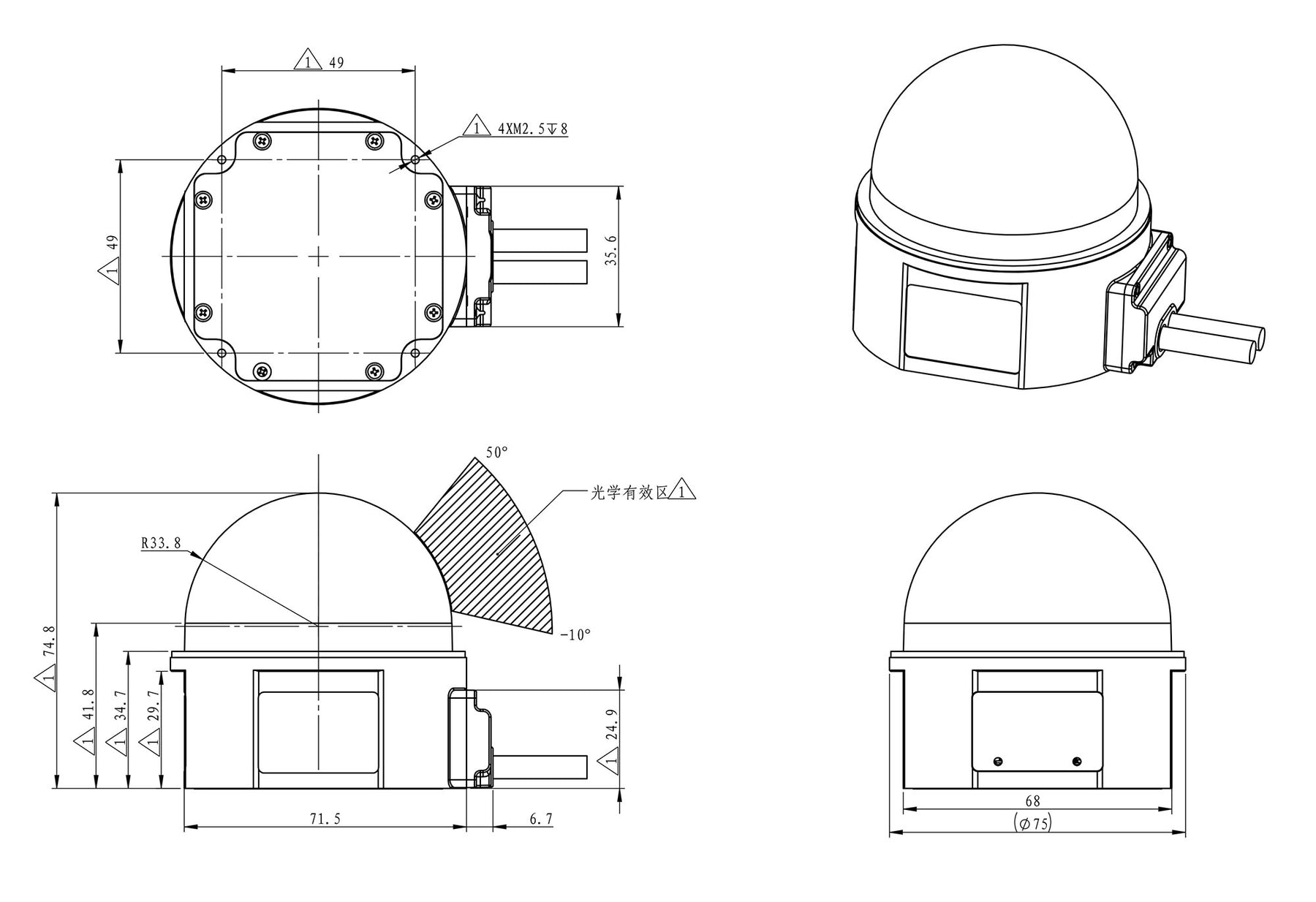

PHYSICAL SPECIFICATIONS
product height 75 mm
product length 75 mm
product weight 0.5 kg
product width 75 mm
