Name: 1U-19'' Indoor Unit
Brand: Norsat International Inc.
SKU: RS-IDU-NA
Price: 4800.00 USD
Availability: InStock

RS-IDU-NA

1U-19'' Indoor Unit

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":41954874622135,"title":"North America","option1":"North America","option2":null,"option3":null,"sku":"RS-IDU-NA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1U-19'' Indoor Unit - North America","public_title":"North America","options":["North America"],"price":480000,"weight":450,"compare_at_price":480000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41954874818743,"title":"Europe","option1":"Europe","option2":null,"option3":null,"sku":"RS-IDU-EU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1U-19'' Indoor Unit - Europe","public_title":"Europe","options":["Europe"],"price":480000,"weight":450,"compare_at_price":480000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41954874851511,"title":"Australia","option1":"Australia","option2":null,"option3":null,"sku":"RS-IDU-AU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1U-19'' Indoor Unit - Australia","public_title":"Australia","options":["Australia"],"price":20000,"weight":450,"compare_at_price":480000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41954874884279,"title":"United Kingdom","option1":"United Kingdom","option2":null,"option3":null,"sku":"RS-IDU-UK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1U-19'' Indoor Unit - United Kingdom","public_title":"United Kingdom","options":["United Kingdom"],"price":480000,"weight":450,"compare_at_price":480000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41954874917047,"title":"China","option1":"China","option2":null,"option3":null,"sku":"RS-IDU-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1U-19'' Indoor Unit - China","public_title":"China","options":["China"],"price":480000,"weight":450,"compare_at_price":480000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

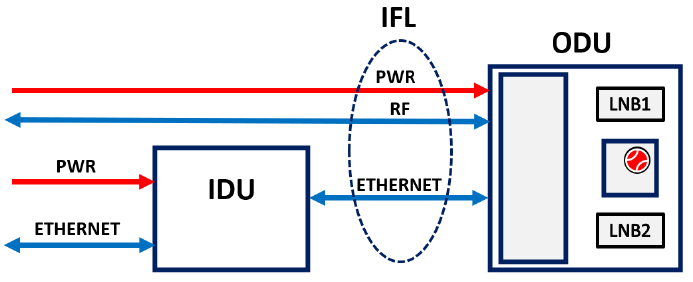

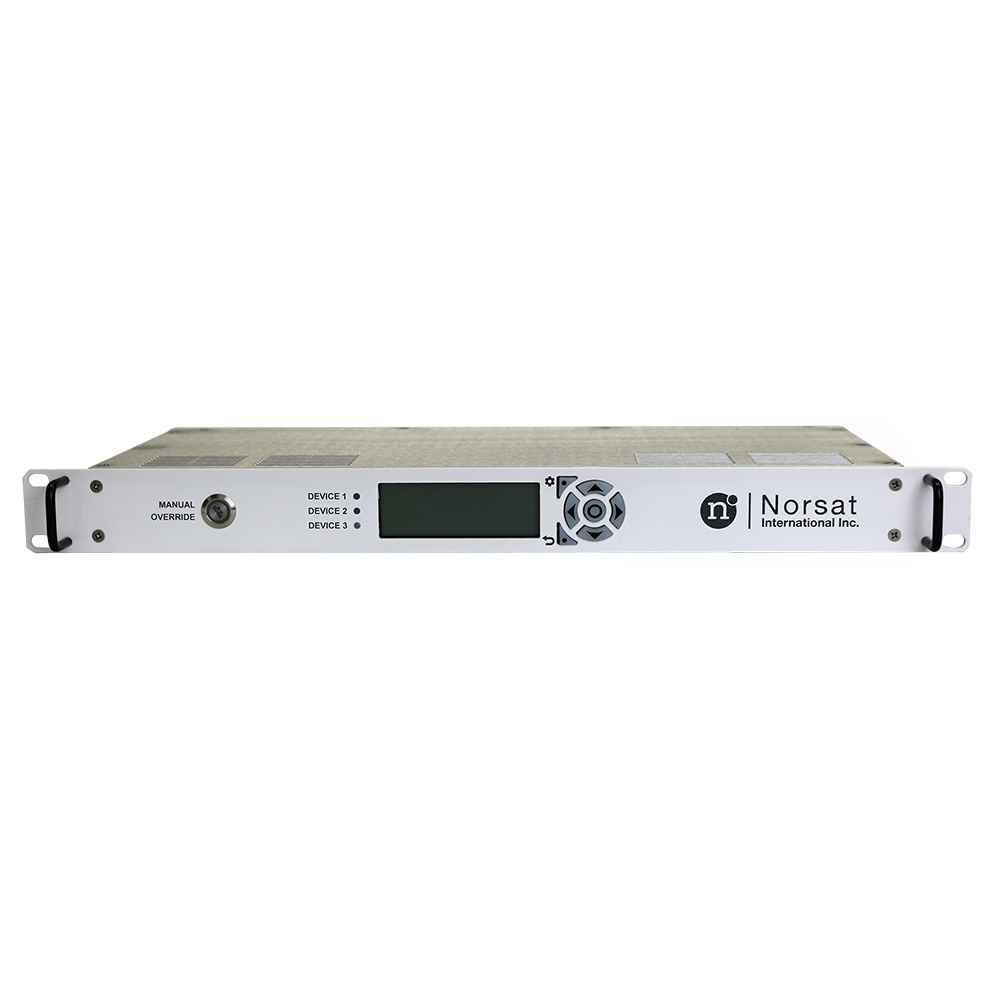

The IDU is an optional add-on to the RSW that will allow a user to interface with the Redundancy Switch (RSW) over an ethernet connection. The IDU will support monitoring and control functionality, as well as provide an audible alarm in the case of a fault on the active device. The IDU shall consist of a 1 RU enclosure, LCD, buttons, indicator LEDs, and a dedicated manual override button.

The IDU shall support the following RSW configurations without any hardware changes:

LNB 1:1 RSW
LNB 1:2 RSW
BUC 1:1 RSW

ELECTRICAL SPECIFICATIONS
power	100 - 240 VAC (50 - 60 Hz)

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-5°C to +45°C

PHYSICAL SPECIFICATIONS
product weight	1.56 kg

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	-
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	-
Warranty	3 years
Unit Package Dimensions	527 mm x 324 mm x 178 mm
Unit Package Weight	0.45 kg
Total Aluminium Content	1.053 kg
Aluminum Country of Smelt and Cast	CA
Total Aluminium Value	$ 2.6325
