PUD100L

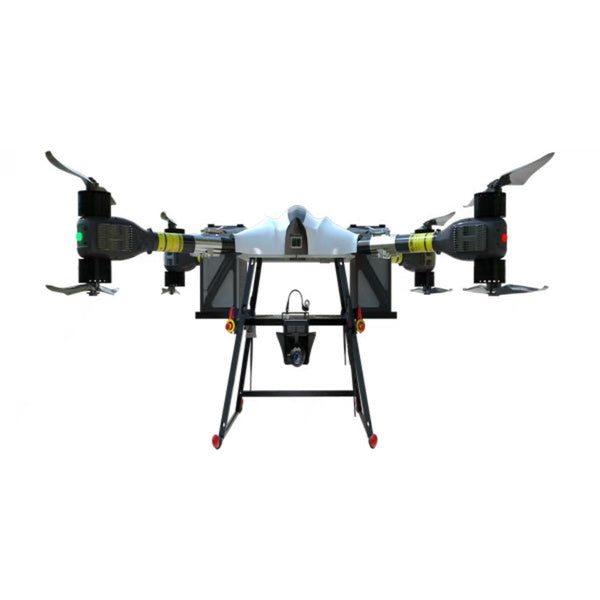

Phoenix Series Long-endurance Fire-fighting and Rescue Drone

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
ascending speed 12 m/s
ceiling 500 m
descending speed 7 m/s
hovering accuracy horizontal -0.1m < x < 0.1 m
hovering accuracy vertical -0.5 m < x < 0.5 m
maximum payload 100 kg
maximum taking-off weight 180 kg
optical fiber No
payload Camera Gimbal/Window Breaker/Launching Device / Laser Aiming Device/Rescue Projectile Launcher
signal transmission 10 km
support antenna Dual Omnidirectional Antennas
type Long endurance fire fighting and rescue drone
UAV Type Quad-axis, Octo-propeller Multirotor UAV
WIFI transmission frequency 2.4 GHz
Product Revision A
ELECTRICAL SPECIFICATIONS
power 24 - 25 kW
power mode Battery-powered
RC control frequency 1.4GHz, 2.4GHz, 5.8GHz
voltage 100V
voltage for payload 12V
ENVIRONMENTAL SPECIFICATIONS
IP rating IP54
temperature operational -20°C to 55°C
temperature storage -5°C to 50°C
wind resistance 17.5 m/s
PHYSICAL SPECIFICATIONS
control method Handheld Ground Station Control
fold product height 690 mm
fold product length 1030 mm
fold product width 1405 mm
mission payload Fire Hose Mount / Dry Powder Extinguishing Payload / Stored-Pressure Fire Extinguisher / Fire Hose Deployment / Rescue Projectile Launcher / Emergency Window Breach Launcher
product height 690 mm
product length 2738 mm
product weight 80 kg
product width 2738 mm
releasing cable No
retracting cable No
unfold product height 690 mm
unfold product length 2738 mm
unfold product width 2738 mm
