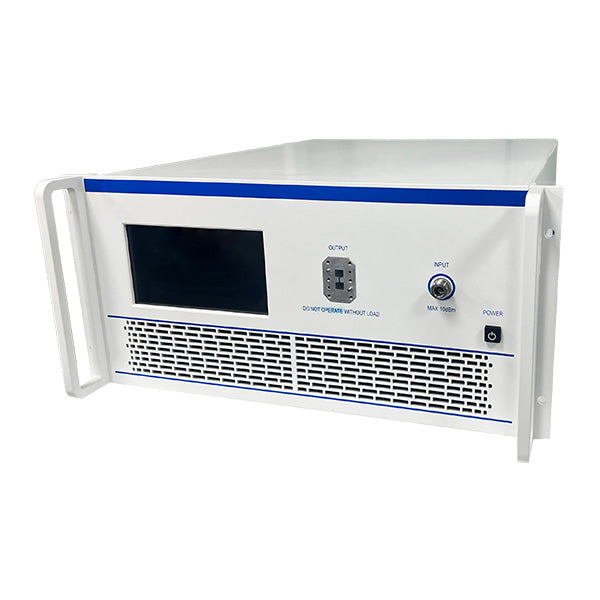

Name: RF High Power Amplifier Systems 26.5 - 40 GHz
Brand: Norsat International Inc.
SKU: HPASC064
Price: 24786.67 USD
Availability: InStock

RF High Power Amplifier Systems 26.5 - 40 GHz

HPASC064

RF High Power Amplifier Systems 26.5 - 40 GHz

RF High Power Amplifier

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51697472438639,"title":"40 dBm","option1":"40 dBm","option2":null,"option3":null,"sku":"HPASC064","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 40 dBm","public_title":"40 dBm","options":["40 dBm"],"price":2478667,"weight":6500,"compare_at_price":2478667,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472471407,"title":"41 dBm","option1":"41 dBm","option2":null,"option3":null,"sku":"HPASC065","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 41 dBm","public_title":"41 dBm","options":["41 dBm"],"price":3510000,"weight":22000,"compare_at_price":3510000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472504175,"title":"43 dBm","option1":"43 dBm","option2":null,"option3":null,"sku":"HPASC066","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 43 dBm","public_title":"43 dBm","options":["43 dBm"],"price":4541333,"weight":33000,"compare_at_price":4541333,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472536943,"title":"47 dBm","option1":"47 dBm","option2":null,"option3":null,"sku":"HPASC067","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 47 dBm","public_title":"47 dBm","options":["47 dBm"],"price":11679778,"weight":38000,"compare_at_price":11679778,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472569711,"title":"50 dBm","option1":"50 dBm","option2":null,"option3":null,"sku":"HPASC068","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 50 dBm","public_title":"50 dBm","options":["50 dBm"],"price":18572667,"weight":38000,"compare_at_price":18572667,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472602479,"title":"51 dBm","option1":"51 dBm","option2":null,"option3":null,"sku":"HPASC069","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 51 dBm","public_title":"51 dBm","options":["51 dBm"],"price":19812000,"weight":38000,"compare_at_price":19812000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472635247,"title":"52 dBm","option1":"52 dBm","option2":null,"option3":null,"sku":"HPASC070","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 52 dBm","public_title":"52 dBm","options":["52 dBm"],"price":19812000,"weight":38000,"compare_at_price":19812000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472668015,"title":"53 dBm","option1":"53 dBm","option2":null,"option3":null,"sku":"HPASC071","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 53 dBm","public_title":"53 dBm","options":["53 dBm"],"price":40444444,"weight":0,"compare_at_price":40444444,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472700783,"title":"57.5 dBm","option1":"57.5 dBm","option2":null,"option3":null,"sku":"HPASC072","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 26.5 - 40 GHz - 57.5 dBm","public_title":"57.5 dBm","options":["57.5 dBm"],"price":107307778,"weight":0,"compare_at_price":107307778,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
gain min	40 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	40 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ALC precision	±0.5 dB max.
ESD sensitivity(HBm)	Class 0, passed 150V
harmonics	-25 dBc max.
input VSWR max	2.0 : 1
output P1dB typ	37 dBm
RF input power	10 dBm
spurious	-50 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
impedance	50 Ohms
power consumption	150Watts@max.
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
remote control	LNA

INTERFACE SPECIFICATIONS
DC power interface	Y50X-10803
input connector	2.92 Female
output connector	WR-28

ENVIRONMENTAL SPECIFICATIONS
altitude	50000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +50°C
temperature storage	-40°C to +65°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	200 x 200 x 85 mm
product weight	5 kg

INTERFACE SPECIFICATIONS
communication functions	RS422/LAN,Gain adjustment, State query
communication interfaces	J30J-9ZKP
forward/reverse coupling connector	2.92 Female/2.92 Female
input connector	N Female
output connector	WR-28

INTERFACE SPECIFICATIONS
AC power interface	Air switch
communication functions	RS422/LAN
input connector	N Female
output connector	WR-34

INTERFACE SPECIFICATIONS
communication functions	RS422/LAN/GPIB/USB, LCD Screen Display
communication interfaces	RJ45/DB9/GPIB
forward/reverse coupling connector	2.92 Female/2.92 Female
input connector	2.92 Female
output connector	WR-28

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness typ	±3 dB
harmonics	-20 dBc max.
input VSWR max	2.0 : 1
RF input power	10 dBm
spurious	-60 dBc max.

KEY SPECIFICATIONS
gain min	46 dB
gain typ	49 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	43 dBm
transmission mode	Continuous Wave
Product Revision	A

KEY SPECIFICATIONS
gain min	47 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	47 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness max	±5 dB
gain flatness typ	±4 dB
harmonics	-30 dBc max.
input VSWR max	2.0 : 1
RF input power	10 dBm
spurious	-50 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	Power setting On/Off
impedance	50 Ohms
power consumption	1000Watts@max.
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/LAN, LCD Screen Display
communication interfaces	RJ45/DB9
input connector	2.92 Female
output connector	WR-28

KEY SPECIFICATIONS
gain min	50 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	50 dBm
transmission mode	Continuous Wave
Product Revision	A

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. Output Power Adjust
display fundctions	Display the output power, reflectedpower and fault informations.
impedance	50 Ohms
power consumption	2500Watts@max.
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/Ethernet
communication interfaces	RJ45/DB9
input connector	2.92 Female
output connector	WR-28

KEY SPECIFICATIONS
gain min	52 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	51 dBm
output Psat typ	53 dBm
transmission mode	Continuous Wave
Product Revision	A

KEY SPECIFICATIONS
gain min	51 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	52 dBm
transmission mode	Continuous Wave
Product Revision	A

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. Psat adjust
impedance	50 Ohms
power consumption	1850Watts@max.
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

KEY SPECIFICATIONS
gain min	53 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	53 dBm
transmission mode	Continuous Wave
Product Revision	A

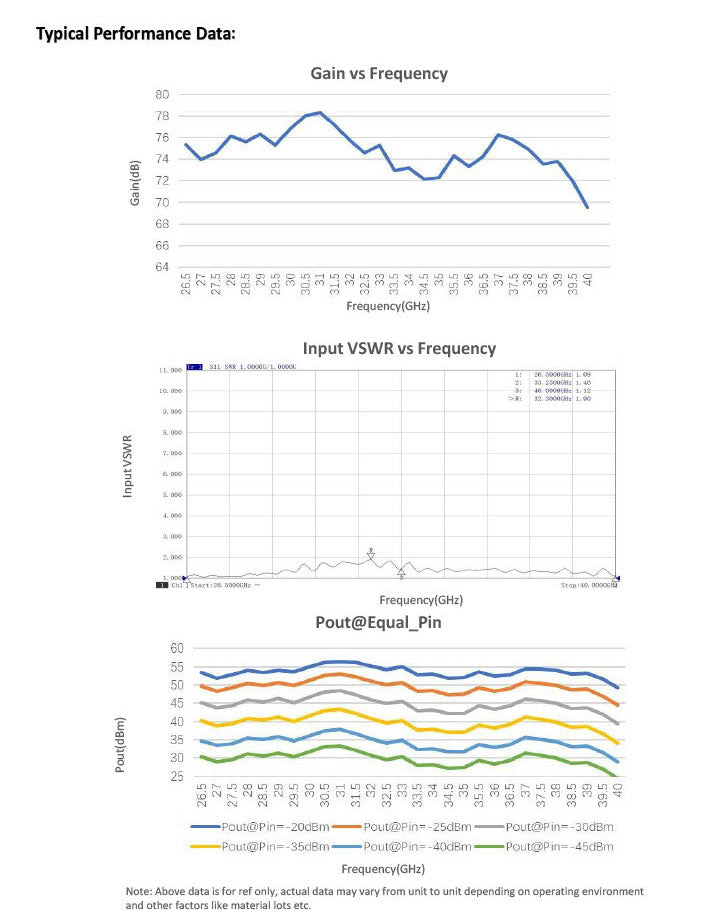

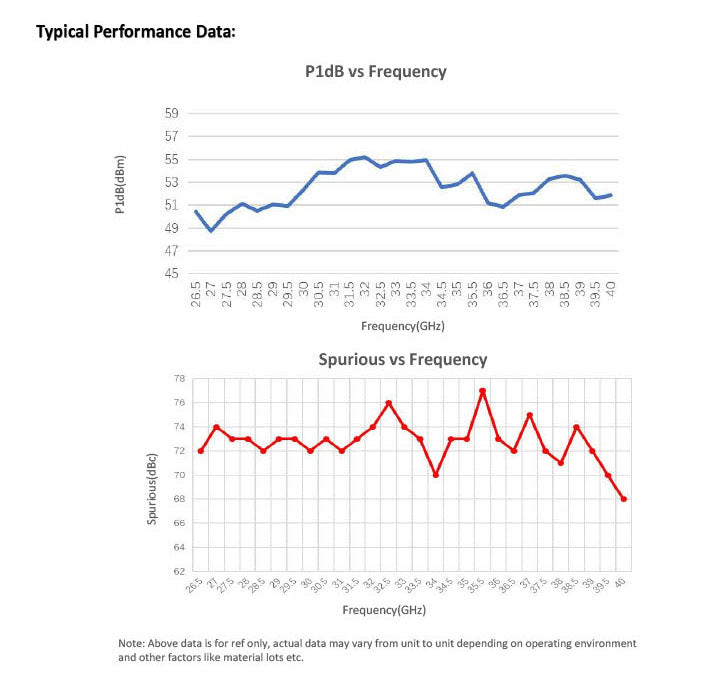

KEY SPECIFICATIONS
gain min	57 dB
input frequency band 1	26.5 - 40 GHz
number of bands	Single-Band
output Psat min	57 dBm
transmission mode	Continuous Wave
Product Revision	A

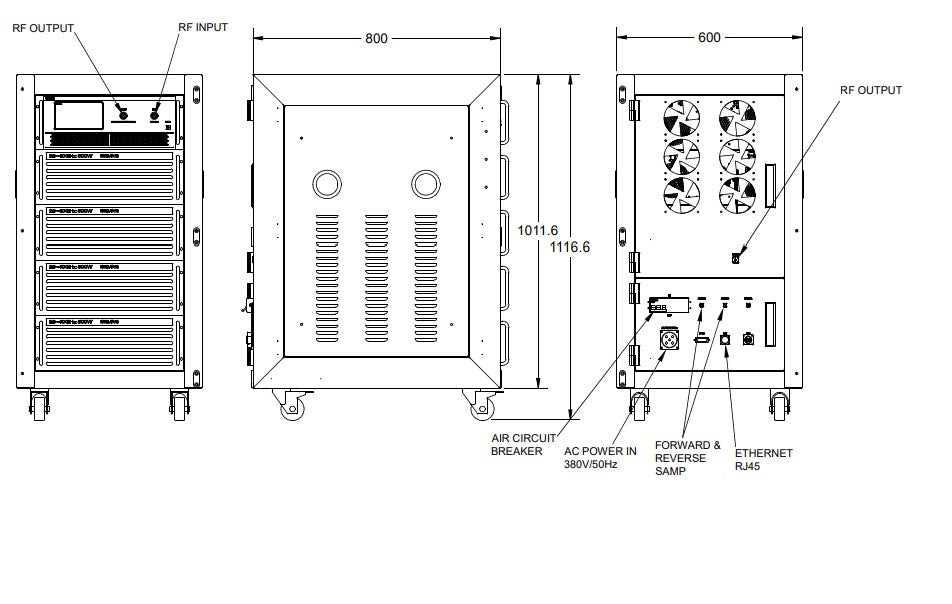

PHYSICAL SPECIFICATIONS
cooling system	Front to back forced air cooling fans makes this ideal for usage in test equipment racks
product dimensions	19 Inch 20U mm
product weight	250 kg

INFORMATION
HS Code	8517799000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	3A001.b.4.d
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	290 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
