Name: Single-Band L-Band LNA
Brand: Norsat International Inc.
SKU: LNAL10NF
Price: 2902.00 USD
Availability: InStock

LNAL10NF

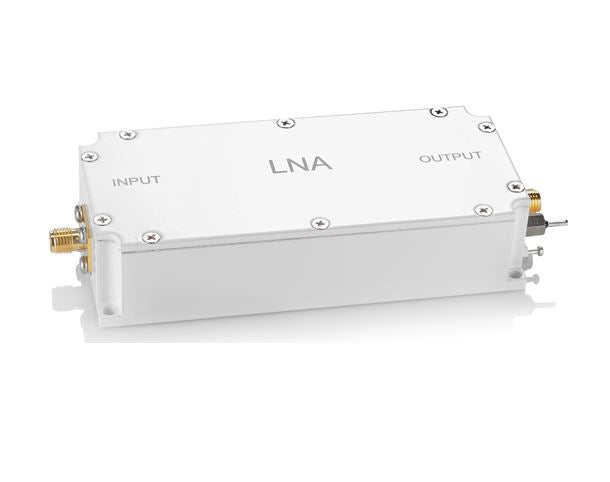

Single-Band L-Band LNA

LNA Series

$2,902.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

(Scroll to see specifications and documents)

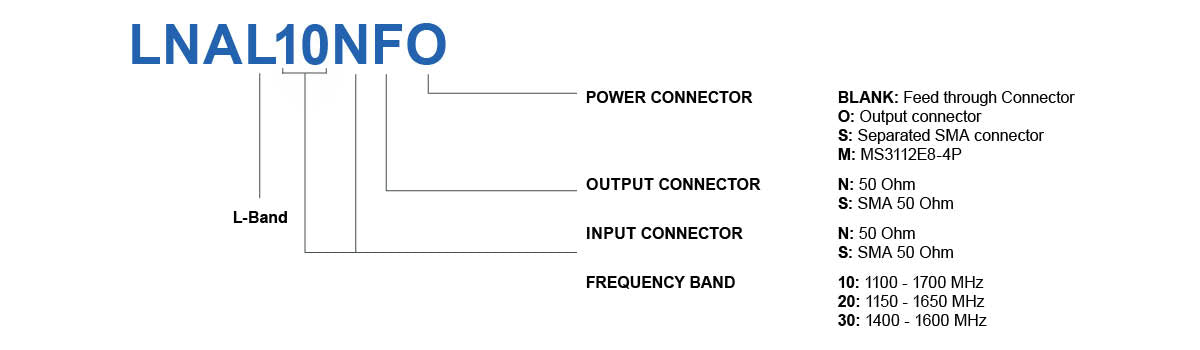

[{"id":43575021797559,"title":"10: 1100 - 1700 MHz \/ N Connector \/ F Connector","option1":"10: 1100 - 1700 MHz","option2":"N Connector","option3":"F Connector","sku":"LNAL10NF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ N Connector \/ F Connector","public_title":"10: 1100 - 1700 MHz \/ N Connector \/ F Connector","options":["10: 1100 - 1700 MHz","N Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021764791,"title":"10: 1100 - 1700 MHz \/ N Connector \/ N Connector","option1":"10: 1100 - 1700 MHz","option2":"N Connector","option3":"N Connector","sku":"LNAL10NN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ N Connector \/ N Connector","public_title":"10: 1100 - 1700 MHz \/ N Connector \/ N Connector","options":["10: 1100 - 1700 MHz","N Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021732023,"title":"10: 1100 - 1700 MHz \/ N Connector \/ SMA Connector","option1":"10: 1100 - 1700 MHz","option2":"N Connector","option3":"SMA Connector","sku":"LNAL10NS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ N Connector \/ SMA Connector","public_title":"10: 1100 - 1700 MHz \/ N Connector \/ SMA Connector","options":["10: 1100 - 1700 MHz","N Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021699255,"title":"10: 1100 - 1700 MHz \/ SMA Connector \/ F Connector","option1":"10: 1100 - 1700 MHz","option2":"SMA Connector","option3":"F Connector","sku":"LNAL10SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ SMA Connector \/ F Connector","public_title":"10: 1100 - 1700 MHz \/ SMA Connector \/ F Connector","options":["10: 1100 - 1700 MHz","SMA Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021666487,"title":"10: 1100 - 1700 MHz \/ SMA Connector \/ N Connector","option1":"10: 1100 - 1700 MHz","option2":"SMA Connector","option3":"N Connector","sku":"LNAL10SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ SMA Connector \/ N Connector","public_title":"10: 1100 - 1700 MHz \/ SMA Connector \/ N Connector","options":["10: 1100 - 1700 MHz","SMA Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021633719,"title":"10: 1100 - 1700 MHz \/ SMA Connector \/ SMA Connector","option1":"10: 1100 - 1700 MHz","option2":"SMA Connector","option3":"SMA Connector","sku":"LNAL10SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 10: 1100 - 1700 MHz \/ SMA Connector \/ SMA Connector","public_title":"10: 1100 - 1700 MHz \/ SMA Connector \/ SMA Connector","options":["10: 1100 - 1700 MHz","SMA Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021273271,"title":"20: 1150 - 1650 MHz \/ N Connector \/ F Connector","option1":"20: 1150 - 1650 MHz","option2":"N Connector","option3":"F Connector","sku":"LNAL20NF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ N Connector \/ F Connector","public_title":"20: 1150 - 1650 MHz \/ N Connector \/ F Connector","options":["20: 1150 - 1650 MHz","N Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021306039,"title":"20: 1150 - 1650 MHz \/ N Connector \/ N Connector","option1":"20: 1150 - 1650 MHz","option2":"N Connector","option3":"N Connector","sku":"LNAL20NN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ N Connector \/ N Connector","public_title":"20: 1150 - 1650 MHz \/ N Connector \/ N Connector","options":["20: 1150 - 1650 MHz","N Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021338807,"title":"20: 1150 - 1650 MHz \/ N Connector \/ SMA Connector","option1":"20: 1150 - 1650 MHz","option2":"N Connector","option3":"SMA Connector","sku":"LNAL20NS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ N Connector \/ SMA Connector","public_title":"20: 1150 - 1650 MHz \/ N Connector \/ SMA Connector","options":["20: 1150 - 1650 MHz","N Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021371575,"title":"20: 1150 - 1650 MHz \/ SMA Connector \/ F Connector","option1":"20: 1150 - 1650 MHz","option2":"SMA Connector","option3":"F Connector","sku":"LNAL20SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ SMA Connector \/ F Connector","public_title":"20: 1150 - 1650 MHz \/ SMA Connector \/ F Connector","options":["20: 1150 - 1650 MHz","SMA Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382168247,"title":"20: 1150 - 1650 MHz \/ SMA Connector \/ N Connector","option1":"20: 1150 - 1650 MHz","option2":"SMA Connector","option3":"N Connector","sku":"LNAL20SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ SMA Connector \/ N Connector","public_title":"20: 1150 - 1650 MHz \/ SMA Connector \/ N Connector","options":["20: 1150 - 1650 MHz","SMA Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021404343,"title":"20: 1150 - 1650 MHz \/ SMA Connector \/ SMA Connector","option1":"20: 1150 - 1650 MHz","option2":"SMA Connector","option3":"SMA Connector","sku":"LNAL20SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 20: 1150 - 1650 MHz \/ SMA Connector \/ SMA Connector","public_title":"20: 1150 - 1650 MHz \/ SMA Connector \/ SMA Connector","options":["20: 1150 - 1650 MHz","SMA Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021600951,"title":"30: 1400 - 1600 MHz \/ N Connector \/ F Connector","option1":"30: 1400 - 1600 MHz","option2":"N Connector","option3":"F Connector","sku":"LNAL30NF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ N Connector \/ F Connector","public_title":"30: 1400 - 1600 MHz \/ N Connector \/ F Connector","options":["30: 1400 - 1600 MHz","N Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021568183,"title":"30: 1400 - 1600 MHz \/ N Connector \/ N Connector","option1":"30: 1400 - 1600 MHz","option2":"N Connector","option3":"N Connector","sku":"LNAL30NN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ N Connector \/ N Connector","public_title":"30: 1400 - 1600 MHz \/ N Connector \/ N Connector","options":["30: 1400 - 1600 MHz","N Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021535415,"title":"30: 1400 - 1600 MHz \/ N Connector \/ SMA Connector","option1":"30: 1400 - 1600 MHz","option2":"N Connector","option3":"SMA Connector","sku":"LNAL30NS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ N Connector \/ SMA Connector","public_title":"30: 1400 - 1600 MHz \/ N Connector \/ SMA Connector","options":["30: 1400 - 1600 MHz","N Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021502647,"title":"30: 1400 - 1600 MHz \/ SMA Connector \/ F Connector","option1":"30: 1400 - 1600 MHz","option2":"SMA Connector","option3":"F Connector","sku":"LNAL30SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ SMA Connector \/ F Connector","public_title":"30: 1400 - 1600 MHz \/ SMA Connector \/ F Connector","options":["30: 1400 - 1600 MHz","SMA Connector","F Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021469879,"title":"30: 1400 - 1600 MHz \/ SMA Connector \/ N Connector","option1":"30: 1400 - 1600 MHz","option2":"SMA Connector","option3":"N Connector","sku":"LNAL30SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ SMA Connector \/ N Connector","public_title":"30: 1400 - 1600 MHz \/ SMA Connector \/ N Connector","options":["30: 1400 - 1600 MHz","SMA Connector","N Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43575021437111,"title":"30: 1400 - 1600 MHz \/ SMA Connector \/ SMA Connector","option1":"30: 1400 - 1600 MHz","option2":"SMA Connector","option3":"SMA Connector","sku":"LNAL30SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band L-Band LNA - 30: 1400 - 1600 MHz \/ SMA Connector \/ SMA Connector","public_title":"30: 1400 - 1600 MHz \/ SMA Connector \/ SMA Connector","options":["30: 1400 - 1600 MHz","SMA Connector","SMA Connector"],"price":290200,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	L-Band
input frequency band 1	1100 - 1700 MHz
Product Revision	B

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness	2 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.0 : 1
output P1dB	+ 10 dBm
output VSWR	2.0 : 1

ELECTRICAL SPECIFICATIONS
input power	Pin through connector
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
RF input connector	N - 50 Ohm

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS

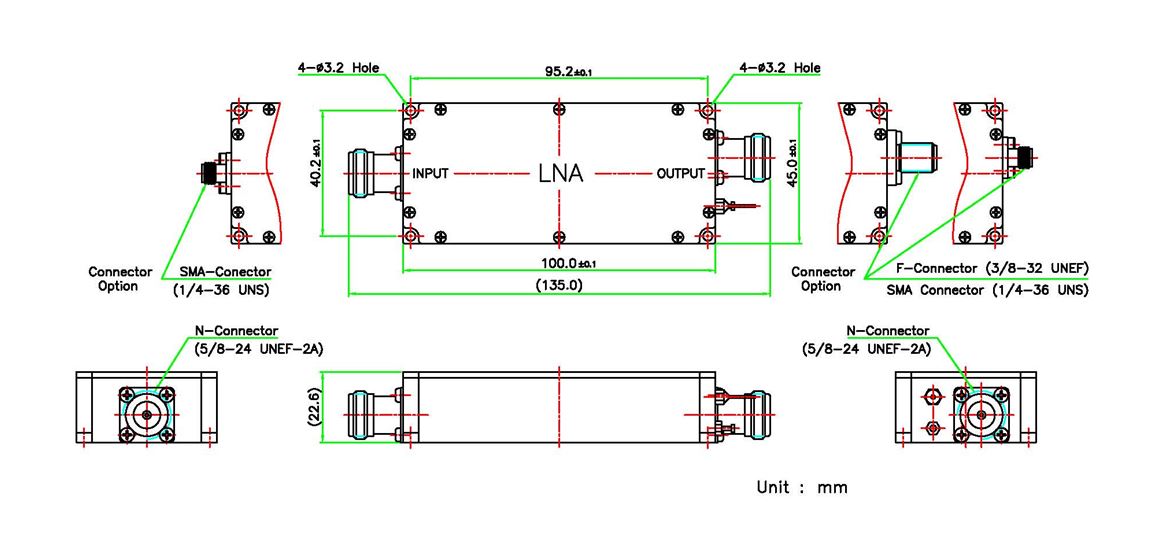

product dimensions (LxWxH)	22.6 x 45.0 x 100.0 mm
product weight	0.25 kg

INFORMATION
HS Code	-
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.25 kg
