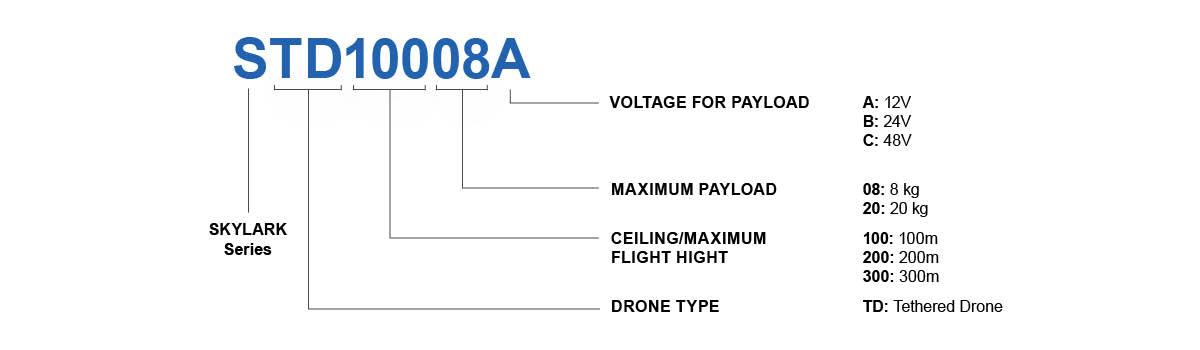

STD10008A

SKYLARK Industry-specific Tethered UAV - Max Ceiling 100m

SKYLARK Series

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!

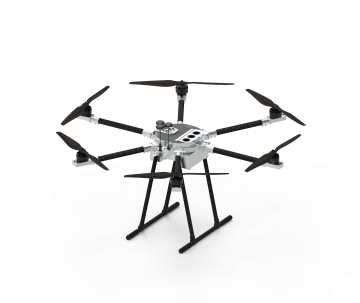

STD100 Series is an industry-specific tethered UAV with a net load of 12kg and a maximum flight height of 100m. Supplied by ground electric through tethered cable, it is hover in the air for 24 hours. The tethered UAV with base station equipment can be used for emergency communication during disasters like flood, earthquake, typhoon, etc. It can also carry Optical Zoom Lens Camera, Electrical Optical Pod, Communication Relay Station, Ad-Hoc Equipment, IR, High Intensity Light, Loudspeaker for different scenarios.

KEY SPECIFICATIONS
ascending speed 4 m/s
cable length 112m
ceiling 100m
descending speed 2 m/s
hovering accuracy horizontal ±10cm (RTK)
hovering accuracy vertical ±10cm (RTK)
maximum payload 12 kg@100m
maximum taking-off weight 32 kg
optical fiber Single-mode
payload Depends on the device to be mounted
signal transmission Wireless or Wire
support antenna Omnidirectional Antenna
UAV Type Hexa-copter Tether UAV
WIFI transmission frequency 2.4 GHz
Product Revision A
ELECTRICAL SPECIFICATIONS
power Industrial power or generator
power mode 50 Hz
voltage AC 380V 7kw
voltage for payload 12V
ENVIRONMENTAL SPECIFICATIONS
security Automatic landing when ground power supply is interrupted; Automatic landing when the control signal is interrupted
temperature operational -25°C to +55°C
temperature storage -25℃ to 55℃
wind resistance Level 6
PHYSICAL SPECIFICATIONS
control method Manual/automatic control by remote control; Automatic control from ground station

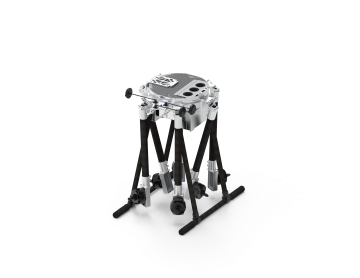

fold product height 650 mm
fold product length 550 mm
fold product width 460 mm
function Automatic cable retracting and releasing, intelligent automatic cable arrangement
mission payload Communication base station equipment,gimbal and EO & IR cameras, lighting/loudspeaker systems
product weight 22 kg
releasing cable Automatic
retracting cable Automatic
roter size 26''
symmetric motor wheelbase 1380mm
unfold product height 800 mm
unfold product length 2040 mm
unfold product width 1330 mm
