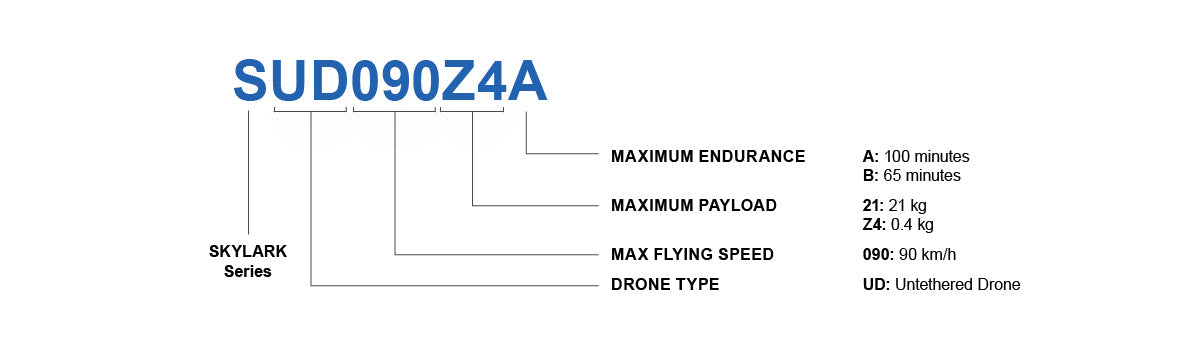

SUD090Z4A

SKYLARK Long Endurance Patrol Unmanned Aircraft

SKYLARK Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!

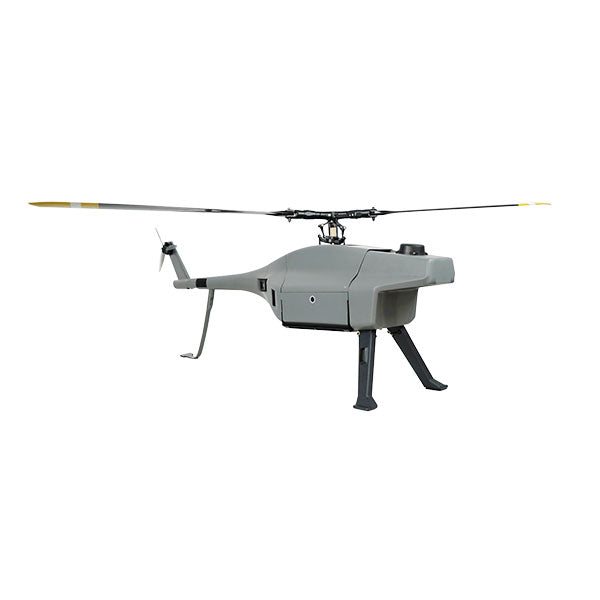

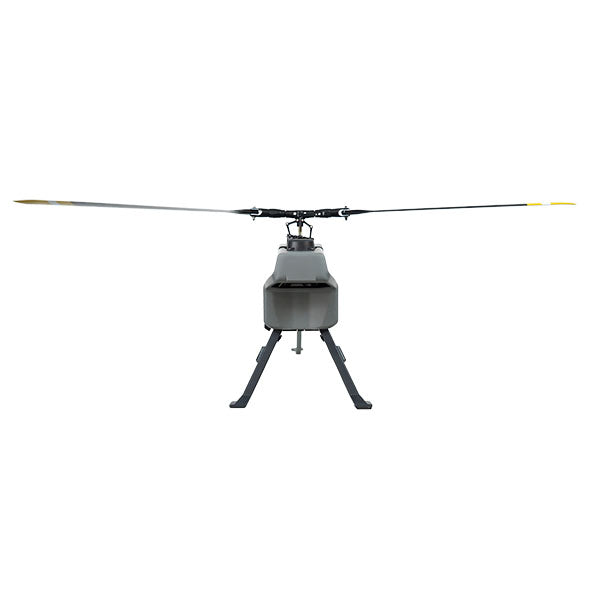

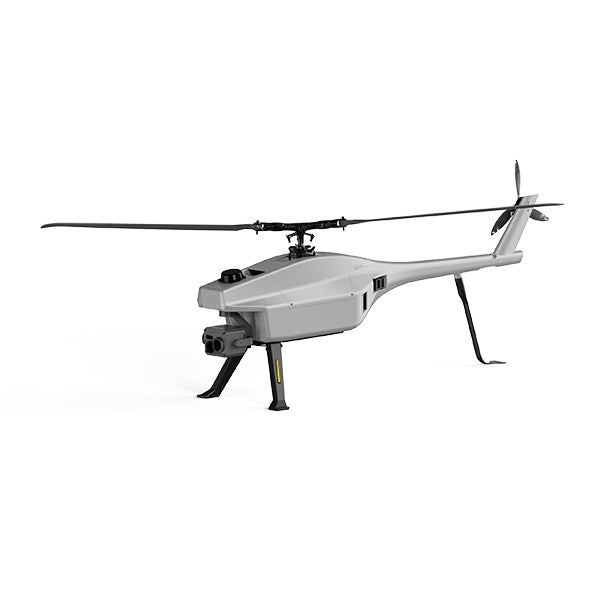

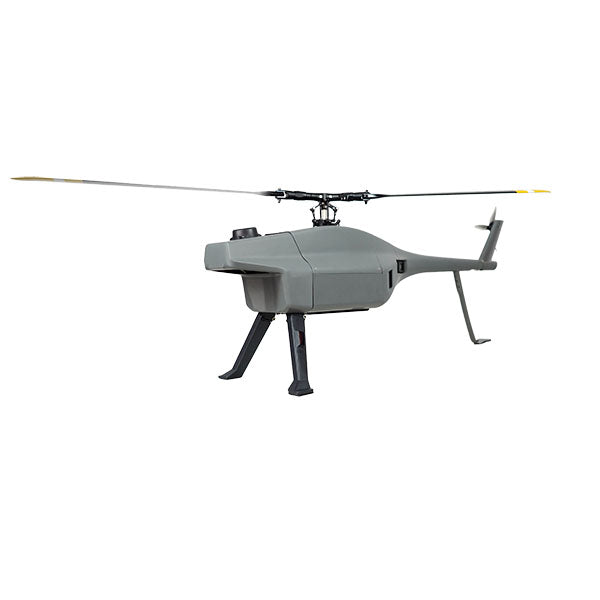

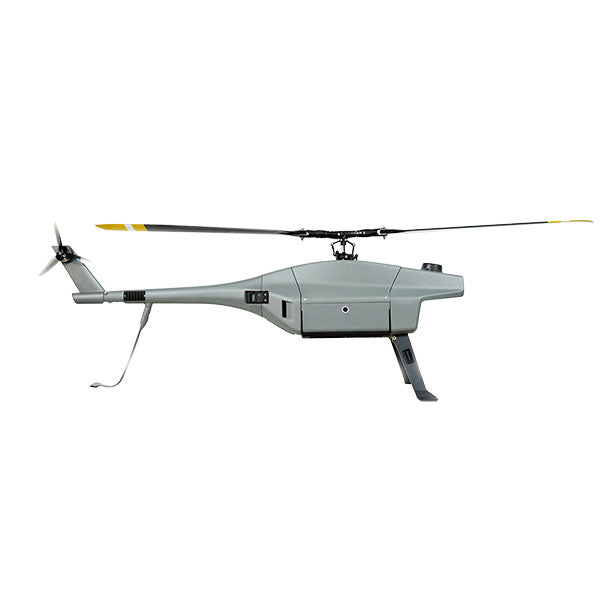

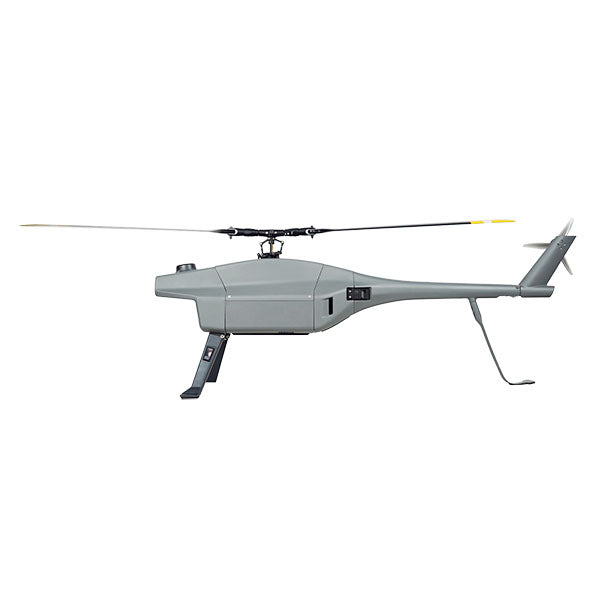

The SUD090Z4A unmanned aerial vehicle is a helicopter platform that focuses on ultra-long endurance and distance. The extremely small-sized, lightweight and portable unmanned helicopter is capable of flying for 100 minutes. It is designed for ultra-long flights, ease of transport and quick deployment. The basic essentials of the unmanned helicopter platform include the aircraft itself and ground control station. A single operator can utilize and operate the entire system.

The SUD090Z4A can carry diverse payloads. It is capable of creating solutions for various industries owing to its design, operation and capabilities. The unmanned helicopter possesses quick-release mount so that different payloads can be instantly swapped and Shadow can be deployed without having to wait for payload installations. It can carry a different payloads: photoelectric load, spotlight, and megaphone.

KEY SPECIFICATIONS
ascending speed 4 m/s
ceiling 5100m (Legal flight)
descending speed 4 m/s
hovering accuracy horizontal ±1.5m (GNSS is operational)
hovering accuracy vertical ±2.0m (GNSS is operational)
maximum payload 0.4 kg
maximum taking-off weight 7 kg
payload Standard Gimbal Camera
signal transmission RF
type Rotary wing UAV
UAV Type Rotary wing UAV
WIFI transmission frequency 2.4 GHz
Product Revision A
ELECTRICAL SPECIFICATIONS
power 1500 W
power mode Electric
RC control frequency 2405 - 2475 MHz; 5175 - 5825 MHz
voltage 25.2 V
voltage for payload 12 V
ENVIRONMENTAL SPECIFICATIONS
camera temperature operational -20°C to +60°C
gimbal vibration 0.00573° (1000 μrad)
security Low power fail safe setting / Lost communication fail safe setting
temperature operational -20°C to +55°C
temperature storage -20°C to +45°C
wind resistance Level 7 ( Windspeed: 17 m/s)
PHYSICAL SPECIFICATIONS
AI recognition identification target Human, vehicle, sea vessel
AI recognition performance indicator Recall ≥ 90%; Accuracy ≥ 80%; Number of Simultaneous Multiple Targets (Recognition) ≥ 20; Tracking Miss ≤ 32 Pixels; AI Recognition Support
camera dimensions 115.3 x 114.3 x 141.9 mm
camera lens type RGB + Thermal Imager + Laser Rangefinder
camera quick load/release Support
camera tracking function Support
camera weight 520 g
control method Auto/Manual/Guided
gimbal controllable range Pitch: -120° ~ +30°; Roll: ±45°; Yaw: ±170°
gimbal mechanical range Pitch: -130° ~ +40°; Roll: ±50°; Yaw: ±174°
IR thermal imager color palette White hot, black hot, pseudocolor (False-color)
IR thermal imager detection range Person (1.7x0.5m): 700m; Vehicle (3x6m): 4000m
IR thermal imager detector pixel 640 x 512
IR thermal imager focal length 25 mm
IR thermal imager focusing method Fixed
IR thermal imager identification range Person (1.7x0.5m): 100m; Vehicle (3x6m): 500m
IR thermal imager operating wavelength 12μm
IR thermal imager recognition range Person (1.7x0.5m): 200m; Vehicle (3x6m): 1000m
IR thermal imager sensitivity ≤50mK@F.0 @25°C
laser measuring distance 5 - 1200m
laser wavelength 905nm
mission payload U3 Megaphone Spotlight
product weight 7kg
product weight with battery 6.6 kg
sensor 1/3" VRS-HD5101
sensor detection range Person (1.7x0.5m): 4000m; Vehicle (3x6m): 24000m
sensor identification range Person (1.7x0.5m): 500m; Vehicle (3x6m): 3000m
sensor lens focal length F = 5.1mm - 51mm (10X optical zoom)
sensor pixels 2MP
sensor recognition range Person (1.7x0.5m): 1100m; Vehicle (3x6m): 6000m
sensor resolution 1920 x 1080
storage file format FAT32 (32GB)/ex-FAT (128GB)
storage memory card type microSD card (up to 128 GB capacity)
unfold product height 442 mm
unfold product length 998 mm
unfold product width 157 mm
