SUD09021B

SKYLARK Unmanned Transport Helicopters

SKYLARK Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

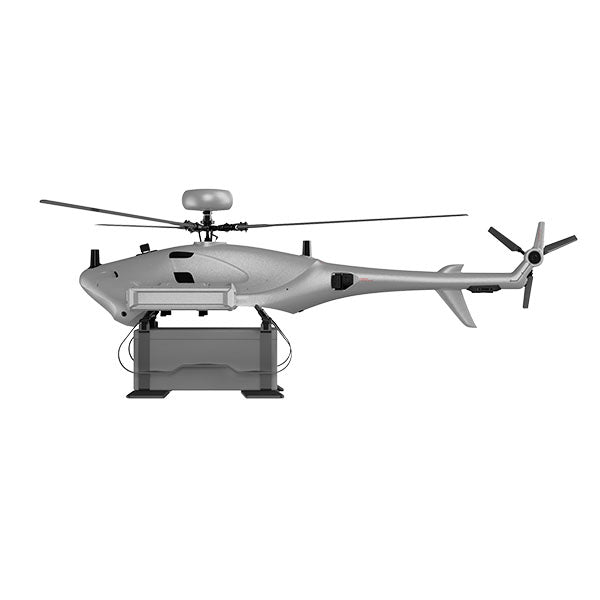

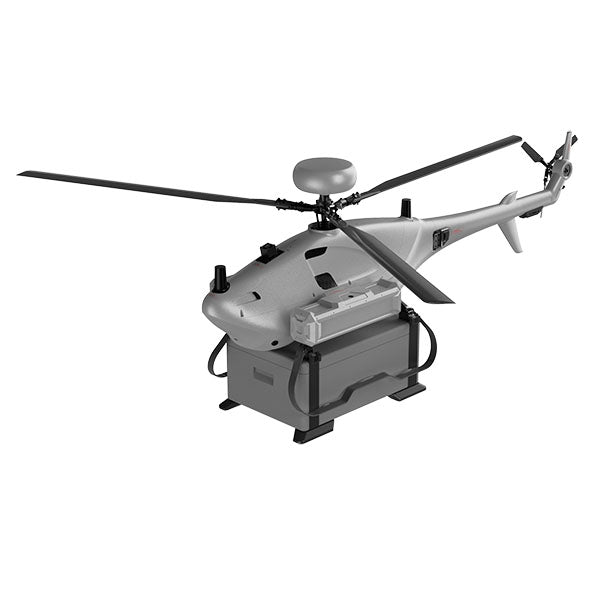

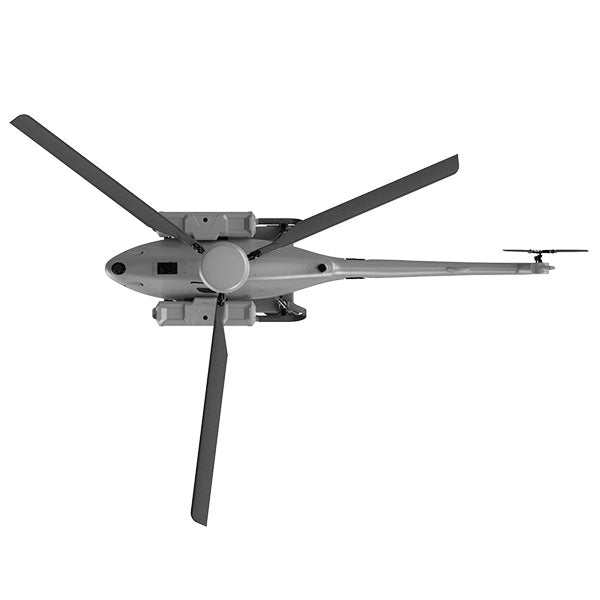

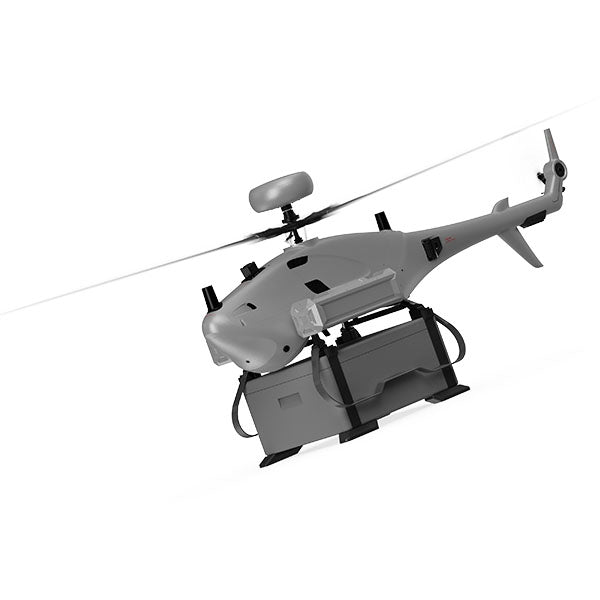

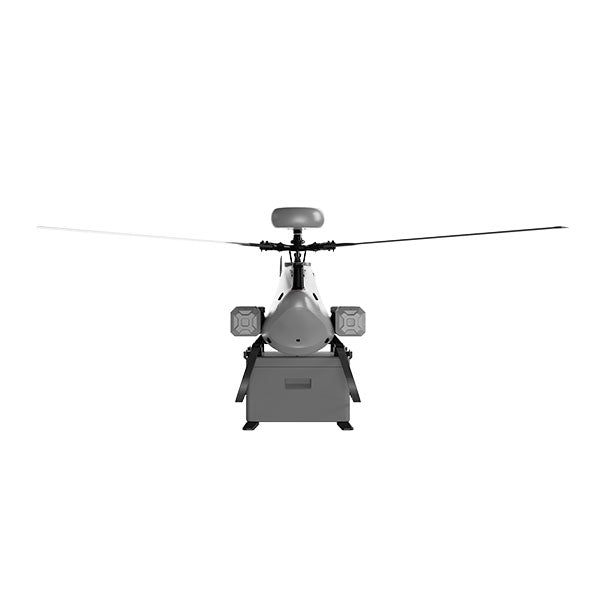

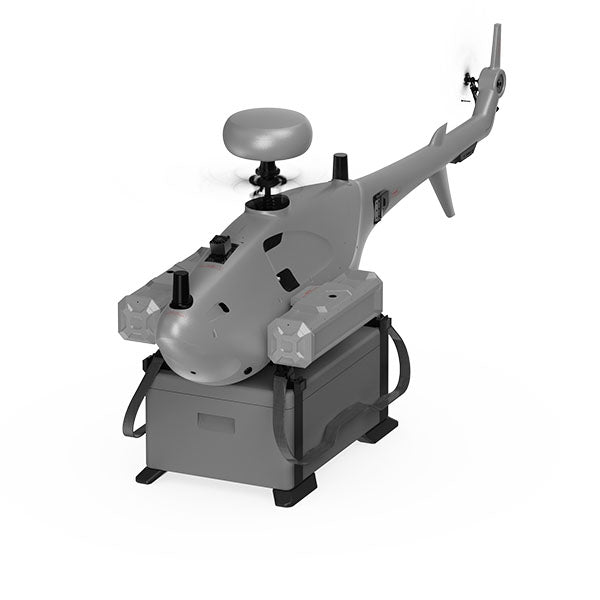

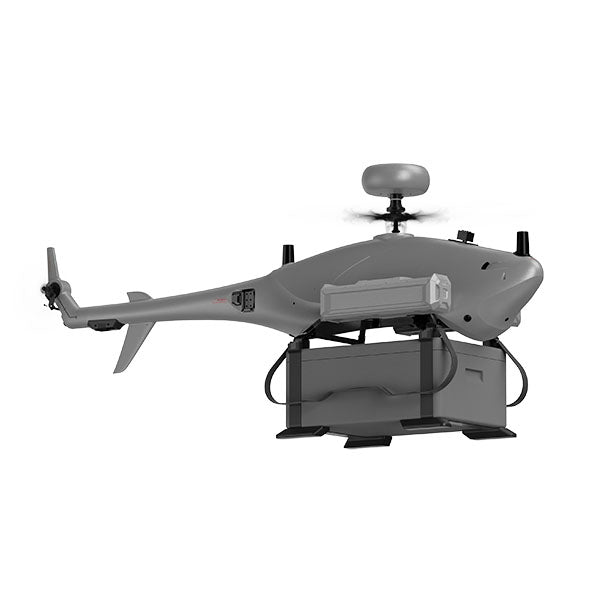

The SUD09021B unmanned helicopter is heavy lift platform. It can carry heavy payloads or cargo at extreme altitudes. It is modular in design. Landing gear is foldable and tail boom is detachable. It is simple and convenient to maintain, has a short time interval for re-deployment, is not limited by plateau air pressure, and is suitable for performing tasks at high altitudes.
The unmanned aircraft has an advanced AI intelligent control system. The AI control system enables the unmanned helicopter to realize autonomous control during take-off, landing and flight routes. The SUD09021B also possesses parachute which is deployed in various circumstances for cargo safety.

KEY SPECIFICATIONS
ascending speed 5 m/s
ceiling 5100m (Legal flight)
descending speed 5 m/s
hovering accuracy horizontal ±1.5m (GNSS is operational); ±0.1m (RTK is operational)
hovering accuracy vertical ±2.0m (GNSS is operational); ±0.1m (RTK is operational)
maximum communication distance 30 km (no obstruction/interference)
maximum endurance 65 min (no load / Eco speed)
maximum payload 21 kg (single battery); 15 kg (dual battery)
maximum taking-off weight 45 kg
payload Cargo Box
signal transmission RF
UAV Type Rotary wing UAV
WIFI transmission frequency 2.4 GHz
Product Revision A
ELECTRICAL SPECIFICATIONS
battery charging time ~65 min (charge from 20% to 90%)
power 8000 W
power mode Electric
RC control frequency 1360 - 1444 MHz
voltage 58.8V
voltage for payload 12V
ENVIRONMENTAL SPECIFICATIONS
camera temperature operational -20°C to +60°C
gimbal vibration 0.00573° (1000 μrad)
security Low power fail safe setting / Lost communication fail safe setting
temperature operational -10°C to +55°C
temperature storage -20°C to +60°C
wind resistance Level 7 ( Windspeed: 17 m/s)
PHYSICAL SPECIFICATIONS
AI recognition identification target Human, vehicle, sea vessel
AI recognition performance indicator Recall ≥ 90%; Accuracy ≥ 80%; Number of Simultaneous Multiple Targets (Recognition) ≥ 20; Tracking Miss ≤ 32 Pixels; AI Recognition Support
camera dimensions 115.3 x 114.3 x 141.9 mm
camera lens type RGB + Thermal Imager + Laser Rangefinder
camera quick load/release Support
camera tracking function Support
camera weight 520 g
control method Auto/Manual/Guided
gimbal controllable range Pitch: -120° ~ 30°; Roll: ±45°; Yaw: ±170°
gimbal mechanical range Pitch: -130° ~ +40°; Roll: ±50°; Yaw: ±174°
IR thermal imager color palette White hot, black hot, pseudocolor (False-color)
IR thermal imager detection range Person (1.7x0.5m): 700m; Vehicle (3x6m): 4000m
IR thermal imager detector pixel 640 x 512
IR thermal imager focal length 25 mm
IR thermal imager focusing method Fixed
IR thermal imager identification range Person (1.7x0.5m): 100m; Vehicle (3x6m): 500m
IR thermal imager operating wavelength 12μm
IR thermal imager recognition range Person (1.7x0.5m): 200m; Vehicle (3x6m): 1000m
IR thermal imager sensitivity ≤50mK@F.0 @25°C
laser measuring distance 5 - 1200m
laser wavelength 905nm
mission payload Transportation Box
product weight 45 kg
product weight with battery 30 kg
sensor 1/3" VRS-HD5101
sensor detection range Person (1.7x0.5m): 4000m; Vehicle (3x6m): 24000m
sensor identification range Person (1.7x0.5m): 500m; Vehicle (3x6m): 3000m
sensor lens focal length F = 5.1mm - 51mm (10X optical zoom)
sensor pixels 2MP
sensor recognition range Person (1.7x0.5m): 1100m; Vehicle (3x6m): 6000m
sensor resolution 1920 x 1080
storage file format FAT32 (32GB)/ex-FAT (128GB)
storage memory card type microSD card (up to 128 GB capacity)
unfold product height 639 mm
unfold product length 1997 mm
unfold product width 523 mm
