Name: ELEMENT 3W Ku-Band MINIBUC
Brand: Norsat International Inc.
SKU: ELMTBKU003-EF
Price: 481.48 USD
Availability: InStock

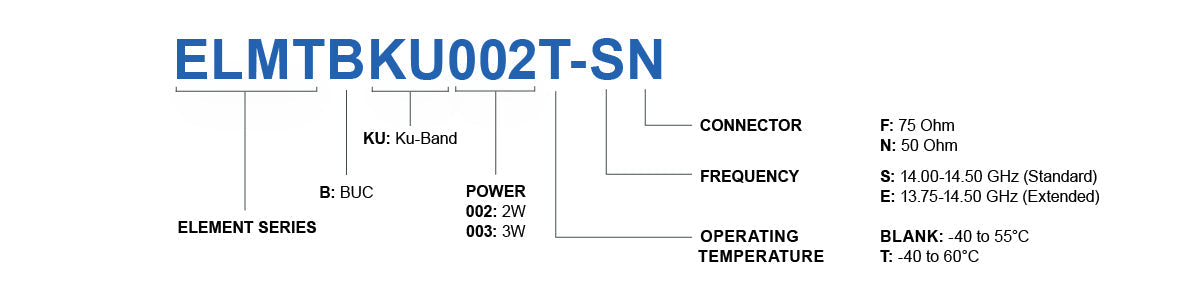

ELMTBKU003-EF

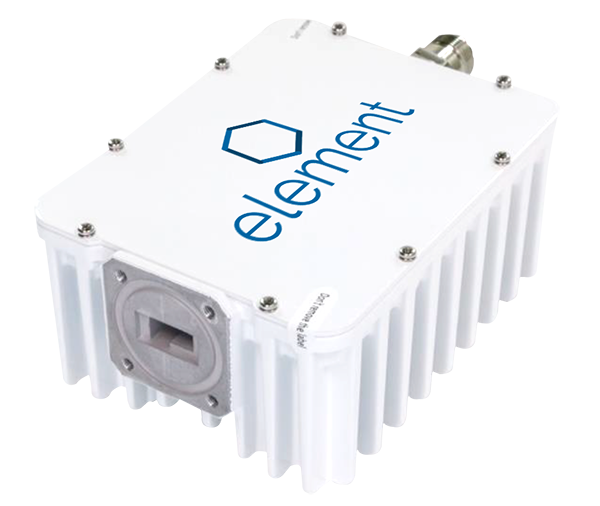

ELEMENT 3W Ku-Band MINIBUC

ELMTBKU003 Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":42125961167031,"title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +55°C","sku":"ELMTBKU003-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","public_title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","options":["Extended: 13.75 - 14.50 GHz","F-Connector","-40 to +55°C"],"price":48148,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961199799,"title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +55°C","sku":"ELMTBKU003-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","public_title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","options":["Extended: 13.75 - 14.50 GHz","N-Connector","-40 to +55°C"],"price":48148,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961232567,"title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +55°C","sku":"ELMTBKU003-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","public_title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +55°C","options":["Standard: 14.00 - 14.50 GHz","F-Connector","-40 to +55°C"],"price":46914,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961265335,"title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +55°C","sku":"ELMTBKU003-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","public_title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +55°C","options":["Standard: 14.00 - 14.50 GHz","N-Connector","-40 to +55°C"],"price":46914,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961298103,"title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +60°C","sku":"ELMTBKU003T-EF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","public_title":"Extended: 13.75 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","options":["Extended: 13.75 - 14.50 GHz","F-Connector","-40 to +60°C"],"price":68148,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961330871,"title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","option1":"Extended: 13.75 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +60°C","sku":"ELMTBKU003T-EN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","public_title":"Extended: 13.75 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","options":["Extended: 13.75 - 14.50 GHz","N-Connector","-40 to +60°C"],"price":68148,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961363639,"title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"F-Connector","option3":"-40 to +60°C","sku":"ELMTBKU003T-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","public_title":"Standard: 14.00 - 14.50 GHz \/ F-Connector \/ -40 to +60°C","options":["Standard: 14.00 - 14.50 GHz","F-Connector","-40 to +60°C"],"price":66914,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961396407,"title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","option1":"Standard: 14.00 - 14.50 GHz","option2":"N-Connector","option3":"-40 to +60°C","sku":"ELMTBKU003T-SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 3W Ku-Band MINIBUC - Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","public_title":"Standard: 14.00 - 14.50 GHz \/ N-Connector \/ -40 to +60°C","options":["Standard: 14.00 - 14.50 GHz","N-Connector","-40 to +60°C"],"price":66914,"weight":1600,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
band type	E: Extended
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1700 MHz
LO frequency 1	12.80 GHz
output frequency band 1	13.75 - 14.50 GHz
output power rated	3W
Product Revision	B

RF SPECIFICATIONS
Gain Flatness (over 54MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 4.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	60 dB
linear gain min	50 dB
linear gain typ	55 dB
output P1dB	34 dBm min.
output power psat	34.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset max	-60 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz
phase noise 10kHz offset max	-80 dBc/Hz
phase noise 100kHz offset max	-90 dBc/Hz

ELECTRICAL SPECIFICATIONS
maximum current 15 VDC	1.3A
power consumption	20W max.
power requirements	+15 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF output connector	WR75G

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 100% condensing
IP rating	IP 67
temperature operational	-40°C to +55°C
temperature storage	-40 to +80°C

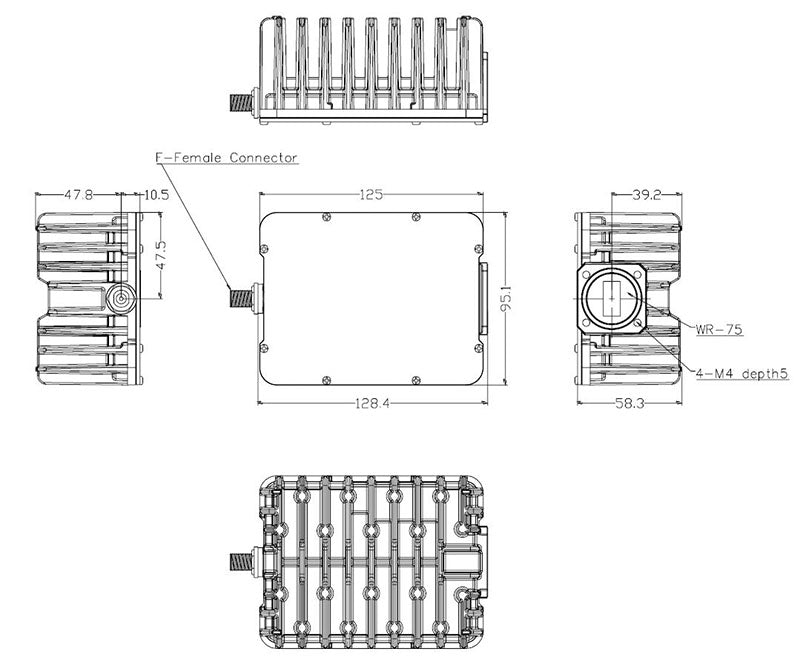

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket
product height	58.3 mm
product length	124.8 mm
product weight	0.7 kg
product width	95.1 mm

Back to ELEMENT Series

INFORMATION
HS Code	8543700000
Country of Origin	Made in Korea
Ex Works	Korea
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	1.6 kg
