Name: ELEMENT 12W Ka-Band BUC
Brand: Norsat International Inc.
SKU: ELMTBKA012-CF
Price: 8887.19 USD
Availability: InStock

ELMTBKA012-CF

ELEMENT 12W Ka-Band BUC

ELMTBKA012 Series

$8,887.19

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: Not Applicable

Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks Next Availability Lead Time: 2 - 4 weeks

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

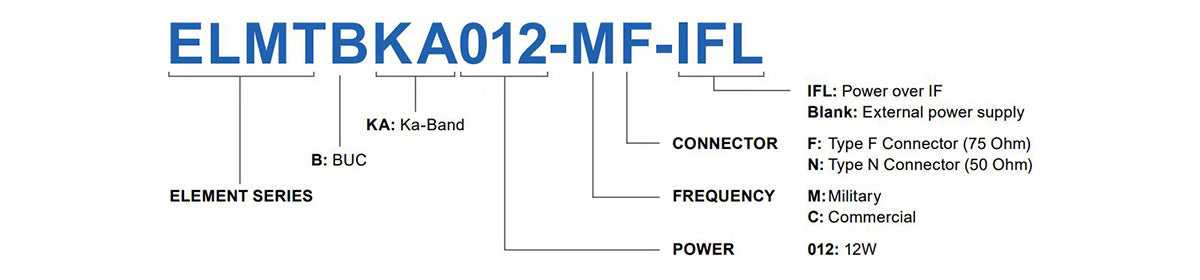

[{"id":41087176278199,"title":"Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","option1":"Commercial: 29.0 - 30.0 GHz","option2":"Type F (75 Ohm)","option3":"External Power Supply","sku":"ELMTBKA012-CF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","public_title":"Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","options":["Commercial: 29.0 - 30.0 GHz","Type F (75 Ohm)","External Power Supply"],"price":888719,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176310967,"title":"Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","option1":"Commercial: 29.0 - 30.0 GHz","option2":"Type F (75 Ohm)","option3":"Power Over IF","sku":"ELMTBKA012-CF-IFL","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","public_title":"Commercial: 29.0 - 30.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","options":["Commercial: 29.0 - 30.0 GHz","Type F (75 Ohm)","Power Over IF"],"price":805464,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176343735,"title":"Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","option1":"Commercial: 29.0 - 30.0 GHz","option2":"Type N (50 Ohm)","option3":"External Power Supply","sku":"ELMTBKA012-CN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","public_title":"Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","options":["Commercial: 29.0 - 30.0 GHz","Type N (50 Ohm)","External Power Supply"],"price":783262,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176376503,"title":"Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","option1":"Commercial: 29.0 - 30.0 GHz","option2":"Type N (50 Ohm)","option3":"Power Over IF","sku":"ELMTBKA012-CN-IFL","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","public_title":"Commercial: 29.0 - 30.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","options":["Commercial: 29.0 - 30.0 GHz","Type N (50 Ohm)","Power Over IF"],"price":805105,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176409271,"title":"Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","option1":"Military: 30.0 - 31.0 GHz","option2":"Type F (75 Ohm)","option3":"External Power Supply","sku":"ELMTBKA012-MF","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","public_title":"Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ External Power Supply","options":["Military: 30.0 - 31.0 GHz","Type F (75 Ohm)","External Power Supply"],"price":797891,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176442039,"title":"Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","option1":"Military: 30.0 - 31.0 GHz","option2":"Type F (75 Ohm)","option3":"Power Over IF","sku":"ELMTBKA012-MF-IFL","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","public_title":"Military: 30.0 - 31.0 GHz \/ Type F (75 Ohm) \/ Power Over IF","options":["Military: 30.0 - 31.0 GHz","Type F (75 Ohm)","Power Over IF"],"price":808896,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176474807,"title":"Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","option1":"Military: 30.0 - 31.0 GHz","option2":"Type N (50 Ohm)","option3":"External Power Supply","sku":"ELMTBKA012-MN","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","public_title":"Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ External Power Supply","options":["Military: 30.0 - 31.0 GHz","Type N (50 Ohm)","External Power Supply"],"price":891792,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41087176507575,"title":"Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","option1":"Military: 30.0 - 31.0 GHz","option2":"Type N (50 Ohm)","option3":"Power Over IF","sku":"ELMTBKA012-MN-IFL","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ELEMENT 12W Ka-Band BUC - Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","public_title":"Military: 30.0 - 31.0 GHz \/ Type N (50 Ohm) \/ Power Over IF","options":["Military: 30.0 - 31.0 GHz","Type N (50 Ohm)","Power Over IF"],"price":808538,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ka ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1950 MHz
LO frequency 1	28.05 GHz
output frequency band 1	29.0 - 30.0 GHz
Product Revision	D

RF SPECIFICATIONS
Gain Flatness (over any 40MHz)	≤ 1.0 dB p-p
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 3.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	70 dB
linear gain min	60 dB
linear gain typ	65 dB
noise power density	-70 dBm/Hz in Tx, -157 dBm/Hz in Rx
output P1dB	40.8 dBm min.
output power psat	38 dBm min.
output spurious in band	≤ -55 dBc
output spurious out of band	≤ -55 dBc
output VSWR	2.0 : 1 max.
phase noise 100Hz offset max	-73 dBc/Hz
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-83 dBc/Hz
phase noise 1kHz offset max	-73 dBc/Hz
phase noise 1MHz offset max	-103 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	110W max.
power connector	MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, PT02E-12-4P
power consumption	110W max.
power requirements	+28 to +72V DC
protection rating	IP55

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF output connector	WR-28 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	8 - 100% condensing
temperature operational	-40 to +60°C
temperature storage	-50 to +70°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket, Mating Connectors for Power and M&C

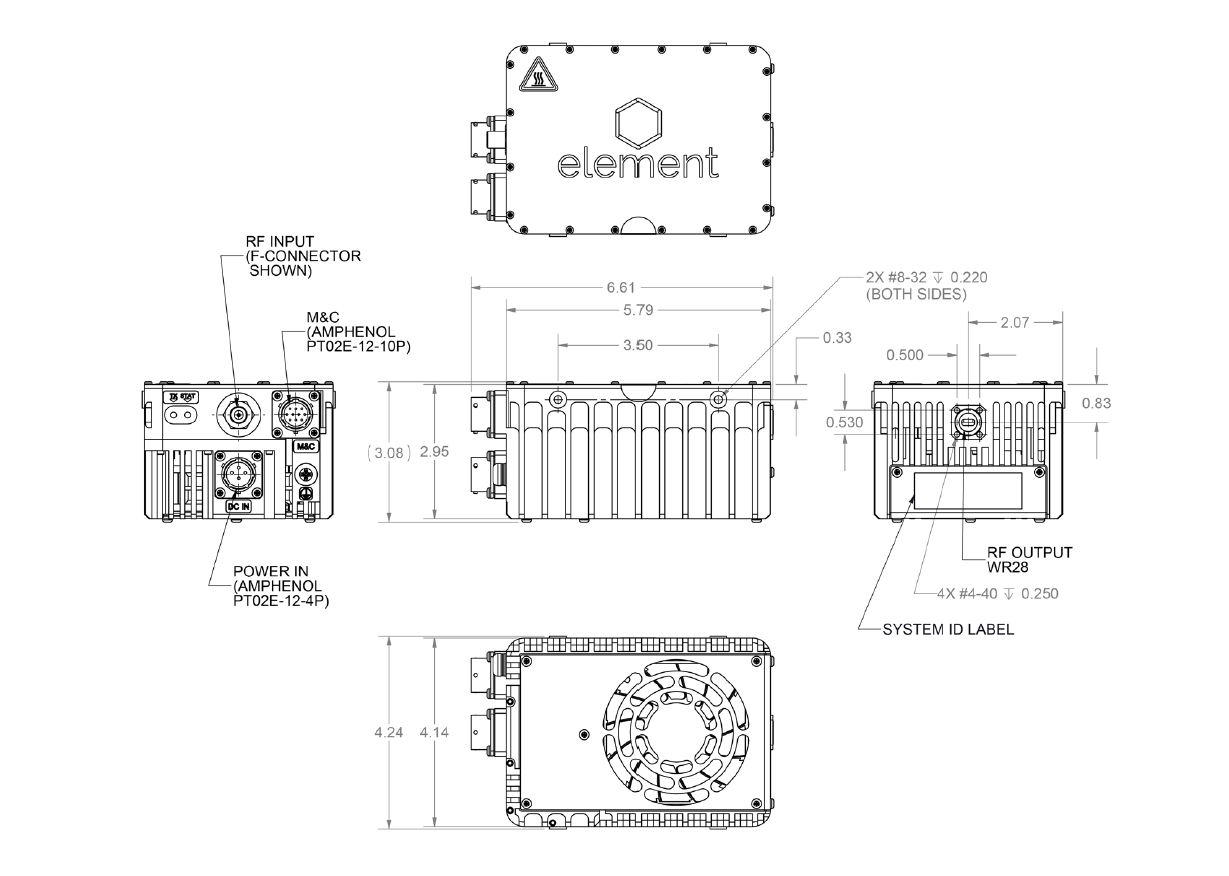

product dimensions (LxWxH)	168 x 108 x 78 mm
product weight	1.5 kg

ACCESSORIES
db9 to usb adaptor	USB-RS485
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS300-AT1-(NA/UK/EU/IEC/CN/AU)

Back to Satellite Components

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF output connector	WR-28 waveguide grooved

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	254 x 226 x 178 mm (10 x 8.5 x 7 in)
Unit Package Weight	-
