OPT134CR

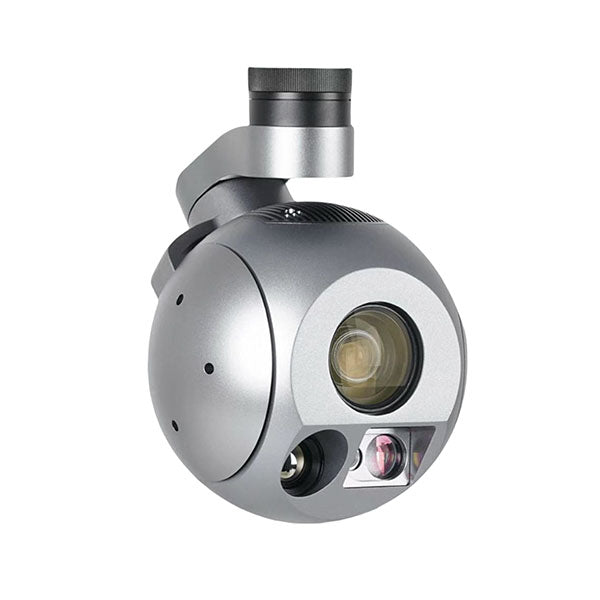

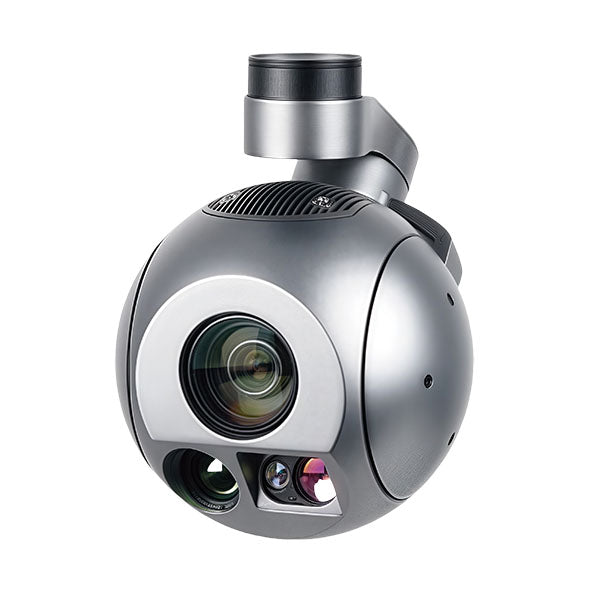

OPTIVIA Electro-Optical Pod (Quick-Disconnect with Fast Release Mechanism)

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Optional Upgrade Devices:

LRFB3200CC or LRFB2500CC or LRFB5000DD

KEY SPECIFICATIONS
optional upgrade devices LRFB3200CC or LRFB2500CC or LRFB5000DD
recording time 4h
stabilization accuracy horizontal jitter angle ±0.02°
stabilization accuracy pitch jitter angle ±0.02°
stabilization accuracy roll jitter angle ±0.02°
standard preinstalled components 40×Zoom&32×Digital Zoom; Laser Rangefinder; Thermal Infrared Camera
Product Revision A
RF SPECIFICATIONS
IR detection range Human (1.8 × 0.5m): 792m, Vehicle (4.2 × 1.8m): 3km
IR detector type (VOx) Uncooled infrared microbolometer camera
IR focal length 19mm
IR fov Horizontal: 22.9°; Vertical: 18.4; Diagonal: 29.0°
IR identification range Human (1.8 × 0.5m): 198m, Vehicle (4.2 × 1.8m): 607m
IR resolution 640×512@60fps
IR temperature color panel status White Hot (Default); Black Hot (Inverted); Pseudo Color (Rainbow/Ironbow preset)
IR temperature measurement range -20°C to +550°C
IR thermal sensitivity netd 50mk@F1.0
IR wavelength range 8 - 14μm
laser rangefinder accuracy ±1
laser rangefinder operating wavelength 1535nm ± 5nm
laser rangefinder ranging range Human (1.8 × 0.5m): ≥15m - 2000m; Vehicle (4.2 × 1.8m): ≥15m - 3000m
visible light detection detection tracking target size 4.2m x 1.8m
visible light detection maximum relative humidity 70%
visible light detection minimum visibility ≥10km
visible light detection range ≥8.5km
visible light fov diagonal 29.0°
visible light fov horizontal 22.9°
visible light fov vertical 18.4°
visible light identification range ≥2km
visible light minimum identifiable target size 32×32 pixels
visible light resolution 1920×1080@60fps
ELECTRICAL SPECIFICATIONS
power consumption Avg 10W; Peak 16W
power supply DC 16V (Input Voltage: 4S - 6S, Output Voltage: 5V (PWM))
INTERFACE SPECIFICATIONS
control method PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output); One-Click Restore
external interface communication interface TTL
external interface video interface Network/SDL
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to +60°C
temperature storage -40°C to +60 °C

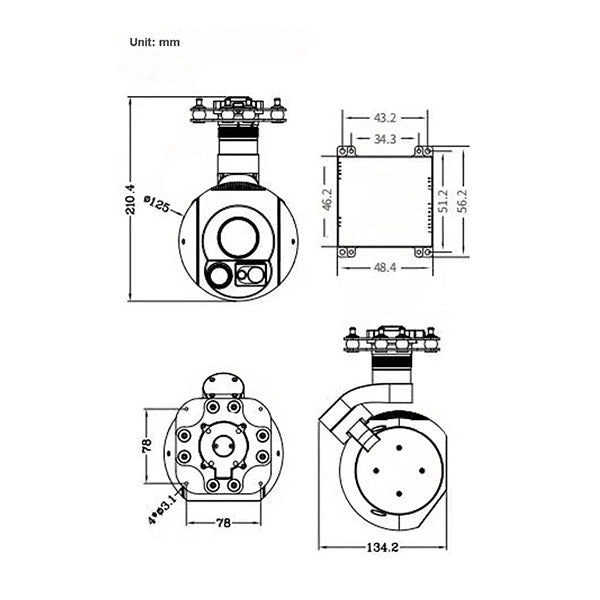

PHYSICAL SPECIFICATIONS
product height 210.4 mm
product length 134.2 mm
product weight 1.136 kg
product width 125 mm
roll angle elevation -40° to +40°
rotation range azimuth -300° to +300 °/±360°×n（Network Output-Only Version）
rotation range elevation -60° to +130°
volume 134.2 × 125 × 210.4 mm
