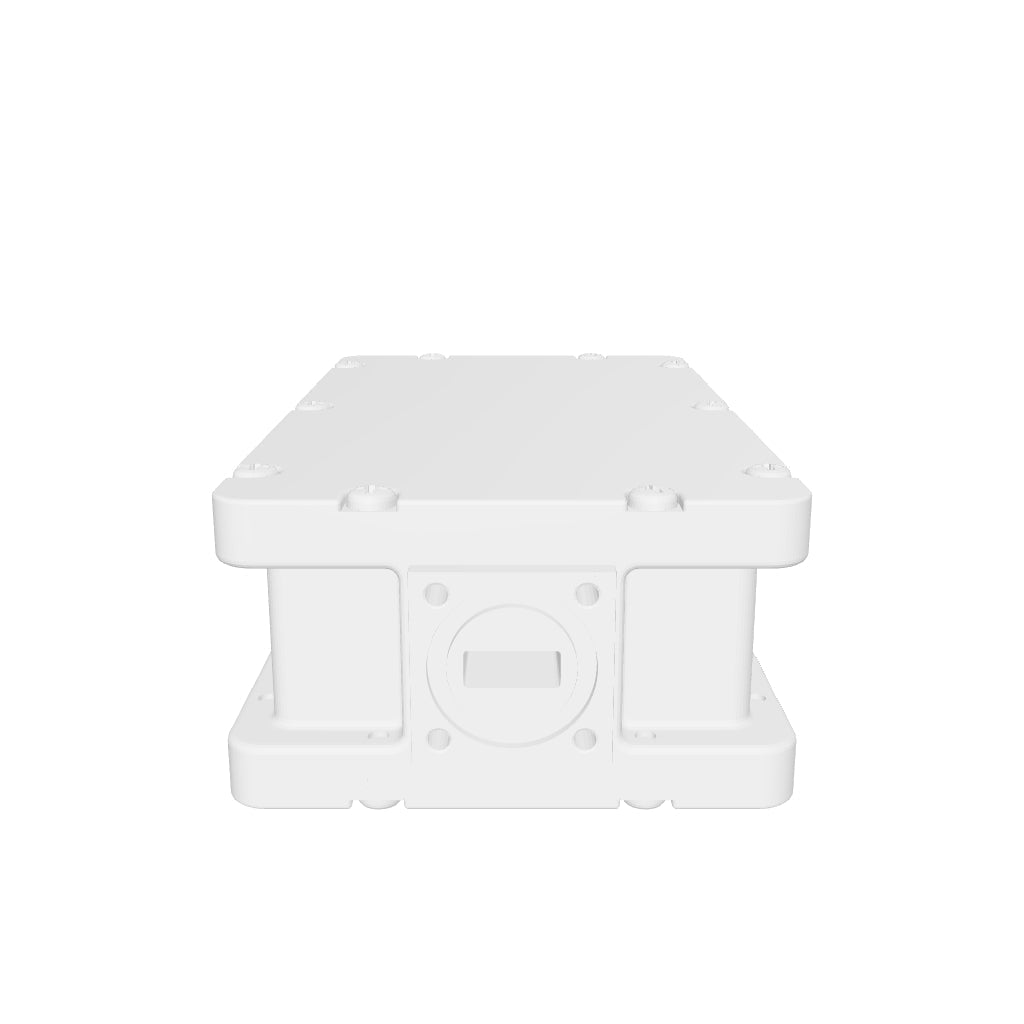

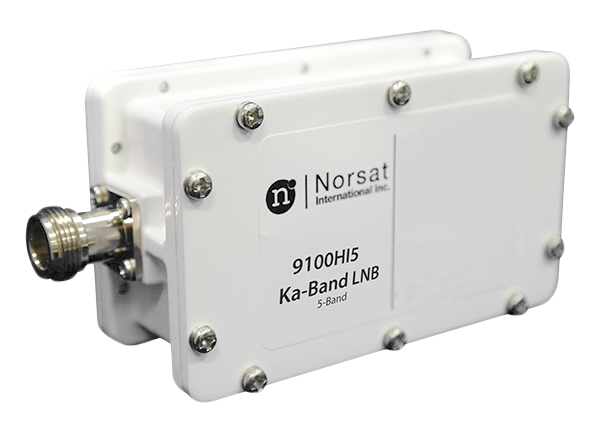

Name: 9000H5 Five-Band Ka-Band PLL LNB
Brand: Norsat International Inc.
SKU: 9100H5F
Price: 4805.00 USD
Availability: InStock

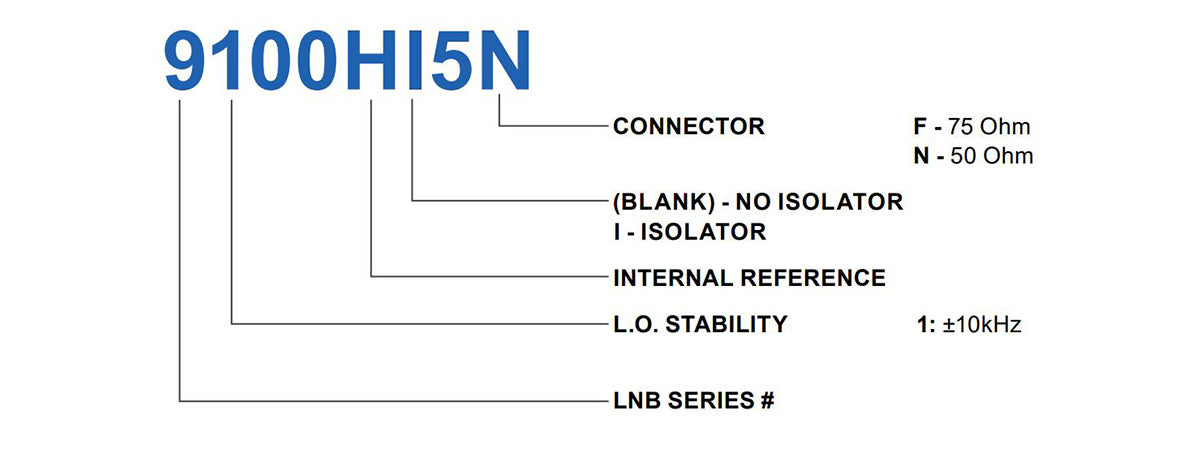

9100H5F

9000H5 Five-Band Ka-Band PLL LNB

9000H5 Series

$4,805.00

Quantity Available: 0

Next Availability: Not Applicable Next Availability: Not Applicable Next Availability: 0 Next Availability: 0

Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: 6 - 8 Weeks Next Availability Lead Time: Contact Sales Next Availability Lead Time: Contact Sales

Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada Ex Works: Richmond, BC, Canada

View Resellers Quantity

For more information, click on the Company's link below:

(Scroll to see specifications and documents)

View Family Datasheet

[{"id":41058604908727,"title":"F: 75 Ohm \/ No","option1":"F: 75 Ohm","option2":"No","option3":null,"sku":"9100H5F","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000H5 Five-Band Ka-Band PLL LNB - F: 75 Ohm \/ No","public_title":"F: 75 Ohm \/ No","options":["F: 75 Ohm","No"],"price":480500,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":"04908727","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058604941495,"title":"N: 50 Ohm \/ No","option1":"N: 50 Ohm","option2":"No","option3":null,"sku":"9100H5N","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000H5 Five-Band Ka-Band PLL LNB - N: 50 Ohm \/ No","public_title":"N: 50 Ohm \/ No","options":["N: 50 Ohm","No"],"price":480500,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":"04941495","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058604974263,"title":"F: 75 Ohm \/ Yes","option1":"F: 75 Ohm","option2":"Yes","option3":null,"sku":"9100HI5F","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000H5 Five-Band Ka-Band PLL LNB - F: 75 Ohm \/ Yes","public_title":"F: 75 Ohm \/ Yes","options":["F: 75 Ohm","Yes"],"price":520500,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":"04974263","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41058605007031,"title":"N: 50 Ohm \/ Yes","option1":"N: 50 Ohm","option2":"Yes","option3":null,"sku":"9100HI5N","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"9000H5 Five-Band Ka-Band PLL LNB - N: 50 Ohm \/ Yes","public_title":"N: 50 Ohm \/ Yes","options":["N: 50 Ohm","Yes"],"price":520500,"weight":620,"compare_at_price":null,"inventory_management":"shopify","barcode":"05007031","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
input frequency band 2	18.20 - 19.20 GHz
input frequency band 3	19.20 - 20.20 GHz
input frequency band 4	20.20 - 21.20 GHz
input frequency band 5	21.20 - 22.20 GHz
LO frequency 1	16.25 GHz
LO frequency 2	17.25 GHz
LO frequency 3	18.25 GHz
LO frequency 4	19.25 GHz
LO frequency 5	20.25 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	2.5 dB
noise figure typ	2.9 dB
number of onboard LOs	Five-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
output frequency band 5	950 - 1950 MHz
Product Revision	E

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
control signal 5	22V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 10 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	500 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

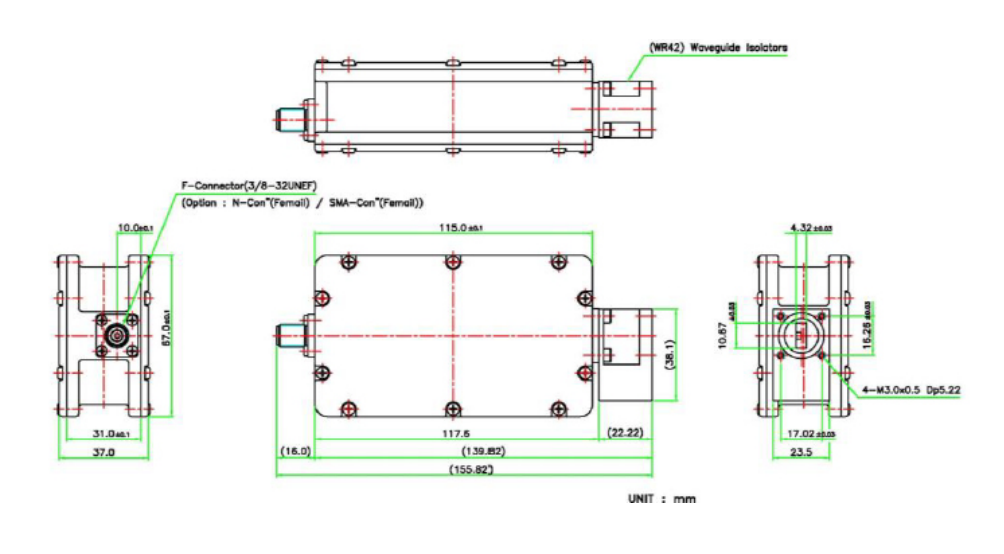

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	137 x 67 x 39 mm
product weight	0.55 kg

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
input frequency band 2	18.20 - 19.20 GHz
input frequency band 3	19.20 - 20.20 GHz
input frequency band 4	20.20 - 21.20 GHz
input frequency band 5	21.20 - 22.20 GHz
LO frequency 1	16.25 GHz
LO frequency 2	17.25 GHz
LO frequency 3	18.25 GHz
LO frequency 4	19.25 GHz
LO frequency 5	20.25 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	2.5 dB
noise figure typ	2.9 dB
number of onboard LOs	Five-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
output frequency band 5	950 - 1950 MHz
Product Revision	E

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
control signal 5	22V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	3.5 : 1 max.
output P1dB	+ 10 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	500 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	137 x 67 x 39 mm
product weight	0.55 kg

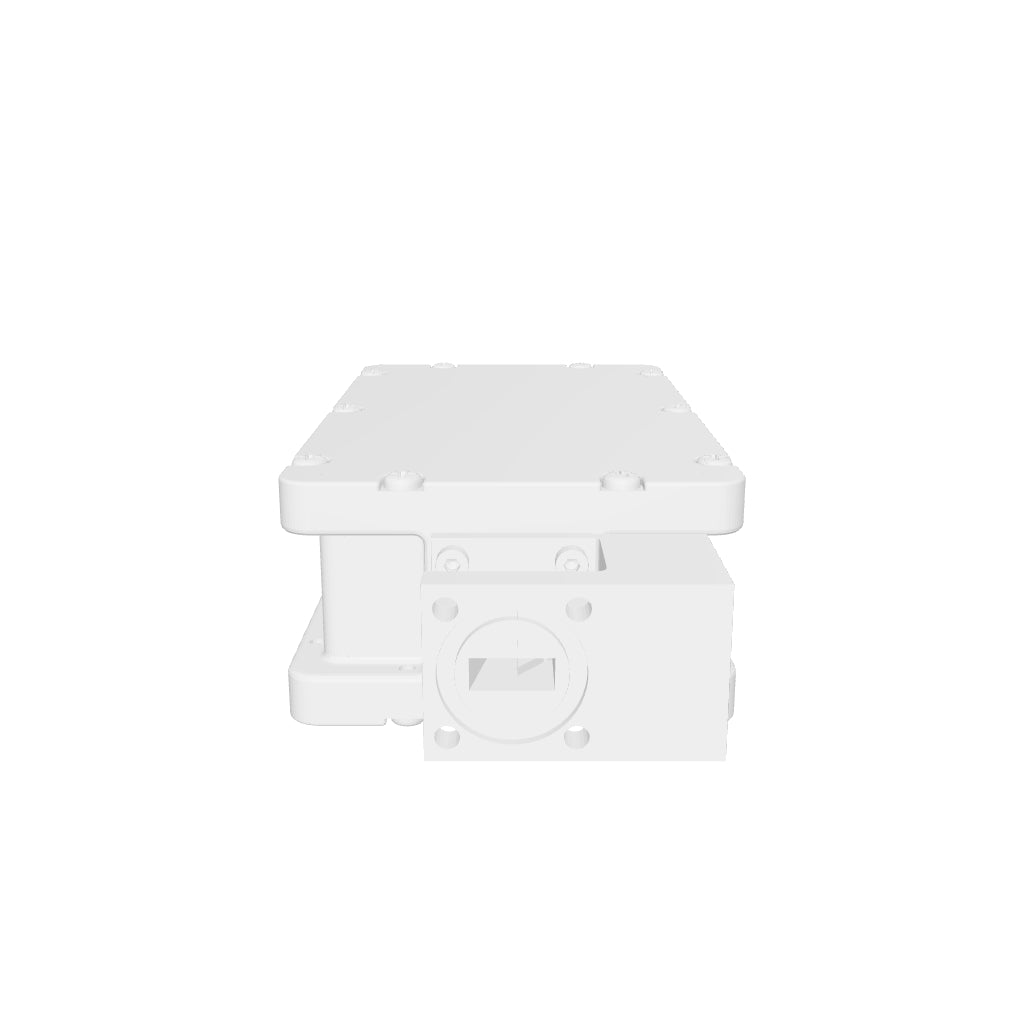

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
input frequency band 2	18.20 - 19.20 GHz
input frequency band 3	19.20 - 20.20 GHz
input frequency band 4	20.20 - 21.20 GHz
input frequency band 5	21.20 - 22.20 GHz
LO frequency 1	16.25 GHz
LO frequency 2	17.25 GHz
LO frequency 3	18.25 GHz
LO frequency 4	19.25 GHz
LO frequency 5	20.25 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	2.6 dB
noise figure typ	3.0 dB
number of onboard LOs	Five-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
output frequency band 5	950 - 1950 MHz
Product Revision	E

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
control signal 5	22V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	1.5 : 1 max.
output P1dB	+ 10 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	500 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	With Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	137 x 67 x 39 mm
product weight	0.55 kg

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
input frequency band 2	18.20 - 19.20 GHz
input frequency band 3	19.20 - 20.20 GHz
input frequency band 4	20.20 - 21.20 GHz
input frequency band 5	21.20 - 22.20 GHz
LO frequency 1	16.25 GHz
LO frequency 2	17.25 GHz
LO frequency 3	18.25 GHz
LO frequency 4	19.25 GHz
LO frequency 5	20.25 GHz
LO stability	±10 kHz
LO type	PLL
noise figure max	2.6 dB
noise figure typ	3.0 dB
number of onboard LOs	Five-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 1950 MHz
output frequency band 3	950 - 1950 MHz
output frequency band 4	950 - 1950 MHz
output frequency band 5	950 - 1950 MHz
Product Revision	E

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	13V / 22kHz Tone
control signal 3	18V / No Tone
control signal 4	18V / 22kHz Tone
control signal 5	22V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 4 dB p-p max.
input VSWR	1.5 : 1 max.
output P1dB	+ 10 dBm min.
output VSWR	2.2 : 1 max.
phase noise 100kHz offset max	-93 dBc/Hz
phase noise 10kHz offset max	-78 dBc/Hz
phase noise 1kHz offset max	-70 dBc/Hz

ELECTRICAL SPECIFICATIONS
current consumption	500 mA
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	With Isolator
RF input connector	WR-42 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH)	137 x 67 x 39 mm
product weight	0.55 kg

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.62 kg
