ATOM 16W Ku-Band BUC
ATOM 16W Ku-Band BUC
ATOM 16W Ku-Band BUC


ATOM 16W Ku-Band BUC

ATOMBKU016 Series

Regular price MSRP: $14,726.83
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)

Only 0 items in stock!

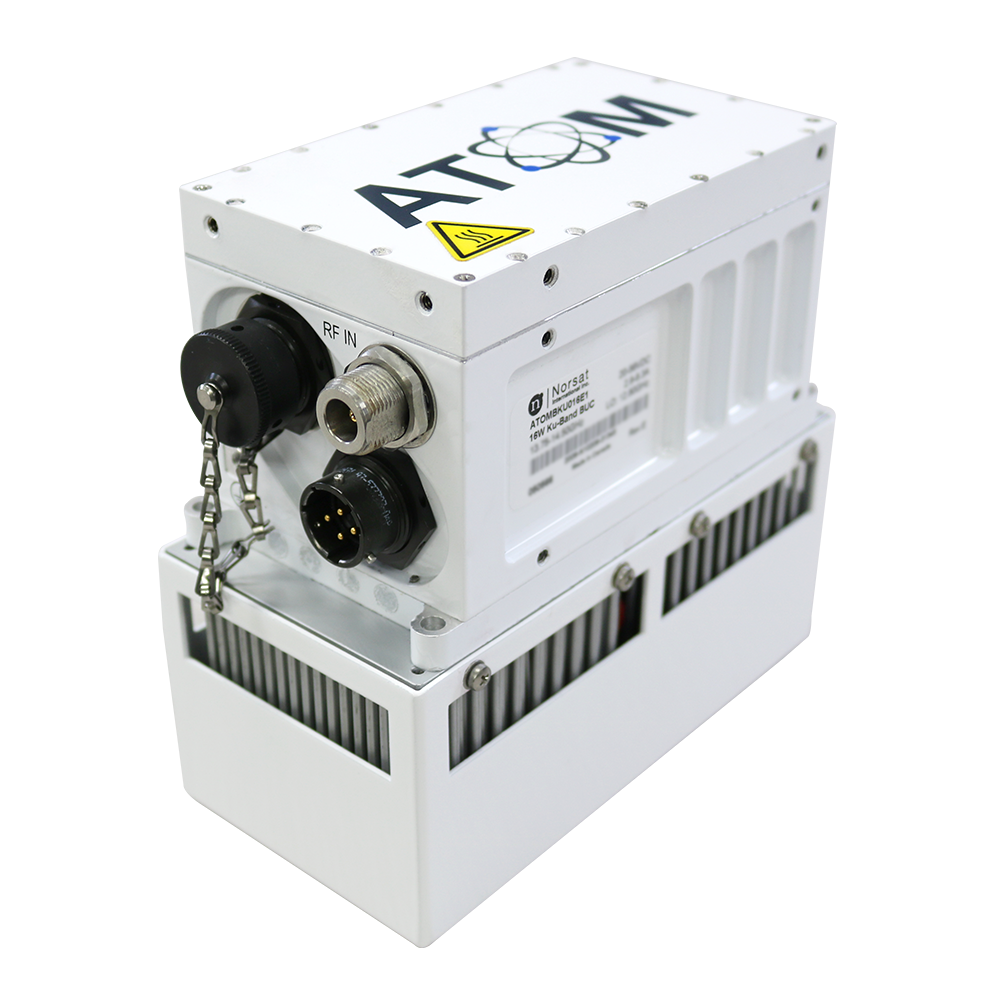

The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

band Ku-Band
band type S: Standard
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1450 MHz
LO frequency 1 13.05 GHz
Gain Flatness (over 40MHz) ≤ 2.0 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in T, -65 dBm/Hz in Tx
output power psat 43 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 100kHz offset max -92 dBc/Hz
phase noise 10kHz offset max -82 dBc/Hz
phase noise 1kHz offset max -72 dBc/Hz
phase noise 1MHz offset max -102 dBc/Hz
current consumption 210 W max.
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power requirements +18 to +56V DC
RF input connector Type N Connector (50 Ohm)
RF output connector WR-75 waveguide grooved
humidity 100% condensing
temperature operational -40 to +60°C
temperature storage -50 to +80°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)
cooling 1: Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product dimensions (LxWxH) 164 x 91 x 181 mm
product weight < 2.4 kg (5.30 lb)
optional configuration add ons F: EMI/EMC Filter
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS300-AT1-(NA/UK/EU/IEC/CN/AU)
