ATOM 50W Ka-Band BUC
ATOM 50W Ka-Band BUC
ATOM 50W Ka-Band BUC

ATOMBKA050M1B

ATOM 50W Ka-Band BUC

ATOMBKA050 Series

Regular price MSRP: $41,426.83
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!

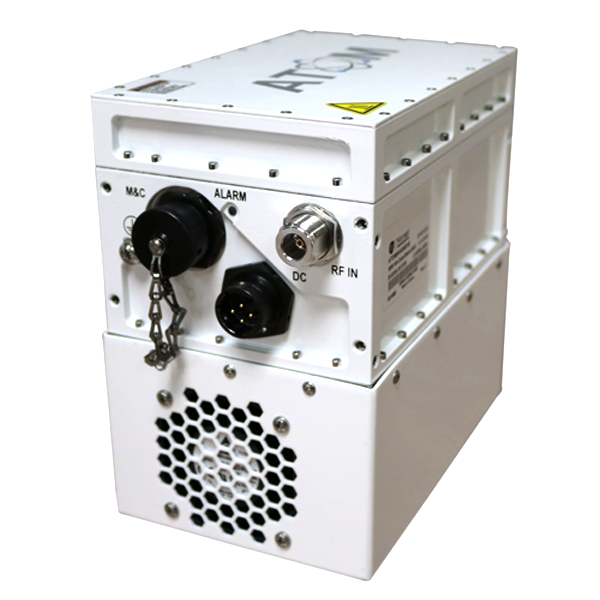

The Norsat ATOM series of block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band Ka-Band
band type M: Military
input frequency band 1 1000 - 2000 MHz
LO frequency 1 29.00 GHz
RF SPECIFICATIONS
Gain Flatness (over 40MHz) ≤ 1.0 dB p-p
Gain Flatness (over full band) ≤ 4.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.5 : 1 max.
Linear Gain 60 dB typ., 55 dB min., 65 dB max.
linear power plin 44 dBm min.
noise power density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat 47 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -60 dBc
output VSWR 1.9 : 1 max.
phase noise 100Hz offset max -66 dBc/Hz
phase noise 100kHz offset max -96 dBc/Hz
phase noise 10kHz offset max -86 dBc/Hz
phase noise 1kHz offset max -76 dBc/Hz
phase noise 1MHz offset max -106 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 580 W max.
maximum current 20 VDC 29.0A max.
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power requirements +20 to +56V DC
INTERFACE SPECIFICATIONS
RF input connector Type N Female (50 Ohm)
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40 to +60°C
temperature storage -54 to +71°C
thermal shutdown temperature 90°C (Accuracy ± 3°C)
PHYSICAL SPECIFICATIONS
cooling 1: Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector

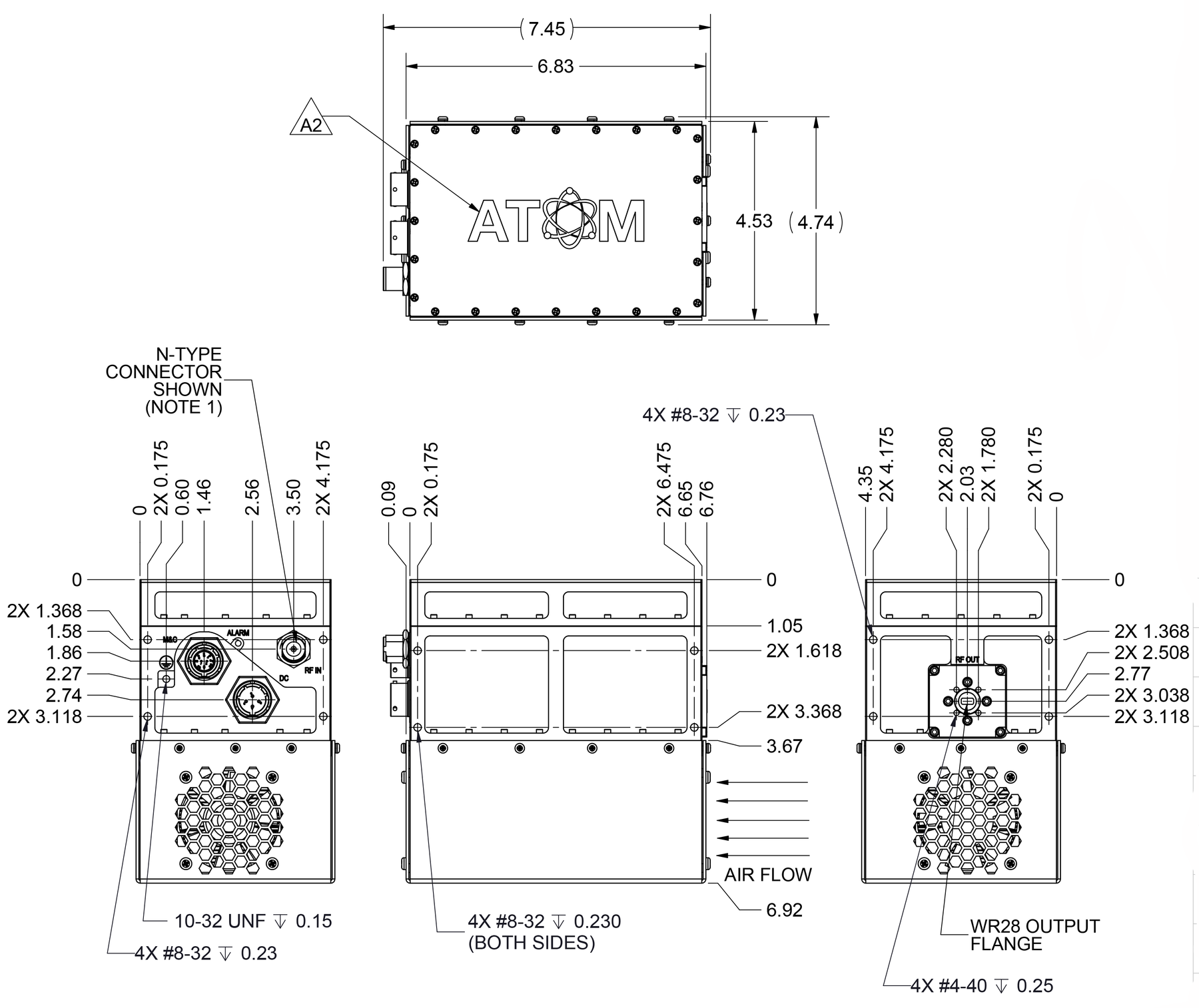

product dimensions (LxWxH) 300 x 140 x 120 mm
product weight < 3.2 kg (7.05 lb)
M and C
mute control Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled)
m and c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
m and c interface RS-485 & Ethernet
ACCESSORIES
optional configuration add ons No Add-on
optional m and c cable 10m CABLEM+C-AT10
optional power supply PS600-AT1-(NA/UK/EU/IEC/CN/AU)
