KEY SPECIFICATIONS | |
---|---|
band | Ku-Band |
input frequency band 1 | 950 - 1700 MHz |
LO frequency 1 | 12.8 GHz |
output frequency band 1 | 13.75 - 14.50 GHz |
output power rated | 4W |
Product Revision | A |
RF SPECIFICATIONS | |
---|---|
input VSWR | 2.0 : 1 |
output P1dB | 36 dBm |
output VSWR | 2.0 : 1 max. |
INTERFACE SPECIFICATIONS | |
---|---|
IF connector | N-Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
temperature operational | -40°C to +55°C |

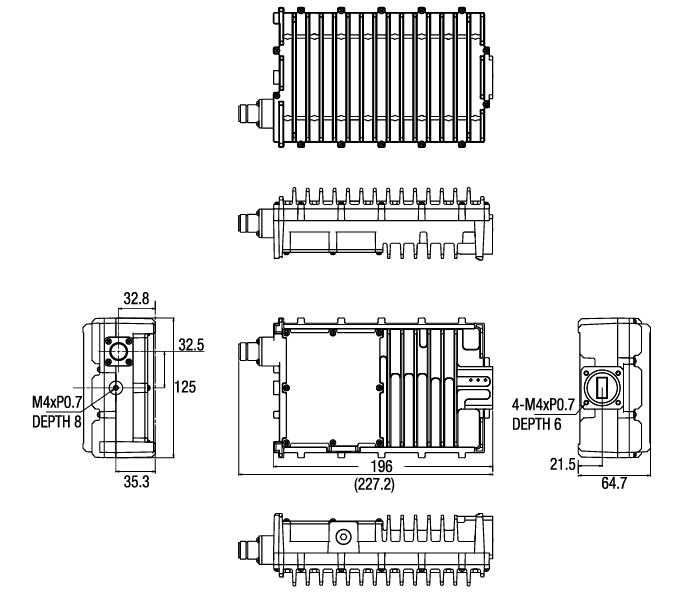

PHYSICAL SPECIFICATIONS | |
---|---|
product height | 65 mm |
product length | 228 mm |
product weight | 0.7 kg |
product width | 125 mm |
Please contact us to request any additional documents you may need.
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Japan |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 1 year |
Unit Package Dimensions | - |
Unit Package Weight | - |
Total Aluminium Content | 0.47 kg |
Aluminum Country of Smelt and Cast | - |
Total Aluminium Value | $ 1.175 |
![]() |
![]() |
![]() |
