KEY SPECIFICATIONS
band
Ku-Band
input frequency band 1
L-Band: 950 - 1700 MHz
output frequency 1
Ku-Band: 13.75 - 14.50 GHz
output power rated
8W
product family
N/A
RF SPECIFICATIONS
input VSWR
2.0 : 1
lo frequency 1
12.8 GHz (13.05 GHz)
output VSWR
2.0 : 1
ENVIRONMENTAL SPECIFICATIONS
temperature operational
-40 to +55°C

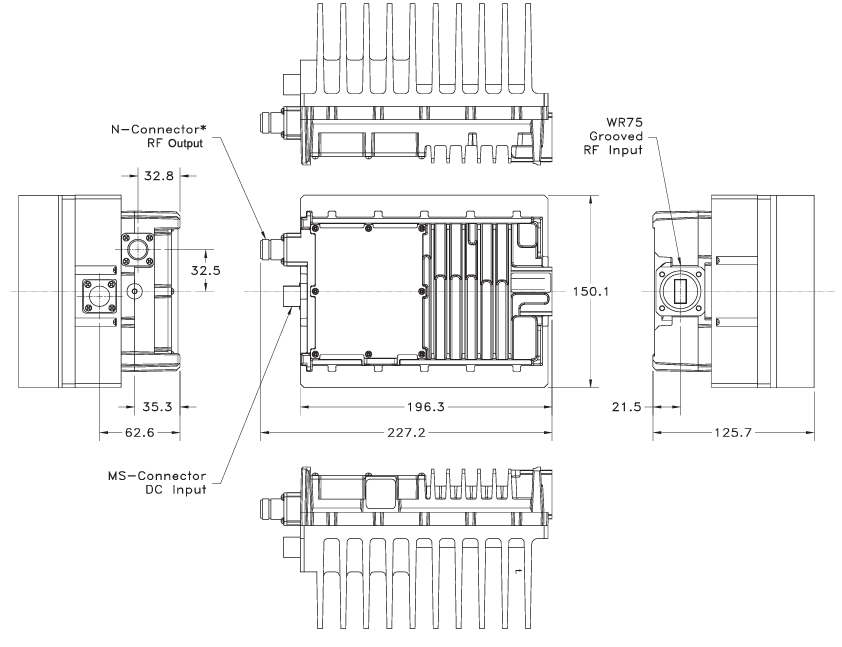

PHYSICAL SPECIFICATIONS
dimensions (LxWxH)
230 x 130 x 130 mm
INFORMATION
HS Code
851769
Country of Origin
JP
ECCN Number
N/A
Shipping Package Dimensions
N/A
Shipping Package Weight
N/A
1081XRTS-Spec-Sheet.pdf
